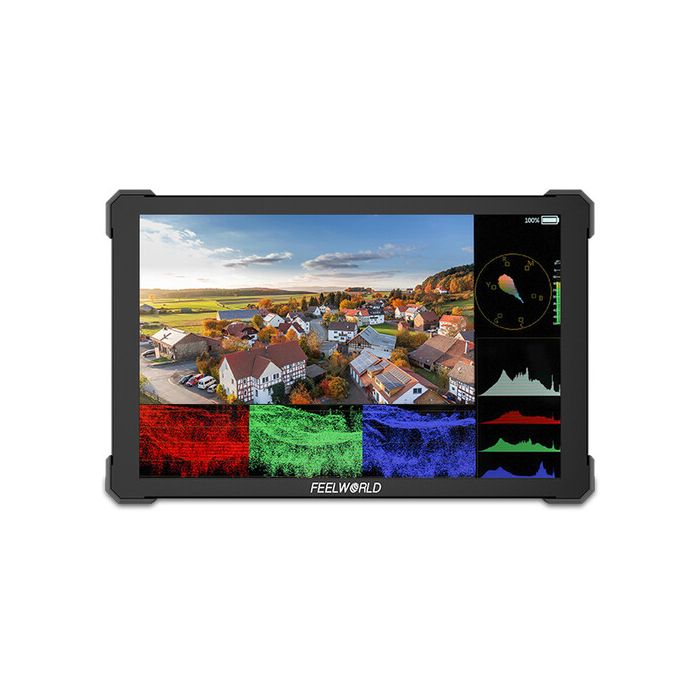

Feelworld T10 Monitor

10.1” 4K HDMI Field Monitor

FEELWORLD T10 is a 10.1-inch full HD touch monitor. Equipped with aluminium housing, lightweight and durable; support up to 4K@60Hz HDMI input and output, and provide a series monitoring and composition tools. There is a F970 external install and power kit on the rear of T10, which can install such as wireless transmission, LED light, etc. It combines the monitor with wireless transmission to get rid of unnecessary cables, which is perfect for director monitoring, 1st AC to focus pulling in the film crew. In addition, for some jib crane shooting such as large-scale event, live performance, TV program, T10 is also a good choice.

Rugged Aluminium Housing

Aluminium housing, durable and sturdy.Suitable for various shooting environment.

Protective Corners

Adopting a brand-new design featuring high-rebound rubber protection at four corners of the monitor, offering superior collision protection and shock absorption.

10.1-inch Full HD Screen

Clearly checking and capture every nuance
With extremely high resolution 10.1-inch IPS panel，provides excellent details,accurately reflect the original colors.Wide viewing clearly present more detailed image.

Sensitive Touch Screen Control

The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons.

Button Operation, More Selection

Except touch control, T10 also provides button operation. Especially the three custom shortcut buttons, the photographer can set the shortcut functions in advance according to the actual needs of the shooting site, and quickly call up the required functions during the shooting process, greatly improving the shooting efficiency.

Menu User Switch

T10 provides 4 groups menu setting saving. You can select 1~4 group after set the menu, it will save automatically, and can be called directly or switch next time.

Load Custom 3D LUTs，Preview Filming Look in Field Shooting

Supports upload 32 custom LUTs.
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. T10 allows you to load internally up to 32 custom LUTs, looks or profiles at any time via the USB and instantly select between them, maintaining creative intent, always.

HDR Monitoring

What you see is what you get.
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty，it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.

Accurate waveform monitoring

Save your budget.
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. When the function is turned on separately, you can also move its the horizontal or vertical position in Menu. T10 becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

4K HDMI Input and Output，High Speed Transmission

Equipped with 4K HDMI input and output, support up to 4096x2160/60p &3840x2160/60p signal, compatible with the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.

F970 External Install and Power Kit,Simplify your Filming Equipment

A Sony F970 external install and power kit design is added to the back of the monitor. The external kit can be used to install and install the external equipment, like wireless transmission, LED light, video converter and others that can be powered by a Sony F970 battery. This innovative external power supply design meets the need to power for external wireless transmission, LED light and other equipment, greatly saving the space occupied by the equipment and reducing the weight of filming

Flexible Power Supply,Long-lasting Power for Shooting

You can connect to DC power input to get continuous power （suitable for use 1.5A power adapter,DC 5.5*2.1mm power plug) or use the standard NP-F battery plate to install NP-F series battery for mobile application. Install one F750 battery (4400mah) last for about 3 hours. The V-mount battery plate is for optional.
Note:the battery excluding, please purchase separately.

NP-F Battery Optional Recommendation

The power consumption of T10 is 10W, and you can choose a suitable FEELWORLD NP-F battery to power it according to your shooting needs.

11 Languages Supporting

T10 built-in up to 11 languages, that means T10 is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

Multiple Mounting Points, Meet Different Need of Monitoring

The monitor is equipped with 4 standard 1/4”mounting threads (top, bottom, right side, left side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographer or director.

VESA Bracket Mount Point, More Monitoring Method

The rear of monitor with 75x75mm VESA mount points, you can mount it in rack or hang it on the wall.

Portable Sunshade

T10 attached with a sunshade, which allows the photographer to focus more on the video and avoid the interference of strong light, providing a better visual experience. The installation process is simple and fast, which is very suitable for outdoor shooting.
