Seetec WPC215 Broadcast Monitor
by SeetecThe 21.5" 4K Broadcast Carry-On Director Monitor from Seetec features a maximum resolution of 1920 x 1080 and 1000 cd/m² brightness for viewing in any lighting conditions.
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- WPC215 Broadcast Monitor
- Power Adapter
- V-Mount Battery Plate
- Mini HDMI Cable
- SDI Cable

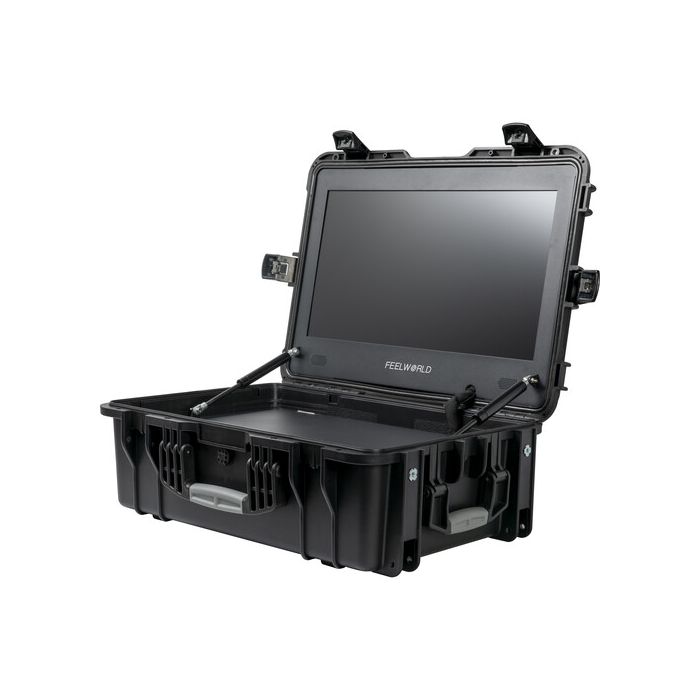

The 21.5" 4K Broadcast Carry-On Director Monitor from Seetec features a maximum resolution of 1920 x 1080 and 1000 cd/m² brightness for viewing in any lighting conditions. The rear contains one 3G-SDI input and output and two HDMI inputs and outputs. The HDMI input supports up to DCI 4K video The monitor is installed in a carry-on protective case, and it can be carried using a handle on top.
Professional monitoring tools such as waveform, histogram, focus assist, monochrome, and more are built-in for analyzing your video and ensuring a proper image. A V-mount battery plate is built into the back for powering in the field when you are away from a mains source.
| Display | |
| Panel Type | IPS-Type LCD |
| Display Size | 21.5" / 54.6 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° (89/89) |
| Vertical: 178° (89/89) | |
| Touchscreen | No |
| Maximum Brightness | 1000 nits / cd/m2 |
| Contrast Ratio | 1000:1 |
| Dot Pitch | 0.02479 x 0.02479 mm |
| HDR Compatibility | None |
| Pixels Per Inch (ppi) | 102 ppi |
| Response Time | 25 ms |
| Image Controls | Anamorphic De-Squeeze, Blue Only, Check Field, False Color, Focus Assist, Focus Peaking, Green Only, Image Rotate, Red Only, Screen Markers, Screen Split - Half, Screen Split - Quarter |
| Inputs / Outputs | |
| Video I/O | 2 x HDMI Input |
| 1 x BNC (3G-SDI) Input | |
| 2 x HDMI Output | |
| 1 x BNC (3G-SDI) Output | |
| Embedded Audio | HDMI/SDI |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | 1 |
| Power I/O | 1 x Barrel (12 VDC) Input |
| Other I/O | 1 x USB-A 2.0 Input |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
| Bluetooth | None |
| Mobile App Compatible | *As of April, 2023: Check with manufacturer for the most up-to-date compatibility |
| Format Support | |
| Video Format | HDMI |
| DCI 4K: 24 | |
| UHD 4K: 30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 576p | |
| 576i | |
| 480p | |
| 480i | |
| SDI (8-Bit) | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 1080PsF: 24/23.98 | |
| 720p: 60/59.94/50/30/29.97/25/24/23.98 | |
| Gamma Curve | Rec709 |
| Power | |
| DC Input Power | 12 VDC |
| Battery Type | 1 x V-Mount |
| Power Consumption | 32 W |
| Environmental | |
| Environmental Protection | Advertised as Dust Resistant/Moisture Resistant/Outdoor Use/Water Resistant/Weather Resistant with Included Housing |
| *Manufacturer Testing: IP67 | |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| General | |
| Material of Construction | Polycarbonate |
| Dimensions | 14.6 x 10.3 x 1.1" / 372 x 262 x 28.4 mm, Excluding |
| Weight | 32.6 lb / 14.8 kg |
