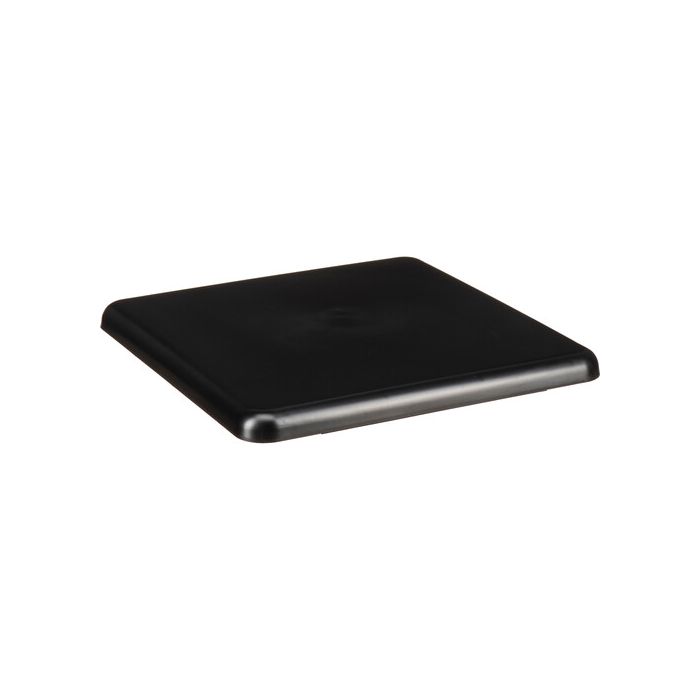

Hollyland Wireless Video Transmission Pannel Antenna

Raspoloživost: Dostupno
SKU
HO-WPN
  • Extend Wireless Range by Almost 2000'
  • Reduce Signal Interference
3.100,00 kn 2.480,00 kn

Sadržaj pakiranja

  • Hollyland Panel Antenna
  • Support Plate
  • SUS Reinforcing Pad
  • Set of M3 8mm Screw
  • 5 x NJWC-SMA Coaxial Connection Cable

Hollyland 1000X Specs

Wireless

Antenna Type

Panel

Beamwidth

40 ±5° Horizontal
40 ±5° Vertical

Polarization

3 x Vertical
2 x Horizontal

Connector

5 x Coaxial N-Type

Compatibility

Hollyland Cosmo Series

Operating Frequency

5.0 to 5.9 GHz

Gain

14 ±0.5 dBi

Maximum Power

100 W

Voltage Standing Wave Ratio (VSWR)

2.0 : 1

Front to Back Ratio

25 dB

Environmental

Operating Temperature

-40 to 131°F / -40 to 55°C

Physical

Dimensions

H: 12.00 x W: 12.00 x D: 0.98" / H: 305.00 x W: 305.00 x D: 25.00 mm

Weight

4.34 lb / 1.97 kg (with Accessories)

Packaging Info

Package Weight

4.73 lb

Box Dimensions (LxWxH)

14.8 x 14.6 x 4.3"
