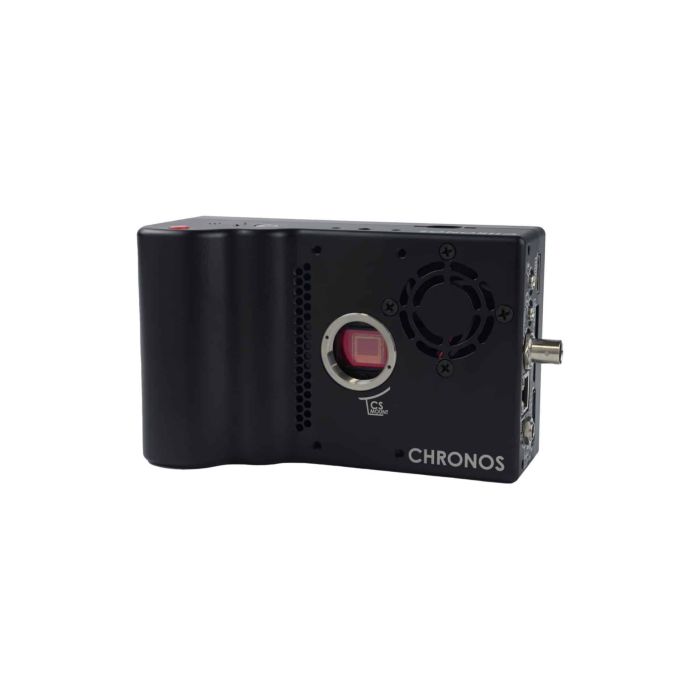

Kron Technologies Chronos 1.4 16GB Colour Sensor
by Kron TechnologiesThe Chronos 1.4 high-speed camera is a comprehensive tool, boasting high resolution and frame rates, trusted by leading R&D centers, Aerospace facilities, Universities, and Media Producers globally.
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Chronos 1.4 Camera Body
- CS-C Adapter Ring
- C Mount Dust Cap
- 2mm Allen Wrench
- 32GB SanDisk SD Card
- EN-EL4a Battery
- 19V 40W AC Adapter
- Region-specific AC Power Cord
- User Manual
Main Features
High-Resolution: 1280x1024 @ 1,069FPS (max res)
High Frame-Rate: 2/3″ format image sensor captures up to 40,413 Frames Per Second (FPS) at lower resolution.
All-in-One: Completely standalone, untethered operation with a 5″ inch touchscreen display and battery for portability.
Internal Storage: 8GB, 16GB, and 32GB RAM memory options allow for 4, 8, and 16 second recording times. Store footage via the SD card slot.
Recording Methods: Normal, Segmented, Gated Burst and Live Slow Motion offer versatile image capture options for dynamic environments.
Lens Mounting: Nikon F, Canon EF and C mounts available as field-swappable options.
Colour or Monochrome: High sensitivity ISO 320-5,120 (Colour) and 740-11,840 (Monochrome) allows filming in dynamic lighting conditions.
Trigger Options: I/O ports enable synchronization and remote triggering remotely via cable, sound, and web-triggers.
Focus Peaking: Highlights edges for quick and clear focus with zebra lines help correct exposure.
API: Open source, REST-based Application Programming Interface (API) is included for integration into custom software or control environments.
| Imaging | 1280×1024 @ 1069FPS |
| Memory | 8GB, 16GB, or 32GB |
| Record Time (in seconds) | 4 (8GB), 8 (16GB), 16 (32GB) at max resolution |
| Lens Mount | CS/C mount included (options available) |
| Backfocus | Field adjustable |
| IR Filter | 650nm, user removable, 24 x 16 x 1.1mm |
| Display | 5” 800×480 capacitive touchscreen, 1000 nit daylight visible |
| Enclosure | Anodized CNC machined aluminum |
| Cooling | Active cooling, variable-speed fan (fan-off option) |
| Dimensions | 155mm x 96mm x 67.3mm (6.11” x 3.78” x 2.65”) w/o lens |
| Weight | 1.06 kg (2.34 lbs) without lens |
| VIDEO FORMATS | |
| H.264 | Standardized MP4 files at bitrates up to 60Mbps |
| Cinema / DNG Raw | Standard Adobe CinemaDNG raw files |
| TIFF | Standard TIFF raw files with timestamps |
| Storage Devices | SD, USB, SSD, or SMB/NFS network drives |
| IMAGE SENSOR | |
| Resolution | 1280x1024p maximum |
| Speed | 1.4Gpx/s |
| Dimensions | 8.45 x 6.76mm (2/3” format, 1.3-Megapixel, 3.9x Crop Factor) |
| Pixel Pitch | 6.6um |
| Sensitivity (ISO) | Color – ISO 320 to 5120 / Mono – ISO 740 to 11840 |
| Shutter | Electronic global shutter, 1/fps to 1μs (1/1,000,000 s) |
| Dynamic Range | 9.4 stops (56.7 dB) |
| Bit Depth | 12-bit |
| BATTERY | |
| Type | EN-EL4a |
| Runtime | 1.5 hour recording |
| Charge Time | 2 hours (0-80%) with in-camera charger |
| Inputs/outputs | |
| Power Input | 17-20V 40W (5.5/2.5mm barrel jack, positive tip) |
| Network | Gigabit Ethernet |
| Trigger | 2 trigger inputs/frame strobe outputs (BNC & Aux) Adjustable input threshold 0 to 6.6V Electrically isolated trigger input (Aux connector) Trigger with sound, laser, and lightning using accessories |
| Video | HDMI output 720p or 1080p (default) @ 60FPS, video only |
| USB | USB type A (host) and micro-B (device) |
| SATA | eSATA 3Gbps to SATA 2.5” lll SSD (5V power) |
| TRIGGER MODES | |
| End Trigger | Records until a defined delay after trigger |
| Toggle | Starts and stops with button press |
| Exposure Trigger | External signal sets synchronization frame-rate |
| Shutter Gating | External signal sets the exposure synchronization and frame rate |
| Frame Sync Output | Outputs a signal indicating its frame rate and exposure |
| TRIGGER PORTS | |
| BNC | Female BNC connector |
| AUX | Phoenix 1778890 8-pin terminal block connector, including isolated trigger input. |
| SOFTWARE | |
| Control | Through web page or REST interface with USB or CAT ethernet cable |
| Stream | Live or Playback Mode network streaming via RTSP stream and VLC player. |
| APIs | HTTP REST Interface, open-source codebase |
| NETWORK CONTROL | |
| Network Control | Through web page or REST interface with USB or CAT ethernet cable |
| RECORDING MODES | |
| Normal | Records into the ring buffer. Once a trigger occurs, video can be reviewed and saved. |
| Segmented | Video memory is divided into segments, each recording as in the Normal mode above. Number of segments is user selectable. |
| Gated Burst | Frames are captured while trigger is active |
| Live Slow Motion | Short segment of video is recorded and then played back in a loop. |
| NORMAL SPEED RECORD | |
| Continuous | Video is saved continuously at up to 60FPS to MP4 files on removable storage. Operates like a standard video camera. |
| ASSISTIVE | |
| Focus Aid | Highlights sharp edges to aid focusing |
| Zebras | Rolling diagonal lines indicate clipped (overexposed) areas |
| Viewfinder Zoom | Zooms in to allow easier focusing |
| Overlay | Displays frame and time information on top of footage |
| ENVIRONMENTAL | |
| Operating Temperature | -20 °C to +40 °C (-4 °F to +104 °F) |
| Operating Temperature | -20 °C to +40 °C (-4 °F to +104 °F) |
