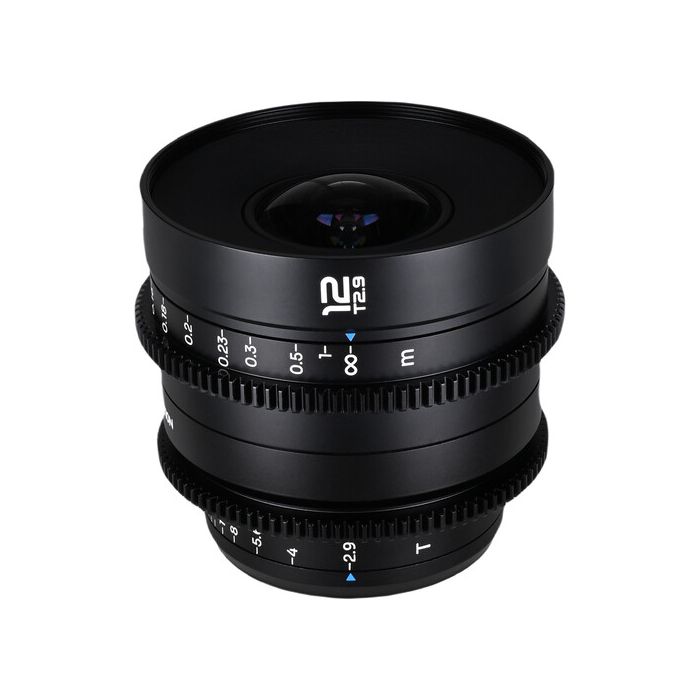

Laowa 12mm T2.9 Lite Zero-D VV Cine Lens L mount

by Laowa
Dostupnost: Isporuka 7-10 dana
SKU
VE1229VVL

Full Frame & VV | T2.9 to T22 Aperture
Zero-D Design, Low-Distortion Optics

1.991,75 € 1.593,40 €

Sadržaj pakiranja

  • Venus Optics Laowa 12mm T2.9 Lite Zero-D VV Cine Lens (Leica L)
  • Shim Set
  • Hard Case

Capture wide-angle shots using a gimbal, drone, or handheld camera rig with the Laowa 12mm T2.9 Lite Zero-D VV Cine Lens from Venus Optics. The 12mm lens can be used with Leica L mount cameras sporting full-frame or VistaVision image sensors, making it compatible with the RED RAPTOR 8K VV and the ARRI ALEXA LF Open Gate cine cameras. This version features a mirrorless design for a more compact form factor that can be used with gimbal cameras like the Ronin 4D. The lens construction consists of 16 elements in 9 groups, a 14-blade aperture, and an aperture range of T2.9 to T22.

Its compact focal length and 122° FOV ensure you don't miss any of the action. A Zero-D design consisting of low-distortion optics helps create precise framing. Close-focusing capabilities allow you to zero in on objects 5.5" away with ease. An 80mm front outside diameter and a 77mm filter thread integrate compatible lens accessories. A shim set is included for calibration, and a hard case protects and transports the lens.

Features at a Glance
  • Covers full-frame and VistaVision image sensors
  • 122° FOV, 5.5" minimum focus distance
  • 16 elements in 9 groups, 14-blade aperture
  • 77mm filter thread, 80mm front outside diameter
Focal Length 12mm
Maximum Aperture T2.9
Lens Mount L-Mount
Lens Format Coverage Full-Frame
  VistaVision
Filter Thread 77 mm
Image Stabilization No
Electronic Communication No
Maximum Aperture T2.9
Minimum Aperture T22
Lens Mount L-Mount
Lens Format Coverage Full-Frame
  VistaVision
Image Circle 43.2 mm
Angle of View Full Frame
  Horizontal: 122°
Focus Scales Metric, Imperial
Optical Design
16 Elements in 9 Groups
Filter Thread 77 mm
Minimum Focus Distance 5.5" / 14 cm
Magnification
1:4.76 Macro Reproduction Ratio

0.21x Magnification
Aperture/Iris Blades 14
Image Stabilization No
Lens Mounting No
Gear Rotation Focus: 100°
  Iris: 67.5°
Electronic Communication No
Diameter
Front: 3.1" / 80 mm
Length
Not Specified by Manufacturer
Packaging Info
Package Weight 4.89 lb
Box Dimensions (LxWxH)
11.9 x 10.4 x 7.4"
