Laowa 20mm T4.1 Zero-D Shift Cine Lens Arri PL
by LaowaFull Frame & VV | T4.1 to T22 Aperture
±11mm Shift Function
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Venus Optics Laowa 20mm T4.1 Zero-D Shift Cine Lens (ARRI PL)
- Shim Set
- Screwdriver
- Hard Case

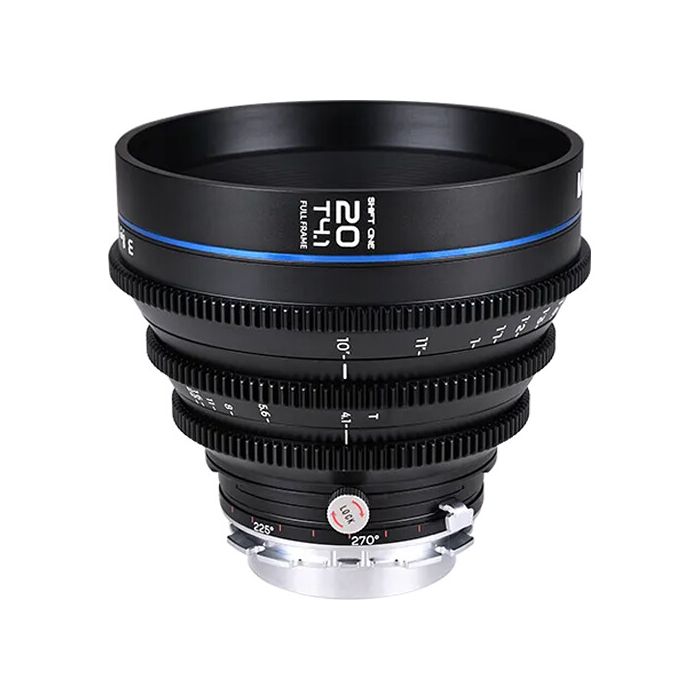

Capture wide-angle shots with the Laowa 20mm T4.1 Zero-D Shift Cine Lens from Venus Optics. The 20mm lens can be used with ARRI PL mount cameras sporting full-frame or VisaVision image sensors thanks to its 65.2mm image circle, making it compatible with the RED V-RAPTOR 8K VV, the ARRI ALEXA, and the Blackmagic URSA cine cameras. The lens features a ±11mm shift capability on VistaVision sensors, which helps cinematographers correct converging lines and maintain straight architecture/interiors.
The lens construction consists of 16 elements in 11 groups, a 14-blade aperture, and an aperture range of T4.1 to T22. Its compact focal length and 117° shifted FOV ensure you don't miss any of the action. A Zero-D design consisting of low-distortion optics helps create precise framing. Close-focusing capabilities allow you to zero in on objects 9.9" away with ease. The lenses in the series feature interchangeable lens mounts and include a shim set for calibration. Transport it all with the included hard case.
- Covers full-frame and VistaVision image sensors
- 117° shifted FOV, 94.4° regular FOV
- 9.8" minimum focus distance
- ±11mm shift on VistaVision cameras, ±9mm shift on full-frame cameras
- 16 elements in 11 groups, 14-blade aperture
- Interchangeable mount design
| Focal Length | 20mm |
| Maximum Aperture | T4.1 |
| Lens Mount | ARRI PL |
| Lens Format Coverage | Full-Frame |
| VistaVision | |
| Filter Thread | 114 mm |
| Image Stabilization | No |
| Electronic Communication | No |
| Maximum Aperture | T4.1 |
| Minimum Aperture | T22 |
| Lens Mount | ARRI PL |
| Interchangeable Mount | Yes |
| Lens Format Coverage | Full-Frame |
| VistaVision | |
| Image Circle | 65.2 mm |
| Angle of View | Full Frame |
| Horizontal: 117° | |
|
Horizontal: 94.4°
|
|
| Focus Scales | Metric, Imperial |
| Optical Design |
16 Elements in 11 Groups
|
| Filter Thread | 114 mm |
| Minimum Focus Distance | 9.8" / 25 cm |
| Aperture/Iris Blades | 14 |
| Image Stabilization | No |
| Lens Mounting | No |
| Gear Standard | MOD |
| Gear Rotation |
Not Specified by Manufacturer
|
| Electronic Communication | No |
| Diameter | 4.5" / 114 mm |
| Length | 3.9" / 100 mm |
| Weight | 2.58 lb / 1.17 kg |
| Packaging Info | |
| Package Weight | 9.465 lb |
| Box Dimensions (LxWxH) |
14.3 x 11.8 x 9.1"
|
