Lilliput 12G-SDI Signal Generator

by Lilliput
Dostupnost: Isporuka 7-10 dana
SKU
LIL-12G-SG

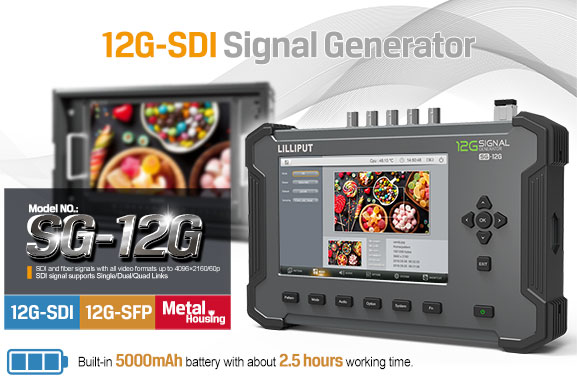

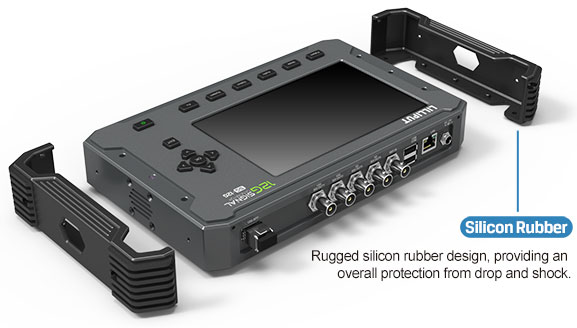

Built-in 5000mAh battery with about 2.5 hours working time – Support 12-SDI Fiber Signals
12G-SDI signal 4K 60/59.94p YCbCr 4:2:2 10 bits – Supports ITU-R BT.2020
Reference input support (Internal synchronization / external synchronization selectable)
12G-SDI Single-Link 4K 60/59.94p YCbCr 4:2:2 10 bits (SMPTE 2082-10)
6G-SDI Single-Link 4K 30/29.97p YCbCr 4:2:2 10 bits (SMPTE 2081-10)

5.392,00 € 4.313,60 €

Sadržaj pakiranja

  • Lilliput 12G-SDI Signal Generator

Pattern Measurement


To test color temperature and grayscale of monitor with various types of patterns, such as color bar,

monochrome display, and customized pictures.

Preset & importable patterns

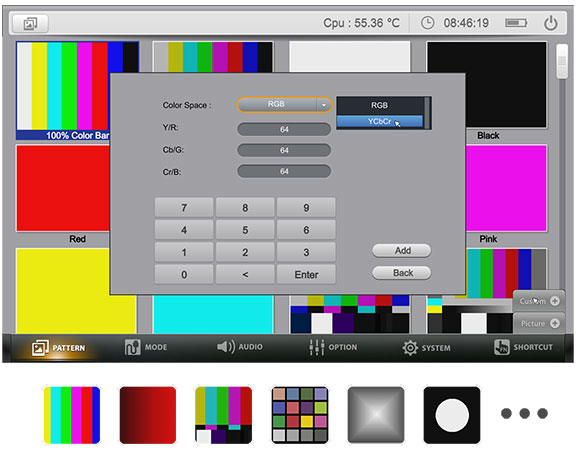

Custom: Free to create any color picture, based on two different color space -- RGB or YCbCr.

Picture: Built-in plenty of preset patterns, and user-definable pictures imported to the generator to meet various test requirements.

Signal Compatibility

Supports SD, HD, 3G, 6G and 12G-SDI signals;

SDI and Fiber signals up to 4K 60Hz. SDI conversion among of different link structures, SQ and 2SI.

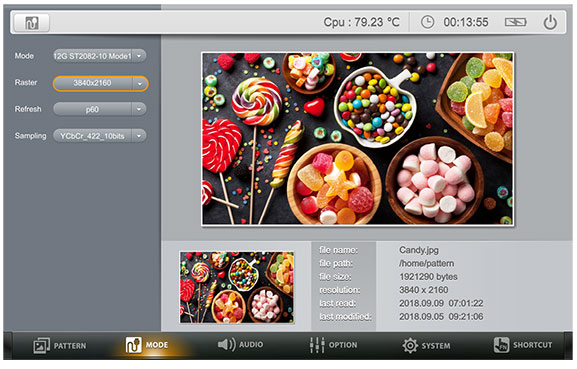

Mode Options: Selection among of 12G-SDI/6G-SDI/3G-SDI/HD-SDI/SD-SDI signal formats.

Raster Options: Different resolutions options corresponding to different Modes.

Refresh Options: Different Raster rates corresponding to different Modes & Raster.

Sampling Options: Different GBR & YCbCr sampling rates based on the above options.

Audio Monitoring

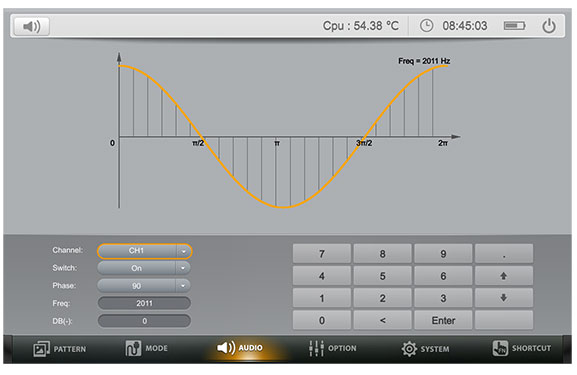

A comprehensive audio monitoring tool supports up to 16 channels embedded AES/EBU audio,

with -60dB to 0dB range. And a 20 to 20000 frequency.

Channel Options: 16-channel SDI audio ranges from CH0 to CH15 for optional.

Switch Options: Off, On, All Off and All On are optional for 16-channel audio switch.

Phase Options: Options among of 0, 90, 180 and 270 for phase.

Frequency Options: Freq options can be customized from 20 to 20000 by users.

DB(-) Options : Freq options can be customized from -60bB to 0dB by users.

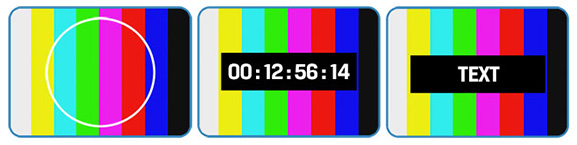

Ring Type: Ring type for optional under Overlay function.

Frame Counter Type: Frame counter type for optional under Overlay function.

Character Type: Character type for optional under Overlay function.

Text input will be displayed based on the specific X and Y axis that can be preset.

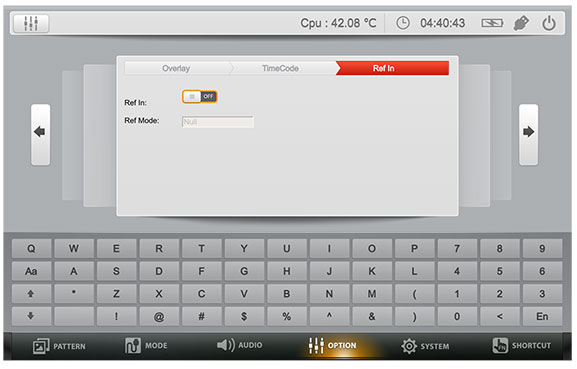

Ref In: Ref In used for frame synchronization to ensure input & output frames simultaneously.

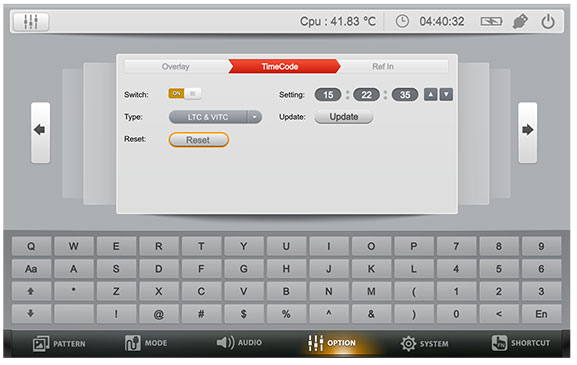

Time Code: Supports Linear time code(LTC) and Vertical interval time code(VITC).

Ring Type: Ring type for optional under Overlay function

FN (Shortcut)

User-definable functions as shortcuts with great convenience.

Function Shortcut: Supports more than one hundred shortcut functions.

For time-saving and high efficiency when testing, users can manage shortcut functions through Add, Del, Replace and Output operations.

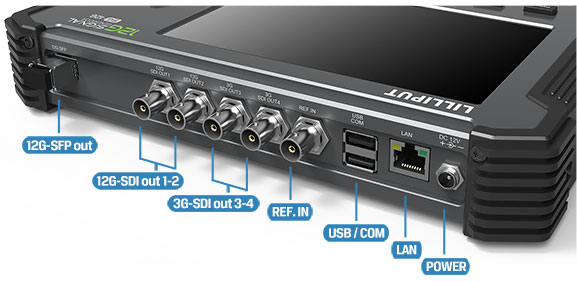

12G-SFP OUT: Support 12G-SDI fiber signals (Optional Module).

12G-SDI output×2: It supports single/dual/quad-link signal outputs, and backward compatible with 6G-SDI,

3G-SDI, HD-SDI & SD-SDI signals.

3G-SDI output×2: It supports 3G-SDI signal outputs, and backward compatible with HD-SDI & SD-SDI signals.

USB: USB used for external devices, such as USB flash disk, mouse and keyboard, etc.

DISPLAY
  Display Screen   7”  IPS
  Physical Resolution   1280×800
  Aspect Ratio   16:10
  Brightness   400cd/m²
  Contrast   800:1
  Viewing Angle   178°/178°(H/V)
OUTPUT
  12G-SDI   2
  3G-SDI   2
  FIBER   1 (Optional Module)
INPUT
  REF   1
  USB   2
POWER
  Current   2.3A (12V)
  Input Voltage   DC 10-15V (XLR)
  Power Consumption   ≤27W
  Built-in Battery   5000mAh
ENVIRONMENT
  Operating Temperature   -10 +60
  Storage Temperature   -30 +70
DIMENSION
  Dimension(LWD)   264×169×42mm
  Weight   3kg
12G-SDI Format
  GBR   4:4:4   10bits   23.98p/24p/25p/29.97p/30p
  GBR+A 4:4:4:4   10bits   23.98p/24p/25p/29.97p/30p
  YCbCr 4:4:4   10bits   23.98p/24p/25p/29.97p/30p
  YCbCr+A 4:4:4:4   10bits   23.98p/24p/25p/29.97p/30p
  GBR   4:4:4   12bits   23.98p/24p/25p/29.97p/30p
  YCbCr 4:4:4   12bits   23.98p/24p/25p/29.97p/30p
  YCbCr 4:2:2   12bits   23.98p/24p/25p/29.97p/30p
  YCbCr 4:2:2   10bits   47.95p/48p/50p/59.94p/60p
6G-SDI Format
  YCbCr   4:2:2   10bit   23.98p/24p/25p/29.97p/30p
  GBR     4:4:4   10bit   47.95p/48p/50p/59.94p/60p
  GBR+A   4:4:4:4   10bit   47.95p/48p/50p/59.94p/60p
  YCbCr   4:4:4   10bit   47.95p/48p/50p/59.94p/60p
  YCbCr+A 4:4:4:4   10bit   47.95p/48p/50p/59.94p/60p
  GBR     4:4:4   12bit   47.95p/48p/50p/59.94p/60p
  YCbCr   4:4:4   12bit   47.95p/48p/50p/59.94p/60p
  YCbCr   4:2:2   12bit   47.95p/48p/50p/59.94p/60p
3G-SDI/HD-SDI/SDI Format
  Backward compatible   Backward compatible
