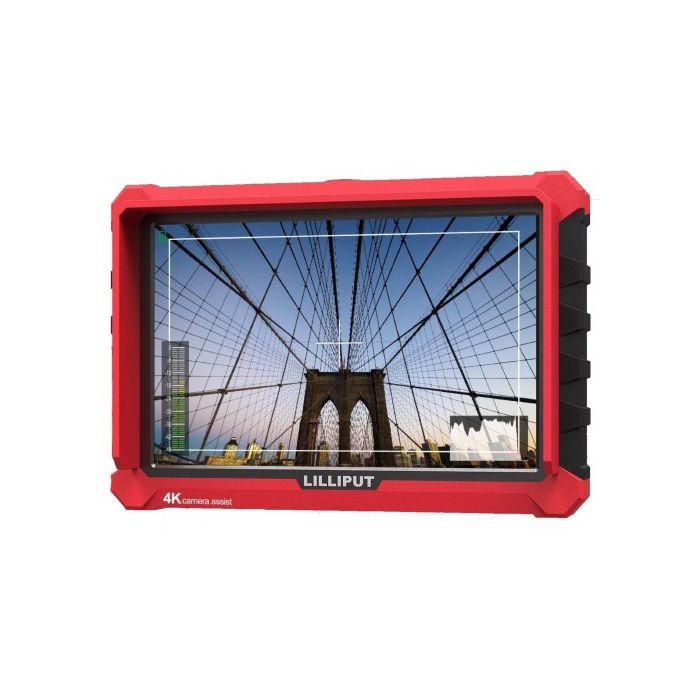

Lilliput A7S Monitor

by Lilliput
Dostupnost: Dostupno
SKU
LIL-A7S

The Lilliput A7s is the first Lilliput monitor to feature 4K inputs at the 7" screen size.

172,50 € 138,00 €

Sadržaj pakiranja

  • Lilliput A7S 7" Full HD Monitor with 4K Support
  • Sony F-970 Type Battery Plate
  • Shoe Mount Adapter
  • HDMI cable
  • Sunhood

The Lilliput A7s is the first Lilliput monitor to feature 4K inputs at the 7" screen size. It's UHD 4K compatible with 16:9 Aspect Ratio LCD field monitor which presents its images on a Full HD 1920x1200 LCD panel. If you're a mobile shooter who has upgraded to the 4K workspace, the A7s offers control over your shooting workflow both in the field and in the studio.


7" HDMI Monitor with Widescreen Aspect Ratio

The Lilliput A7s features our first full HD native panel, clocking in at 1920 x 1200. Much improved over its predecessors, this high resolution will give you the clearest view of your images without the need for down sampling or interpolation.

4K HDMI Loopthrough Output

The A7s features an HDMI loop through function - meaning you can connect the output of this monitor via HDMI to any other device with an HDMI input. A great solution for Video Village and extended screen viewing.

Function Mapping to Individual Keys

The A7s has two customisable function keys - meaning you can program them to allow for a shortcut through to your favourite and most used in-monitor functions, without needing to scroll through comprehensive menus.

Advanced Monitor Functionality

As detailed at the top of this description page, the A7s has a plenitude of advanced functions to assist with your shooting. Namely - Timecodes, Columnar YRGB, Pixel Zoom Function, Vector Scopes, Audio Level Meters, Peaking, False Colour, Histograms, Exposures, Check Fields, Color Bars, Pixel to Pixel, and Image flips. A host of functions for a multi faceted monitoring solution.

Battery Plate System for Compatible DSLR Batteries

We supply the monitor with a battery plate compatible with the Sony F-970 type battery, however also available are plates for the Canon LP-E6, the Sony QM91D and the Panasonic DU21. For an addition charge we can supply a V-Mount battery plate, or an Anton Bauer plate.

1/4" BSW Thread Holes, with Shoe Mount Adaptor

There are two options for mounting this monitor - the most common is the Shoe Mount adaptor which screws into a 1/4" BSW threaded hole at the bottom of the monitor and then clips into the shoe mount on top of your camera. Alternatively, you can use the VESA 75 mounting hole set in the back to attach the monitor to a sturdier mount if needed

Audio

Speaker 1x Speaker (c. 1W) 1x Earphone Slot
Display
Aspect Ratio 16:10
Brightness 500 cdm²
Contrast Ratio 1000:1
Viewing Angle 170° x 170° (H/V)
Environment
Operating Temperature -20°c to 60°c
Storage Temperature -30°c to 70°c
HDMI Video Input
HDMI Video Input 1x HDMI 2.0 (Compatible with UHD 4K 3840 x 2160)

Power

Current 1A
Input Voltage DC 7-24V
Power Consumtion ≤ 12W
Monitor Specification
Screen Size (diagonal) 7" IPS
Native Resolution 1920 x 1200 (Compatible with UHD 4K 3840 x 2160)
HDMI Output
HDMI Video Output 1x HDMI 2.0

Contents Of Box

Product 1 x A7s Monitor
Connection Cables 1 x HDMI A/C cable
Mounts and stands 1 x Hot Shoe Mount
Additional accessories 1 x Folding sun shade 1 x Silicon rubber case 1 x Battery plate (F970)

Dimensions

Height (mm) 124 mm
Width (mm) 182.1 mm
Depth (mm) 20.5mm
Weight (g) 320g
