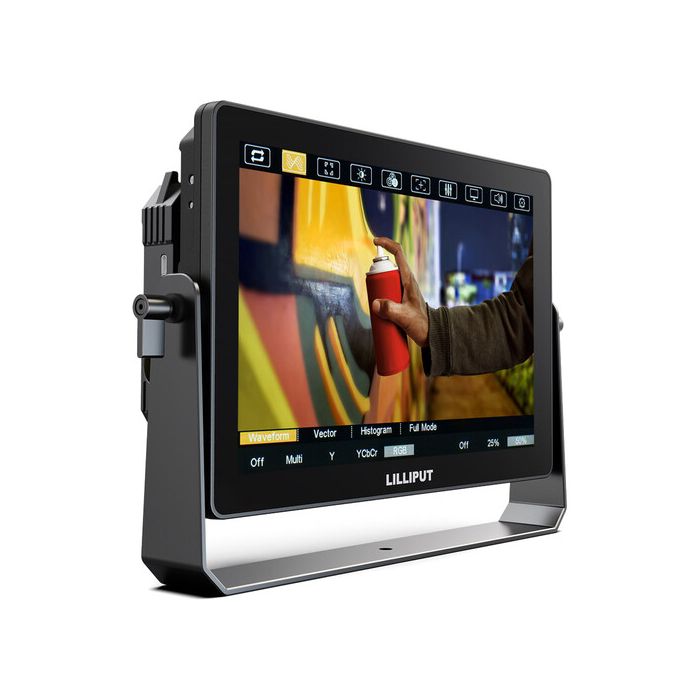

Lilliput HT10S Monitor

by Lilliput

Dostupnost: Isporuka 7-10 dana

SKU

LIL-HT10S

10.1" 1920 x 1200 Touchscreen Display
Auto-Dimming, HDR & 3D LUT Support
3G-SDI & HDMI 2.0 Inputs
HDMI Input up to 4K60, SDI up to 1080p60

448,75 € 359,00 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

Lilliput HT10S Monitor
LANC Cable
Adjustable Shoe Mount
HDMI Type A to Type D Cable (31.5")
Sun Hood
L-Series Battery Plate

Opis

Input, pass through, and display 4K and Full HD on this HT10S 10.1" High-Bright 1500 cd/m² On-Camera Touchscreen Monitor from LILLIPUT. With a high 1500 cd/m² maximum brightness and an auto-dimming function, you can use this monitor on exterior shoots with or without the included sun hood, as well as on interior shoots. The touchscreen monitor supports HDMI 2.0 input/output up to UHD 4K60 and 3G-SDI input/output up to 1080p60.

The monitor supports 170° H/V viewing angles for good color and contrast, even when viewed from off-center. The monitor powers using the included L-series battery plate or via a separately available DC power adapter or optional V-mount battery plate. The included LANC cable provides the ability to control the record, focus, iris, and zoom on a LANC-enabled camera directly from the touchscreen display UI.

Specifikacije

Display
Panel Type	LCD
Display Size	10.1" / 25.6 cm
Resolution	1920 x 1200
Aspect Ratio	16:10
Viewing Angle	Horizontal: 170°
	Vertical: 170°
Touchscreen	Yes
Maximum Brightness	1500 nits / cd/m2
Contrast Ratio	1000:1
HDR Compatibility	Hybrid Log Gamma
Pixels Per Inch (ppi)	224 ppi
Real-Time LUT Monitoring	HDR
Image Controls	False Color, Focus Peaking, Histogram, Pixel Zoom, Pixel-to-Pixel Zoom, Vectorscope, Waveform, Zebra
Inputs / Outputs
Video I/O	1 x BNC (3G-SDI) Input
	1 x HDMI 2.0 Input
	1 x BNC (3G-SDI) Output
	1 x HDMI 2.0 Output
Embedded Audio	HDMI
Audio I/O	1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	1
Power I/O	1 x Barrel Input
Media/Memory Card Slot	None
Wi-Fi	None
Bluetooth	None
Mobile App Compatible	*As of November, 2022: Check with manufacturer for the most up-to-date compatibility
Format Support
Video Format	HDMI
	UHD 4K: 60/50/30/25/24
	1080p: 60/50/30/25/24
	1080i: 60/50
	720p: 60/50
	SDI
	1080p: 60/50/30/25/24
	1080PsF: 30/25/24
	1080i: 60/50
	720p: 60/50
Gamma Curve	DCI-P3, Rec709
Video Standard Compliance	SMPTE ST-2084
Power
DC Input Power	7 to 24 VDC
Battery Type	1 x L-Series (Interchangeable Mount)
Power Consumption	23 W (Maximum)
Environmental
Operating Temperature	32 to 122°F / 0 to 50°C
Storage Temperature	-4 to 140°F / -20 to 60°C
General
Material of Construction	Metal
Dimensions	9.9 x 6.7 x 1" / 251 x 170 x 26.5 mm
Weight	1.9 lb / 850 g
Packaging Info
Package Weight	4.29 lb
Box Dimensions (LxWxH)	12.7 x 8.5 x 4.2"
