Lilliput Q5 Monitor

Raspoloživost: Dostupno
SKU
LIL-Q5

Lilliput's 1920 x 1080 LCD screen packs 401 pixels-per-inch for seamless viewing of Full HD signals. HDMI and SDI inputs on the rear are compatible with DSLRs, mirrorless cameras, and professional camcorders.

Normalna cijena 3.550,00 kn Posebna cijena 3.266,00 kn 2.612,80 kn

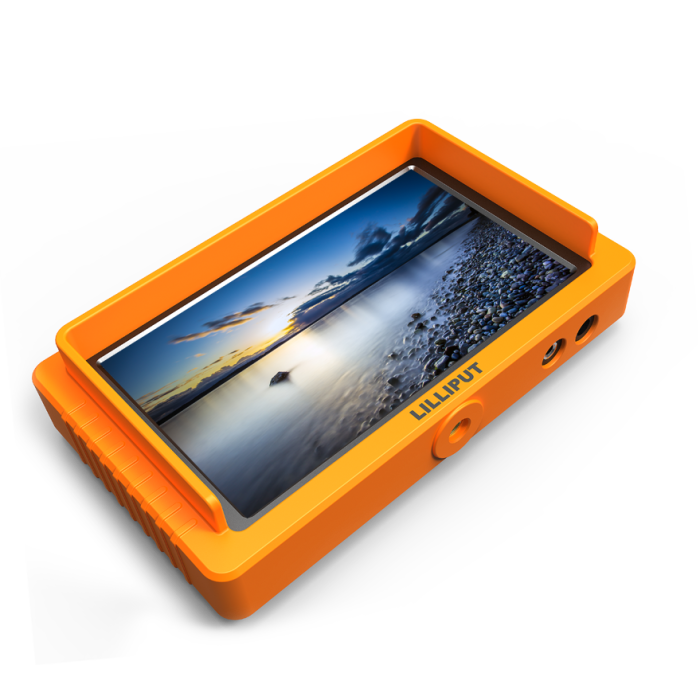

Compact, yet fully featured, Lilliput's Q5 5.5" Full HD On-Camera Monitor is designed to take on almost any production. The 1920 x 1080 LCD screen packs 401 pixels-per-inch for seamless viewing of Full HD signals. HDMI and SDI inputs on the rear are compatible with DSLRs, mirrorless cameras, and professional camcorders. HDMI and SDI signals can even be cross converted to ensure compatibility with a wide range of workflows.

NP-F and LP-E6 battery plates are included, and other types of plates are separately available. NP-F and LP-E6 batteries are widely available and are used on many cameras and camcorders, so you should never be without power. When shooting outdoors, the included sun hood makes the screen easier to see by blocking any glare. Lastly, an included articulating shoe mount allows you to secure the Q5 to your camera via a standard accessory shoe and position it after-the-fact.

Full HD Display
The Full HD display on the Q5 enables a 1080p signal to be viewed natively. Monitoring for critical focus on HD productions is a straightforward process, with no "punching in" and losing your original framing. A 1000:1 contrast ratio, 8-bit color depth, and 450 cd/m² brightness offer a high-quality viewing experience.
Durable Construction
While the unit itself is manufactured from metal, a silicone rubber bumper is included. The bumper prevents scuffing and other damage that may occur from drops or bumps that are too often known during life on set. It even has a small built-in, unobtrusive sun hood which can be mounted directly on top of the bumper in especially bright conditions.
HDMI/SDI Cross Conversion
Take the Q5 on nearly any gig, ranging from low-budget to professional with the built-in HDMI/SDI cross conversion. HDMI signals can be converted to SDI and vice versa, ensuring that the Q5 is compatible with almost any digital video equipment, from consumer to broadcast-grade.
Monitoring Tools
Analyze the incoming video signal with built-in video monitoring tools to achieve correct exposure, focus, and color balance. Built-in functions include:
  • Timecode display
  • YRGB column
  • Pixel-to-pixel mapping
  • Vectorscope
  • Waveform
  • Audio level meters
  • Focus peaking
  • False color
  • Histogram
  • Zebra
  • R/G/B only
  • Color bars
  • Image flip
DISPLAY
  Display Screen   5.5" IPS 8bits
  Physical Resolution   1920×1080 (401ppi)
  Aspect Ratio   16:9
  Brightness   450cd/m2
  Contrast   1000:1
  Viewing Angle   160°/160°(H/V)
INPUT
  3G-SDI   1
  HDMI   1
OUTPUT
  3G-SDI   1
  HDMI   1
AUDIO
  Speaker   1
  Ear Phone Slot   1
SDI FORMAT
  SMPTE-125M   480i(59.94)
  1080i(60/59.94/50)
  1080p(30/29.97/25/24/24sF/23.98/23.98sF)
  SMPTE-292M   1080p(30/29.97/25/24/24sF/23.98/23.98sF)
  SMPTE-296M   720p(60/59.94/50/30/29/25/24/23.98)
  SMPTE-372M   720p(60/59.94/50)

1080i(29.97/25/24/23.98)
  1080p(60/59.94/50/30/29.97/25/24/23.98)
  SMPTE-425M-AB   1080p(60/59.94/50)
  -Level A & Level B   720p(60/59.94/50/30/29.97/25/24/23.98)
  Level B 2x   1080i(60/59.94/50)
  ITU-R BT.656   576i(50)
HDMI FORMAT
  Full HD ~ SD   1080p, 1080i, 720p, 576p, 576i, 480p, 486i
POWER
  Current   1A
  Input Voltage   DC 7-24V
  Battery Plate   F970 / QM91D / DU21 / LP-E6
  Power Consumption   ≤12W
ENVIRONMENT
  Operating Temperature   -20℃~60℃
  Storage Temperature   -30℃~70℃
DIMENSION
  Dimension(LWD)   154.5x90x20mm / 157.5x93x23mm (with case)
  Weight

  320g / 340g (with case)
