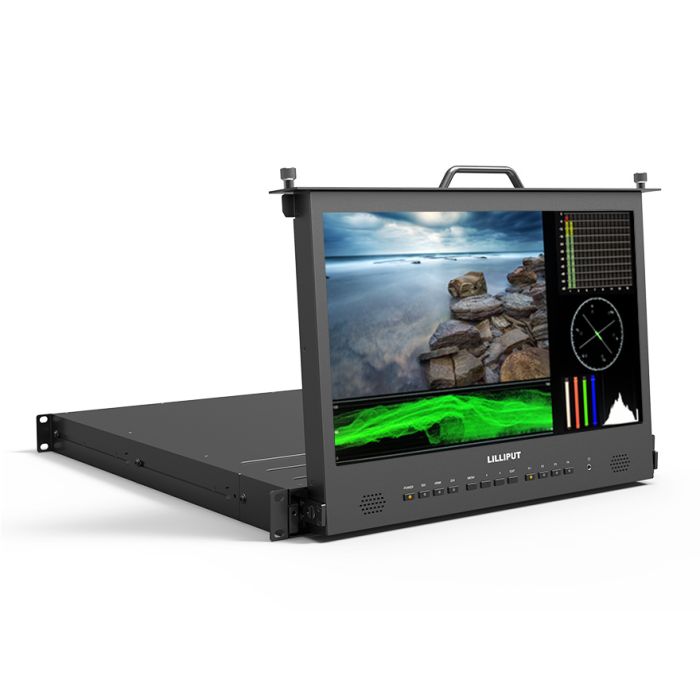

Lilliput RM-1730S Monitor
by Lilliput
Dostupnost:
Isporuka 7-10 dana
SKU
LIL-RM-1730S
LILLIPUT RM-1730S 17.3" Full HD 3G-SDI/HDMI Pullout Rackmount Monitor features a 16:9 IPS panel and offers a maximum resolution of 1920 x 1080p60.
1.498,75 €
1.199,00 €
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
The LILLIPUT RM-1730S 17.3" Full HD 3G-SDI/HDMI Pullout Rackmount Monitor features a 16:9 IPS panel and offers a maximum resolution of 1920 x 1080p60. It offers a brightness rating of 300 cd/m2, contrast ratio of 700:1, and viewing angles of 178°. The monitor comes with a host of functions including cross conversion, timecode, pixel zoom, vectorscope, waveform, level meter, peaking, false color, histogram, exposure, check field, color bars, and Image flip. Its 1 RU design allows it to be easily integrated into a studio or post-production rackmount setup.
- Metal housing with pullout drawer for protection from shocks and drops
- Monitor powers off automatically when screen is down and pushed in
- Signal cross conversion from SDI to HDMI, and from HDMI to SDI out
- Supports various methods of mounting for use in broadcast, on-site monitoring, and live broadcast vans
- 1 RU rackmount design
|
DISPLAY
|
Display Screen | 17.3" IPS |
|---|---|---|
| Physical Resolution | 1920×1080 | |
| Aspect Ratio | 16:9 | |
| Brightness | 300cd/m2 | |
| Contrast | 700:1 | |
| Viewing Angle | 178°/178°(H/V) | |
|
INPUT
|
3G-SDI | 1 |
| HDMI | 1 | |
| DVI | 1 | |
| AUDIO | 2 (L/R) | |
| TALLY | 1 | |
|
OUTPUT
|
3G-SDI | 1 |
| HDMI | 1 | |
|
AUDIO
|
Speaker | 2 |
| Ear Phone Slot | 1 | |
|
SDI FORMAT
|
SMPTE-125M | 480i(59.94) 1080i(60/59.94/50) 1080p(30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE-292M | 1080p(30/29.97/25/24/24sF/23.98/23.98sF) | |
| SMPTE-296M | 720p(60/59.94/50/30/29/25/24/23.98) | |
| SMPTE-372M | 720p(60/59.94/50) 1080i(29.97/25/24/23.98) 1080p(60/59.94/50/30/29.97/25/24/23.98) |
|
| SMPTE-425M-AB -Level A & Level B |
1080p(60/59.94/50) 1080i(60/59.94/50) 720p(60/59.94/50/30/29.97/25/24/23.98) |
|
| ITU-R BT.656 | 576i(50) | |
|
HDMI FORMAT
|
Full HD ~ HD | 1080p, 1080i, 720p, 576p, 576i, 480p, 486i |
|
POWER
|
Current | 2.8A |
| Input Voltage | DC 10-18V | |
| Power Consumption | ≤32W | |
|
ENVIRONMENT
|
Operating Temperature | -20℃～60℃ |
| Storage Temperature | -30℃～70℃ | |
|
DIMENSION
|
Dimension(LWD) | 482.5×44×507.5mm |
| Weight | 8.6Kg |
