Magewell Pro capture AIO 4K card

Raspoloživost: Isporuka 7-10 dana
SKU
111700000

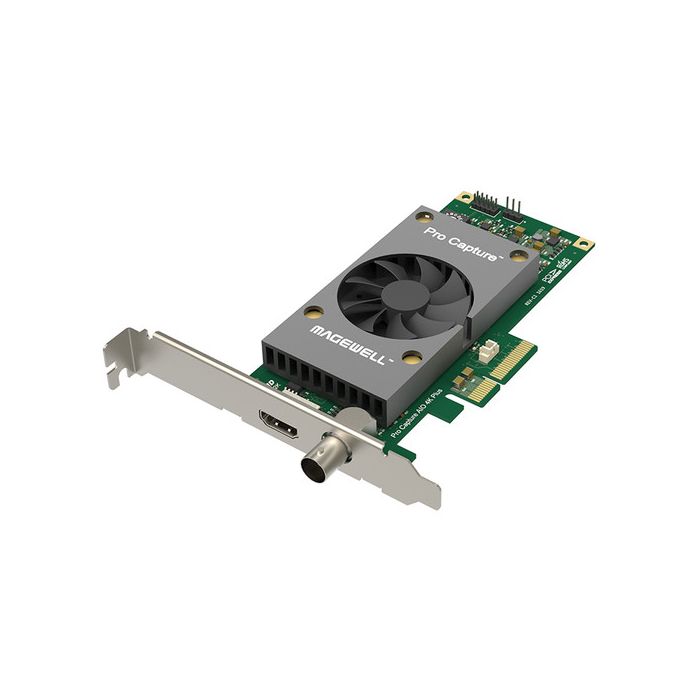

The Pro Capture AIO 4K Plus Capture Card from Magewell is a low-profile PCIe x4 add-on card that allows for capturing a single channel of SDI + embedded audio and HDMI + embedded audio.

5.475,00 kn 4.380,00 kn

Sadržaj pakiranja

  • Magewell Pro Capture AIO 4K Plus Capture Card (1-Channel)
  • Low Profile Bracket
  • Limited 1-Year Warranty

The Pro Capture AIO 4K Plus Capture Card from Magewell is a low-profile PCIe x4 add-on card that allows for capturing a single channel of SDI + embedded audio and HDMI + embedded audio.

The card supports extraction of audio formation information and channel status data, video timing information, 3D format information, and Sony/Canon DSLR timecode.

It is also capable of performing various video processing features, including cropping, scaling, deinterlacing, aspect ratio conversion, color format conversion, video frame rate conversion, and video OSD composition.

Input Features
  • Supports auto-scanning of video input sources when there is no signal input to the currently selected input source as well as manual selection of video input source
  • Supports auto as well as manual selection of linked (embedded) audio input source when the video input source changes
  • Supports standard crossbar based on video input source selection
  • Supports input video resolutions up to 4096 x 2160 pixels

HDMI Features

  • 594 MHz HDMI receiver
  • Adaptive HDMI equalizer
  • Supports customized EDID
  • Supports extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
  • Full colorimetry support
  • Supports 8/10/12-bit color depths
  • Supports RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
  • Supports up to 8-channel IEC60958/IEC61937 audio streams
  • Supports side-by-side half, top-and-bottom, frame packing 3D mode

SDI Features

  • Integrated cable equalizer supporting cable lengths up to 755' for HD signals
  • Supports SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards
  • Supports 2K (2048 x 1080) mode
  • Supports RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
  • Supports 10/12-bit color depth
  • Supports extraction of SMPTE 352 payload identifier
  • Supports up to 8 (mono) audio channels at 48 kHz (channels 1 to 8 from the 16 available in the SDI spec)
  • Supports extraction of audio formation information and channel status data
  • Limited support of 3Gb-DS (only the first stream can be captured)
  • Limited support for capture of the first link of dual link interfaces (YCbCr 4:2:2 10-bit 1080p 50/59.94/60 is captured as 1080i 50/59.94/60; YCbCr 4:4:4 10-bit is captured as 4:2:2; RGB 4:4:4: R/B sub-sampled)

Video Processing Features

  • Two video processing pipelines with 720 MP/s processing bandwidth
  • Full 10-bit video processing
  • Wave, blend top and bottom field, top field only, and bottom field only deinterlacing modes
  • Auto or manual selection of input and output aspect ratio
  • Three aspect ratio conversion modes (ignore (anamorphic), cropping or padding (letterbox or pillarbox))
  • Auto or manual selection of input color format and quantization range
  • Auto or manual selection of output color format, quantization range, and saturation range
  • Supports RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
  • Supports limited or full quantization range
  • Supports limited, full, and extended gamut saturation range
  • Supports PNG OSD image (up to 2048 x 2048)
  • Supports dynamic loading of RGBA OSD image via SDK

Multiple Cards Per System

  • Supports multiple cards in one system
  • On-board rotary switch to set card number, with 16 positions from 0 to F
  • System hardware device tree will display 01: Pro Capture AIO when rotary switch is set to 1, and so on
  • The video and audio device names displayed in your software will include the card number (set by the rotary switch)

Video Output SG-DMA

  • Supports auto detection of Intel tiled GPU surface
  • Supports DirectGMA for AMD video adapter chipsets
  • Supports GPUDirect for NVIDIA video adapter chipsets
  • 1600 MB/s per channel DMA bandwidth in PCIe 2.x system and 800 MB/s per channel DMA bandwidth in PCIe 1.x system
