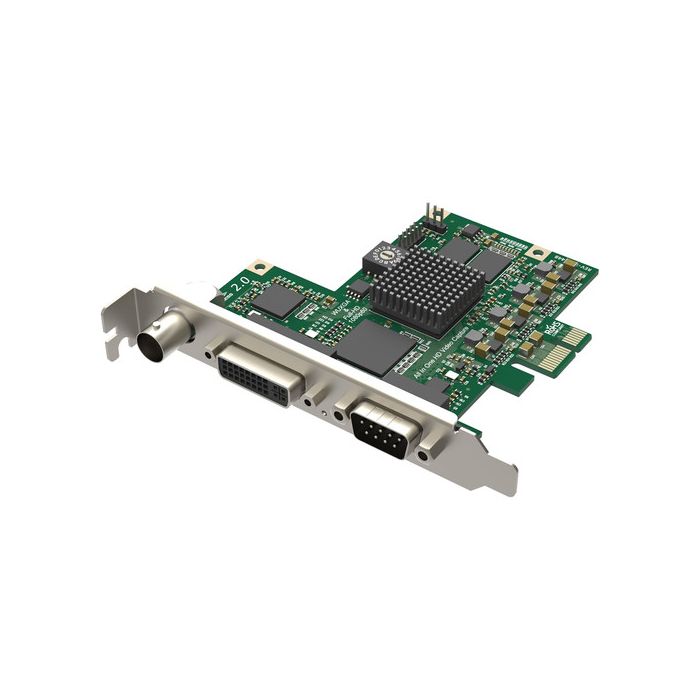

Magewell Pro capture AIO card
by MagewellThe Pro Capture AIO from Magewell is an all-in-one PCIe 2.0 x1 card capable of capturing a single channel of SDI + embedded audio, HDMI + embedded audio, DVI + audio, VGA + audio, Component + audio, Composite + audio, or S-video + audio.
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Magewell Pro capture AIO card
The Pro Capture AIO from Magewell is an all-in-one PCIe 2.0 x1 card capable of capturing a single channel of SDI + embedded audio, HDMI + embedded audio, DVI + audio, VGA + audio, Component + audio, Composite + audio, or S-video + audio.
It supports input video resolutions up to 2048x2048, featuring both automatic and manual selection of video and audio input sources, and it supports output resolutions up to 2048x2048 with frame rates up to 120 fps. Not only does the Pro Capture AIO support numerous parameter formats and standards for each input type, but it also offers multiple video processing features (see below for details).
Pro Capture AIO supports multiple cards in one system by using a 16-position rotary switch to set the card number.
It also supports unlimited output streams with independently adjustable parameters per stream. Additional features include ultra-low latency, timestamp and A/V synchronization, and LED status indicators.
This card supports Linux and Windows operating systems, with APIs for both, and includes Windows SDKs for easier integration. A DVI to VGA adapter, a DVI-I to HDMI + Component breakout cable, and a DB9 to YC + Composite + Analog Audio + Component breakout cable are all included.
General
- Supports auto-scanning of video input sources when there is no signal input to the currently selected source
- Supports auto selection of linked (embedded) audio input source when the video input source changes
- Support for standard crossbar based on video input source selection
- Support for input and output video resolutions up to 2048 x 2048 pixels
VGA & Component Input
- Auto detection of RGB & YCbCr color formats
- Auto or manual sampling phase adjustment
- Auto horizontal alignment
- Supports customized video timings
- Supports customized video resolutions for CVT/GTF timings
HDMI Input
- Full colorimetry support
- Supports customized EDID
- Supports extraction of AVI/Audio/SPD/MS/VS/ACP/IRSC1/ISRC2/Gamut InfoFrames
- Supports extraction of audio formation information and channel status data
- Supports extraction of video timing information
- Supports extraction of 3D format info
- Supports extraction of Sony/Canon DSLR time code
SDI Input
- Support for SMPTE 352 payload identifier
- For 3Gb-DS: only the first stream can be captured
- For 3Gb-DL: 2K YCbCr 4:2:2 10-bit 1080p 50/59.94/60 is captured as 1080i
- For the first link of dual-link interfaces: YCbCr 4:2:2 10-bit 1080p 50/59.94/60 is captured as 1080i; YCbCr 4:4:4 10-bit is captured as 4:2:2; and RGB 4:4:4 is captured as R/B sub-sampled
Video Processing
- Two video processing pipelines with approximately 180MP/s processing bandwidth for each
- Supports video cropping, scaling, and de-interlacing
- Aspect ratio conversion with automatic or manual selection of input and output aspect ratios
- Three aspect ratio conversion modes: ignore (anamorphic), cropping, or padding (letterbox or pillarbox)
- Supports video frame rate conversion
- Supports automatic and manual selection of input color format and quantization range
- Supports automatic and manual selection of output color format, quantization range, and saturation ranges
- Supports limited or full quantization range
- Supports limited, full, and extended gamut saturation range
- Supports PNG OSD image of up to 2048 x 2048
- Supports dynamic loading of RGBA OSD image via SDK
Multiple Output Streams
- Unlimited output streams for any one input channel
- Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing, and color adjustment settings for each individual stream
Ultra-Low Latency Support
- Latency of 64 video lines
- Partial notification mode in SDK
Timestamp & AV Synchronization
- Hardware based 100ns high-resolution clock
- Audio frames (192 audio samples) & video frames are stamped with hardware clock
- Hardware clock can be synchronized across cards (via SDK)
Video Output SG-DMA
- Supports auto detection of Intel tiled GPU surface
- Supports DirectGMA for AMD video adapter chipsets
- Supports GPUDirect for Nvidia video adapter chipsets
Windows Driver Tweaks
- All options can be controlled by three levels of registry key: global level, product level, and device level
- Video, audio, crossbar filter names can be customized via registry keys
Included Accessories
- DVI to VGA adapter
- DVI-I to HDMI + Component breakout
- DB9 to YC + Composite + Analog Audio + Component breakout
