Magewell Pro capture dual DVI card

by Magewell

Dostupnost: Isporuka 7-10 dana

SKU

110700000

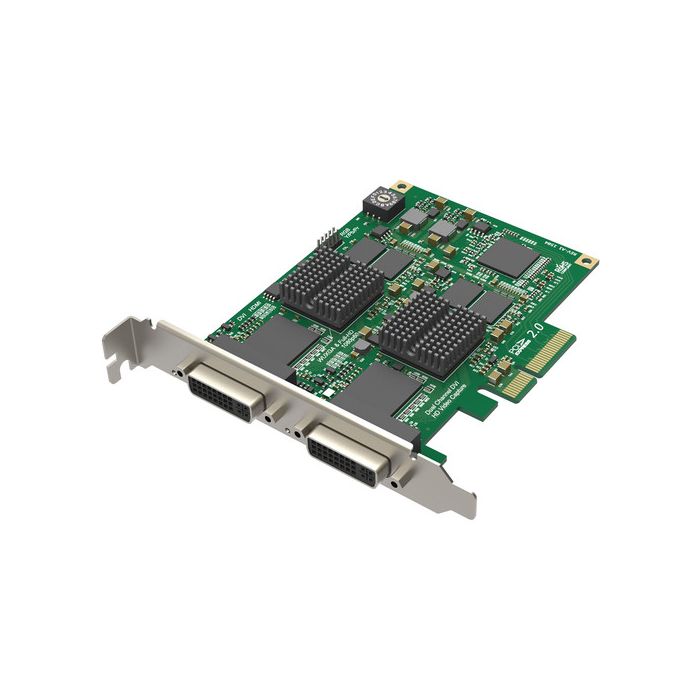

The Pro Capture Dual DVI HD Capture Card (Two Channels) from Magewell is a normal-profile PCIe 2.0 x4 card that allows for capturing two channels of DVI, VGA, Component, or HDMI + embedded audio via the two DVI inputs and supplied breakout cables.

743,75 € 595,00 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

Magewell Pro Capture Dual DVI HD Capture Card (Two Channels)
2 x DVI2VGA Connector
2 x DVI-I to HDMI + Component Breakout
Limited 1-Year Warranty

Opis

The card supports various color sampling modes, color depths, color formats, up to 8 audio channels at 48 kHz (HDMI only), and output resolutions up to 2048 x 2048 with frame rates up to 120 fps.

The card is also capable of numerous video processing features, including cropping, scaling, de-interleaving, aspect ratio conversion, color format conversion, video frame rate conversion, and video OSD composition.

Pro Capture Dual DVI supports multiple cards per system and unlimited output streams for any one input channel with independently adjustable parameters per stream. Additional features include ultra-low latency, timestamp and A/V synchronization, and LED status indicators.

The card supports both Windows, Mac, and Linux operating systems, with multiple APIs for Windows and Linux, and with Windows SDKs for easier integration.

General

Supports auto scanning of video input sources when there is no signal input to the currently selected input source
Supports manual selection of video input source, auto selection of linked (embedded) audio input source when the video input source changes, and manual selection of audio input source
Supports standard crossbar based on video input source selection
Supports input video resolutions up to 2048 x 2048

Specifikacije

VGA & Component Input

12-bit ADC
Supports RGB & YCbCr (YUV) color formats
Supports separated sync, composite sync, sync-on-green (SOG), and sync-on-luminance (SOY)
Supports DMT, CEA, CVT, GTF video timings
Input signals up to 165 MHz pixel rate are digitized with 1:1 sampling whereas signals over 165 MHz pixel rate can be digitized with horizontal sub-sampling (resulting in some image quality loss; not officially supported)
Auto detection of RGB & YCbCr color formats
Auto or manual sampling phase adjustment
Auto horizontal alignment
Supports customized video timings
Supports customized video resolutions for CVT/GTF timings

HDMI Input

225 MHz HDMI receiver
Adaptive HDMI equalizer support for cables lengths up to 98'
Supports customized EDID
Supports extraction of AVI/Audio/SPD/MS/VS/ACP/IRSC1/ISRC2/Gamut InfoFrames
Full colorimetry support
Supports 8/10/12-bit color depths
Supports RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Supports up to 8-channel IEC60958/IEC61937 audio streams
Supports extraction of audio formation information & channel status data, video timing, 3D format information, and Sony/Canon DSLR time code

Video Processing

Two video processing pipelines with approximately 180MP/s processing bandwidth for each
Supports full 10-bit video processing
Video cropping and scaling
Video de-interlacing: weave, blend top & bottom field, top field only, bottom field only
Aspect ratio conversion with automatic or manual selection of input and output aspect ratios
Three aspect ratio conversion modes: ignore (anamorphic), cropping, or padding (letterbox or pillarbox)
Supports video frame rate conversion
Supports automatic and manual selection of input/output color formats and quantization ranges, and output saturation range
Supports RGB, YCbCr 601, YCbCr 709, and YCbCr 2020 color formats
Supports limited or full quantization range
Supports limited, full, and extended gamut saturation range
Supports PNG OSD image of up to 2048 x 2048
Supports dynamic loading of RGBA OSD image via SDK

Multiple Cards per System

Supports multiple cards in one system
On-board rotary switch to set card number, with 16 positions from 0 to F
System hardware device tree will display “01: Pro Capture AIO” when rotary switch is set to 1, and so on
The video and audio device names displayed in your software will include the card number (set by the rotary switch)

Multiple Output Streams

Unlimited output streams for any one input channel
Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing, and color adjustment settings for each individual stream

Video Output SG-DMA

Supports auto detection of Intel tiled GPU surface
Supports DirectGMA for AMD video adapter chipsets
Supports GPUDirect for NVIDIA video adapter chipsets
700 MB/s per channel DMA bandwidth in PCIe 2.0 system
400 MB/s per channel DMA bandwidth in PCIe 1.0 system

Firmware Upgrade

Multiple cards in one system can be upgraded simultaneously
Cards can be upgraded without a system power shutdown when it is not in use
Supports Safe upgrade
If power off or system break down occurs when the firmware is being upgraded, it will automatically restore to the initial version (only available for firmware version 1.21 and above)
