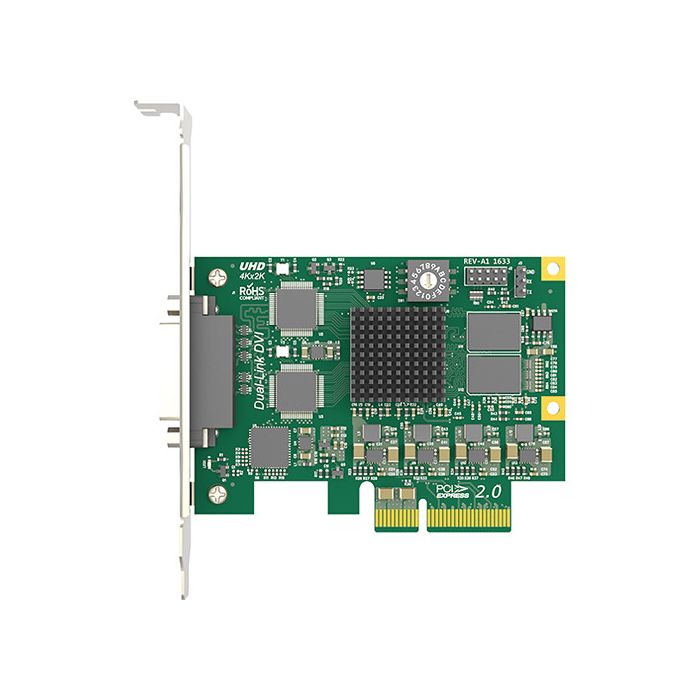

Magewell Pro capture DVI 4K card

by Magewell

Dostupnost: Isporuka 7-10 dana

SKU

111600000

Capture 4K resolution video using the low-profile Magewell Pro Capture DVI 4K Capture Card. This PCI Express x 4 capture card is compatible with DCI 4K and UHD video formats up to 4096 x 2160, and features a single DVI-D (single or dual) input.

605,00 € 484,00 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

Magewell Pro Capture DVI 4K Video Capture Card
Low-Profile Bracket
Limited 1-Year Warranty

Opis

Use an optional DVI-D to HDMI 1.4 adapter (not included) to input via HDMI. Capture uncompressed video from a camera or switcher's DVI-D or HDMI 1.4 output on your computer for recording, editing, or streaming.

The Magewell Pro Capture DVI 4K is compatible with Windows, macOS, and Linux systems. Extraction of audio-formation and channel-status data, video-timing, Sony and Canon DSLR timecode, and 3D-format information is supported, as are multiple color spaces in 8- and 10-bit formats.

Video processing features include frame-rate conversion, cropping, scaling, de-interlacing, and aspect-ration conversion. Multiple Magewell 1160 cards can be used and numbered in one system.

Specifikacije

HDMI-Specific Features

Dual 165 MHz HDMI receiver
Adaptive HDMI equalizer
Customized EDID support
Extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
Full colorimetry support
Supports single-link DVI or HDMI signals at a pixel rate of no more than 165 MHz
Dual-link DVI signals supported at a pixel rate of no more than 330 MHz
Extraction of audio formation information, and channel status data supported
Extraction of video timing information supported
Extraction of 3D format information supported
Extraction of Sony/Canon DSLR time code supported
Side-by-Side Half, Top-and-Bottom, and Frame Packing 3D mode supported

Video Capture Format Support

Image-capture resolutions up to 4096 × 2160 pixels
Capture frame rates up to 144 fps (Actual capture frame rate can be limited by PCIe bandwidth and image resolution)
4:2:0 8-bit capture formats: NV12, I420, YV12
4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
4:4:4 10-bit capture formats: V410, Y410
Additional capture formats are supported via Pro Capture SDK for DirectKS

Video Processing Features

Two video processing pipelines with ~360 MP/s processing bandwidth for each one
Full 10-bit video processing
Video cropping and scaling
Video de-interlacing:
Weave
Blend top & bottom field
Top field only
Bottom field only
Video aspect ratio conversion:
Auto or manual selection of input aspect ratio
Auto or manual selection of capture aspect ratio
Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding
(Letterbox or Pillarbox)
Video color format conversion:
Auto or manual selection of input color format & quantization range
Auto or manual selection of capture color format, quantization range & saturation range
Supports RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
Supports Limited or Full quantization range
Supports Limited, Full & 'Extended gamut' saturation range
Video frame rate conversion
Video OSD composition:
Supports PNG OSD image (up to 4096 × 2160)
Supports dynamic loading of RGBA OSD image via SDK
