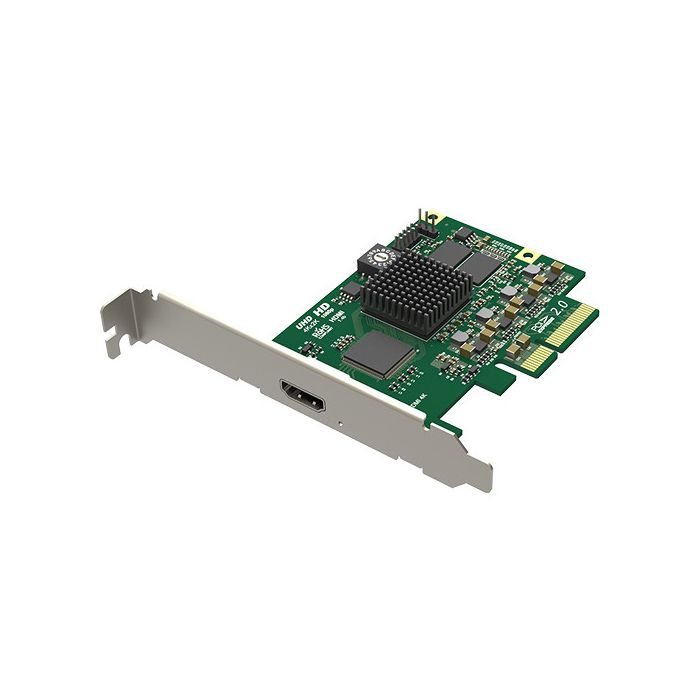

Magewell Pro capture HDMI 4K card

by Magewell
Dostupnost: Isporuka 7-10 dana
SKU
111200000

The Pro Capture HDMI 4K Capture Card from Magewell is a low-profile PCIe x4 card that allows for capturing a single channel of HDMI + embedded audio.

605,00 € 484,00 €

Sadržaj pakiranja

  • Magewell Pro Capture HDMI 4K Capture Card (1-Channel)
  • Low Profile Bracket
  • Limited 1-Year Warranty

The Pro Capture HDMI 4K Capture Card from Magewell is a low-profile PCIe x4 card that allows for capturing a single channel of HDMI + embedded audio.

The card supports extraction of audio formation information and channel status data, video timing information, 3D format information, and Sony/Canon DSLR timecode.

The card is also capable of performing various video processing features, including cropping, scaling, deinterlacing, aspect ratio conversion, color format conversion, video frame rate conversion, and video OSD composition.

HDMI Features

  • 297 MHz HDMI receiver
  • Adaptive HDMI equalizer
  • Supports customized EDID
  • Supports extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut info frames
  • Full colorimetry support
  • Supports 8-bit signals that use RGB/YUV 4:4:4 color sampling at pixel rate no more than 297 MHz
  • Supports 12-bit signals that use YUV 4:2:2 color sampling at pixel rate no more than 297 MHz
  • Supports 10/12-bit signals that use RGB/YUV 4:4:4 color sampling at pixel rate no more than 170 MHz
  • Supports extraction of audio formation information and channel status data
  • Supports extraction of video timing information
  • Supports extraction of 3D format information
  • Supports extraction of Sony/Canon DSLR timecode
  • Supports side-by-side half, top-and-bottom, frame packing 3D mode

Video Processing Features

  • Two video processing pipelines with 360 MP/s processing bandwidth for each one
  • Full 10-bit video processing
  • Wave, blend top and bottom field, top field only, and bottom field only deinterlacing modes
  • Auto or manual selection of input and output aspect ratio
  • Three aspect ratio conversion modes (ignore (anamorphic), cropping, or padding (letterbox or pillarbox))
  • Auto or manual selection of input color format and quantization range
  • Auto or manual selection of output color format, quantization range, and saturation range
  • Supports RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
  • Supports limited or full quantization range
  • Supports limited, full, and extended gamut saturation range
  • Supports PNG OSD image (up to 4096 x 2160)
  • Supports dynamic loading of RGBA OSD image via SDK

Multiple Cards per System

  • Supports multiple cards in one system
  • On-board rotary switch to set card number, with 16 positions from 0 to F
  • System hardware device tree will display 01: Pro Capture AIO when rotary switch is set to 1, and so on
  • The video and audio device names displayed in your software will include the card number (set by the rotary switch)

Video Output SG-DMA

  • Supports auto detection of Intel tiled GPU surface
  • Supports DirectGMA for AMD video adapter chipsets
  • Supports GPUDirect for NVIDIA video adapter chipsets
  • 1200 MB/s per channel DMA bandwidth in PCIe 2.0 system and 800 MB/s per channel DMA bandwidth in PCIe 1.0 system

Firmware Upgrade

  • Multiple cards in one system can be upgraded simultaneously
  • Cards can be upgraded without a system power shutdown (in most cases, even a reboot is not needed)
