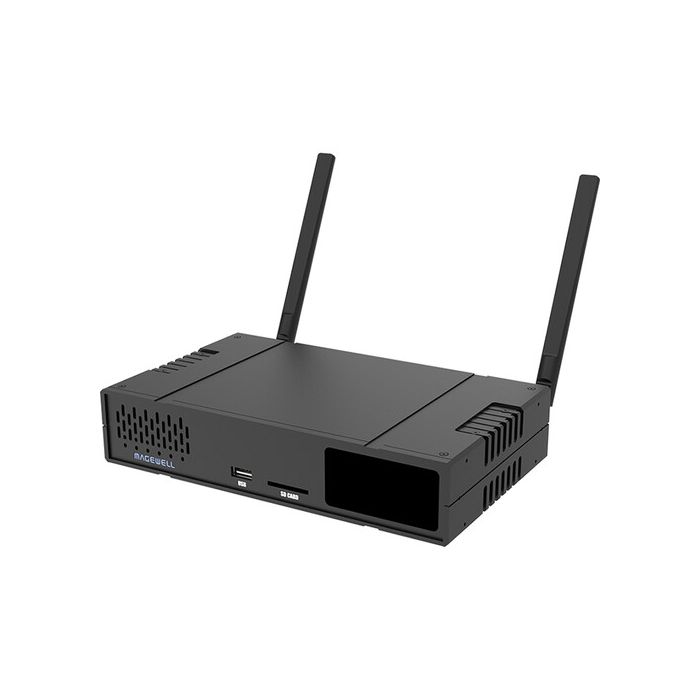

Magewell Ultra Encode AIO

by Magewell

Dostupnost: Isporuka 14-20 dana

SKU

531300000

Up to 4096 x 2160p60 Input & Loop Output
264/265 Encoding with 8-Ch AAC Audio
Mix HDMI & SDI in PIP or Side by Side

958,75 € 767,00 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

Magewell Ultra Encode AIO
Locking Power Adapter with Plug Adapters
HDMI Cable
2 x Wi-Fi Antenna
7 x M2.5 Screw
Retainer Plate
1 RU Short Rack Ear
2 x 1 RU Long Rack Ear

Opis

The Ultra Encode AIO live media encoder from Magewell upgrades the capabilities of the original Ultra Encode models for advanced use cases. Expanded features include HDMI and SDI input connectivity in a single unit, 4K encoding and streaming from the HDMI input, simultaneous multi-protocol streaming, higher streaming bitrates, and both SD card and external USB recording. This encoder is ideal for high-quality live streaming of content like sports, education, and live events as well as IP-based production and AV-over-IP.

Mixes HDMI & SDI Inputs

Mixes video from the HDMI and SDI inputs in picture-in-picture (PiP) or side-by-side forms into a combined output

Multiple Streaming Outputs

Outputs up to six simultaneous sessions over multiple streaming protocols at 32Mb/s per session

NDI Protocols

Supports multiple NDI standards, including the high-efficiency, low-bandwidth NDI|HX 3

Scheduling

Supports streaming and recording scheduling

Video Encoding

Supports H.264 and efficient H.265 (HEVC) video encoding

Audio Encoding

8-channel AAC audio encoding with 16-256 Kb/s

Streaming Platforms

Native Facebook, Twitch, and YouTube support

Specifikacije

Magewell Ultra Encode AIO Specs

IP Encoding/Decoding

IP Video	H.264/H.265: 2560 x 1440 to 4096 x 2160 at 30p Encoding H.264/H.265: 1280 x 720 to 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding H.264/H.265: 720 x 576 at 25p Encoding H.264/H.265: 720 x 480 at 30p Encoding
IP Audio	AAC: 16 to 256 Kb/s Encoding
Transport Protocols	HLS, NDI/HX, NDI/HX2, NDI/HX3, RTMP, RTMPS, RTP, RTSP, SRT
Simultaneous Streams	6 Streams
Compatible Services	Facebook Live, Twitch, YouTube Live

Wireless

Wi-Fi	Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Bluetooth	Yes

Interfaces

Video I/O	1 x BNC (3G-SDI / HD-SDI / SD-SDI) Input 1 x BNC (3G-SDI / HD-SDI / SD-SDI) Loop Output 1 x HDMI Input 1 x HDMI Loop Output
Audio I/O	1 x 1/8" / 3.5 mm TRS Input 1 x 1/8" / 3.5 mm TRS Output
Other I/O	2 x USB-A 1 x USB-C
HDCP Support	Yes
Embedded Audio	HDMI/SDI

Internal Recording

Recording Media	1 x SD (Unspecified Type)
Recording Modes	4096 x 2160p at 30/60 fps 2048 x 1080p at 23.98/24/25/29.97/30/48/50/59.94/60 fps 2048 x 1080i at 23.98/24/25/29.97/30/48/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/48/50/59.94/60 fps 1920 x 1080i at 23.98/24/25/29.97/30/48/50/59.94/60 fps 1280 x 720p at 25/29.97/30/50/59.94/60 fps 720 x 576p at 25 fps 720 x 576i at 50 fps 720 x 480p at 29.97 fps 720 x 480i at 59.94 fps
