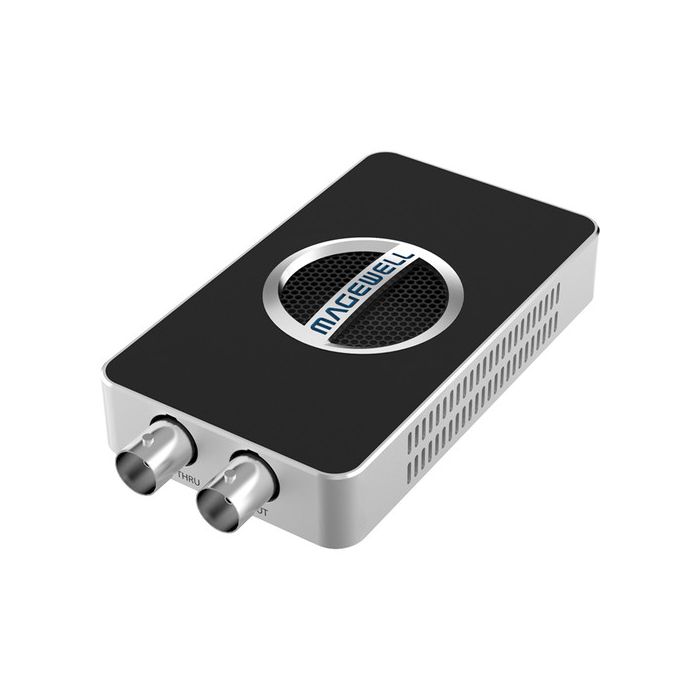

Magewell USB Capture SDI 4K Plus

by Magewell

Dostupnost: Isporuka 7-10 dana

SKU

321000000

The Magewell USB Capture SDI 4K Plus connects to your computer over a USB interface and lets you capture up to a 4K DCI resolution signal (4096 x 2160) with embedded audio via a 6G-SDI input.

580,00 € 464,00 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

Magewell USB Capture SDI 4K Plus
USB 3.0 Cable
Limited 3-Year Warranty

Opis

The Magewell USB Capture SDI 4K Plus connects to your computer over a USB interface and lets you capture up to a 4K DCI resolution signal (4096 x 2160) with embedded audio via a 6G-SDI input.

It also features a 6G-SDI loop-through for local monitoring, and 3.5mm audio input and output for capturing external audio and extracting embedded audio. It's compatible with Windows, Mac, Linux, and Chrome operating systems.

The card offers a variety of processing and other features, including resolution scaling and deinterlacing. It's capable of operating 24 hours a day, 7 days a week while displaying the status of the input via an LED indicator (idle, input signal locked, memory failed, or FPGA configuration).

Specifikacije

Key Features

SDI input and loop-through, audio in/out, USB 3.0 computer interface
Capture 6G/2K/3G/HD/SD-SDI signals (up to 4096 x 2160)
Compatible with Windows, Mac, Linux, and Chrome OS
Plug-and-play operation
UVC protocol support
Up/down scaling
Deinterlacing
Image control
Various output color spaces
Firmware upgradeable
Multiple devices on one host
24/7 continuous operation

Included USB Capture Utility V3

Capture format setting
Audio volume control
Mirror and flip
EDID editing and importing
Firmware update
Export diagnose report
Other functions, such as cropping, deinterlacing, and device name setting

SDI Specific Features

Integrated cable equalizer supporting cable lengths up to 492 ft for HD signals
SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS/6G (SMPTE 2081) standards
4K (4096 x 2160) and 2K (2048 x 1080) modes
RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
10/12-bit color depth
Extraction of SMPTE 352 payload identifier
Up to 8 (mono) audio channels at 48 kHz
Extraction of audio formation information and channel status data
Limited support of 3Gb-DS: only the first stream can be captured
Limited support for capture of the first link of dual link interfaces (YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60; YCbCr 4:4:4 10-bit: captured as 4:2:2; RGB 4:4:4: R/B sub-sampled)

Video Capture Formats

Image resolutions up to 4096 x 2160
Capture frame rates up to 120 fps (actual capture frame rate can be limited by USB bandwidth and internal working frequency; typical capture frame rates on the Intel USB 3.0 controller are as follows: 1920 x 1080 YUY2 at up to 90 fps, and 3840 x 2160 NV12 at up to 30 fps)
NV12 and I420 4:2:0 8-bit (up to 4096 x 2160)
YUY2 and UYVY 4:2:2 8-bit (up to 4096 x 2160)
RGB24 and RGB32 4:4:4 8-bit (up to 2048 x 2160)
Default capture formats are YUY2 and NV12; more capture formats can be set using the included USB Capture Utility software

Video Processing Features

Video processing pipelines with 640 megapixels processing bandwidth
Cropping
Scaling
Frame rate conversion
Vertical flip and mirror

Color Format Conversion

Auto or manual selection of input color format and quantization range
Auto or manual selection of capture color format, quantization range, and saturation range
Support for RGB, YCbCr 601, and YCbCr 709 color formats
Support for limited or full quantization range
Support for limited, full, and extended gamut saturation range
