Nagasoft NSCaster All-in-one 558

NSCaster 558 is a powerful live broadcasting device, it has many powerful functions including 3D trackless virtual scene, multi-input channel transition, recording, broadcast, streaming, audio mixer, delayed broadcast, subtitles, Multiview, PTZ camera control, remote connection and multiple channels GPU chroma key etc.

Characteristics:

• Video mixer of up to 5 cameras (SD / HD-SDI / 3G-SDI) +1 HDMI
• audio mixer
• Stream
• Multiviewer of up to 16 screens
• Degree + Logo / Clock / Image
• Virtual Reality with customizable preset scenarios
• DDR SSD and SATA HDD Recorder
• Replay, slow motion
• PTZ Control
• It can be controlled from 1 external iPad
• Can be connected to an external Tally unit

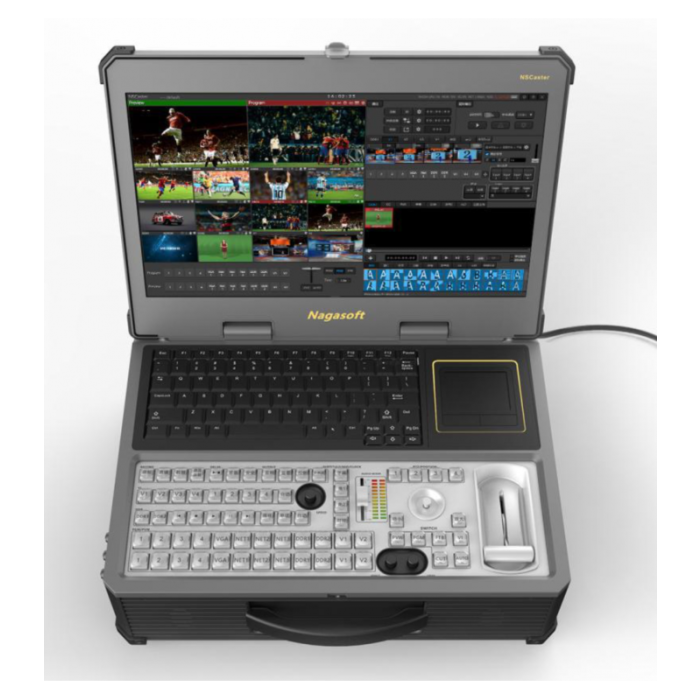

All-in-one design
NScaster 558 uses a highly integrated all-in-one design. It includes a built-in main frame, 17.3 inch Full HD screen, PC keyboard, mouse touchpad, built-in control panel, PTZ camera pan and tilt control, video input and output interface package, professional audio input and output, audio mixer, bluetooth wireless communication, TALLY output, hot-plug hard drive, data output and DVD burner. The total weight is less than 10 kg, easy to carry and convenient to carry with a high-quality cover.

12 input channels
NSCaster 558 has 12 input channels, including four SDI / HD-SDI / 3G-SDI camera inputs, a full interface (SDI / HDMI / DVI / VGA / component) input, three NET inputs, two DDR (video clips) inputs, and two virtual scene inputs.

Full interface input and output
Full interface input can be used to connect cameras or PC desktop. Network input channel can be used to connect computer desktop, Android devices, iOS devices, IP camera through the network; it connects to network streaming sources, it supports RTMP/RTSP/MMS/VJVGA/VJTeacher/HTTP TS/UDP TS protocol.
DDR channels are used to play media files such as audio, video and photo files. It supports all popular file formats and you can just play with a single file or playlist. It allows loop playback, progress adjustment, playback speed adjustment, playback time countdown, and auto-play with toggle.
It also supports one SDI/HD-SDI and one HDMI output of PGM video and audio signal.

Multi-view and graphics card output
NSCaster supports multi-view in external display monitor by DVI/HDMI/DP. It has five multi-view modes including single screen, quadruple screen, ten screen, thirteen screen, sixteen screen. The channel layout for multiple views and the height of the content of multiple views can be adjusted.
NSCaster 558 supports output PGM to external monitor or projector. PVW/AUX can send signal output to monitors and support multiple monitors to manage different content at the same time.

Nagasoft Live + Interconnection System
Based on NDDIP (Nagasoft Director Device Interconnection Protocol), Nagasoft has created a new Live + interconnection system for the entire equipment supply and service chain, to facilitate interconnection and interoperability between a variety of live production devices and front-end capture equipment ( such as: mobile phone, encoder, UAV etc.), and forming the live broadcasting solution based on a network system.

Each Live production device added to the live + interconnection system has a unique director code and corresponding QR code. Wherever it is, front-end equipment can be easily linked to live production devices by entering the director code or scanning the director QR code to optimize the entire directing process.

Live+ interconnection system owns open system framework, and Nagasoft provides open SDK for third-party vendors who can easily join Live+ system. It is now available on iOS, Android and Windows SDK.

Network streaming in multiple formats
It supports MMS streaming, FLASH/RTMP push streaming and UDP TS unicast or multicast streaming, RTSP push streaming, HTTP FLV pull streaming, HTTP M3U8 pull streaming.

MMS uses WMV/WMA encoding, RTMP uses H.264/AAC encoding, and UDP TS uses MPEG2/H.264/H.265 encoding.

RTMP supports three bitrate stream encoding and any bitrate stream can be streamed to RTMP servers without restrictions.

Professional audio mixer
NSCaster has a built-in professional audio mixer, which supports VU monitoring and gain control per channel, supports dBVU / dBu / dBFS VU standard, and each channel can work independently.

The built-in audio mixer supports mix switch, follow, solo, audio channel balance and channel copy function and audio monitor function. It supports left and right channel balance settings, supports changing from mono to stereo.

Multi-camera 3D Trackless Virtual Scene
NSCaster 558 uses a three-dimensional virtual scene, including two camera positions, three-dimensional virtual trackless, and any camera position can be transferred to a corner of the three-dimensional virtual scene. The virtual camera can simulate camera movement, push and pull without moving the physical camera, but only edit the moving path of the virtual camera.

It supports 2 channels of 3D virtual scene inputs, each virtual scene channel can select a virtual 3D scene and a virtual camera, each virtual 3D scene can set multiple virtual cameras through the editor. It supports push and pull for 3D virtual camera paths and the paths can be edited.

Each virtual camera has 4 preset paths, can track the transition, and the transition time is adjustable. The scene supports up to 4 inputs, each input can be independently linked to other input channels, the input can be placed on the TV wall or any virtual object surface with adjustable position and size.

PTZ camera control
Supports the operation of PTZ camera, supports zoom, focus and aperture, the movement up and down, left and right, top left, bottom left, top right and bottom right of PTZ camera, and supports mouse movement to any location with quick positioning function. It supports PELCO-D / PELCO-P / VISCA protocol, 255 preset location calls and settings. It also support RS485/RS232 PTZ camera control, support IP camera Onvif PTZ control. PTZ operations support virtual camera control in the virtual scene.

Social media support
It can create text and image content from RSS, Sina microblog, Facebook, Twitter and other social media and then publish to PGM channel by CG.

AutoBroadcast System
Built-in 7×24 hours automatic broadcast system, can edit broadcast list based on timeline and broadcast automatically. The broadcast list can add video and audio files, data collection devices and channels. It supports switching effects, point to point set, automatic switching, automatic subtitle publishing, preview video and audio files and other functions.

Slow motion replay
It supports slow motion playback, forward, backward, slow and fast replay. Forward and reverse frame level control and four playback channels can be performed simultaneously in real time. Playback speed can be up to 4 times faster and slowed down to 12.5%. There is every button that allows you to quickly create playback events, play and manually set playback events. Multi-camera can be played continuously without any interruption. Playback events can be sorted as a list. It supports autoplay based on a multi-channel event list along with toggle effects. Replay content can be saved and accessed synchronously. You can also work with an external professional slow motion answering keyboard.

Professional transition effects
NSCaster 558 supports switching between multiple cameras with transition effects. It includes eight types of transitions: swipe, slide, page, dissolve, stretch, PIP, 3D, and toggle, and it has over 200 built-in 2D or 3D transition effects. Users can use the effect editor to create a new transition effect or edit the built-in transition effect.

Remote CG Publishing
NSCaster supports remote publishing CG for overlay over IP network. So that the subtitle operators can use another computer to publish subtitles in NSCaster. It supports text, image, image sequence, timer, clock. It supports CG overlay without layer limitation, CG position and size can be adjusted.

Real-time GPU Chroma key
All inputs support real-time chroma key with GPU Accelerated. It supports color background encoding, not just green and blue background. It has many setting parameters including key color, brightness, shadows, blur, border, overflow control, borders and exclusion.

Professional virtual scene
NSCaster 558 has many built-in professional 2D and 3D virtual scenes, covering news, finance, education, military, interviews, entertainment, sports and other applications.

Nagasoft will continue to develop new virtual scene and for updates. And users can use the virtual scene editor to create a new virtual scene or edit the built-in virtual scene.
