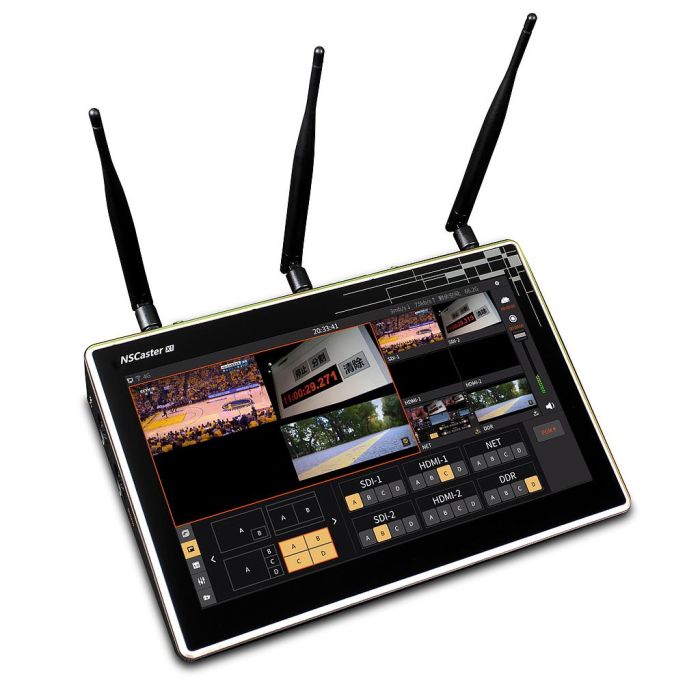

Nagasoft NSCaster X1
by Nagasoft- 11.6'' HD Touchscreen Display
- 6 Input channles (2x SDI, 2X HDMI, NET, DDR)
- 2 XLR/TRS Audio Inputs / Outputs
- Live+ Connection
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- 1x Nagasoft Caster-X1
The NSCaster X1 is a highly integrated navigation tablet with a built-in 11.6inch full HD touchscreen monitor. It integrates functions such as multi-channle switching, recording, broadcasting, audio mixer, special effects and monitoring. It also has built-in Ethernet, WIFI and 4G modules to meet the needs of webcasts for different occasions.
Lightweight Director Design
The NSCaster X1 is a direct broadast tablet that serves as a new navigation for the new media. The device is highly integrated and cost-effective to meet the needs of business broadcast.
6 video input channels
NSCaster X1 supports 6 channels of input, including IP camera, SDi, HDMI, NET, DDR local material and other signals, which can support a professional live event without any pressure. The NET input channel supports loading various network stream signals. The supported formats are: Rtmp/rtsp/hls/udp ts/http flv; DDR channel supports loading multiple forms of local material files.
No delay switching
The monitor uses a 11.6" touchscreen and can be switched to the PGM by clicking on any of the video channels (SDI-1/2, HDMI-1/2, NET, DDR). Multi-channel signal switching at random and one-touch to start broadcast.
Professional operation interface
The NSCasterX1 features a professional and simple UI design that makes live streaming more professional and easier to operate.
Picture in picture function
NS Caster X1 selects the layout mode of the broadcast screen by the picture-in-picture special effect, and quickly switches the content of the main screen and the sub-pciture to bring more idea and inspire live director to give a better performance.
Scoreboard function
NS Caster X1 has a large number of scoreboard templates built in, which can display the scores of current live matches in real time. It can meet the real-time scores of various sports events such as basketball, football, table tennis, badminton and volleyball.
Professional audio input
The Monitor uses XLR and tRS mixing port, and both XLR and TRS can be used, which guarantees its professionalims in essence.
Audio mixer function
A built-in audio mixer supports multiple channel mixing effects, allowing you to control the input and total output volume arbitrarily.
CG overlay function
The CG panel can publish pictures to the PGm monitor interface. It has built-in a large number of picture material and support importin external png/jpg format pictures. It also can move the position of the picture and the same channel can support up to 12 pictures.
Channel recording.
You can record up to 6 channels (SDI-1/2, HDMI-1/2, NET/PGM channel recording) and supports recording power-off protection.
Multi-platfrom live streaming
Built-in live streaming of multiple live platforms (Mudu, AndLive, Facebook, Youtube, RTMP etc.); stream multiple live platforms with one click.
Network support
The NS Caster X1 has built-in Ethernet, Wifi and 4G modules to meet the network needs of different live braodcasts, making live broadcasts more ubiquitous and more convenient.
Live + connection
With the Naga NDDIP protocol, front-end devices such as smartphones and encoders do not need to be wired. Simply scan the QR code on the NS Caster X1 or enter the 6 digit director code to instantly connect to the NSCaster X1, making the live stream easier and faster.
Input channel customization
NSCaster X1 has powerful video access capability, it supports channel customization and can select various video sources such as physical input, IP camera input and network streaming to meet various live broadcast requirements.
PTZ control
The NS Caster X1 supports operating PTZ camera such as zoom, focus, aperture operation, up, down, left, right, bottom right movement. It also supports drag and drop arbitary position and quickly locates the target.
Tech Data:
General Data:
Dimensions (LxHxB): 294mm x 193mm x 54mm
Weight: 1,25 kg
Electricity:
Operating performance: 23,6 W
Input voltage: DC 19V
External power supply: 100~240V AC
System:
CPU: Dual Core, ARM 1.1 GHz
Storage capacity: 2GB RAM - 512MB ROM - 250GB M.2
4G Module LTE FDD: B1/B3/B5/B8; LTE TDD: B38/B39/B40/B41
WIFI Module IEEE 802.11n, IEE 802.11g, EE 802.11b
