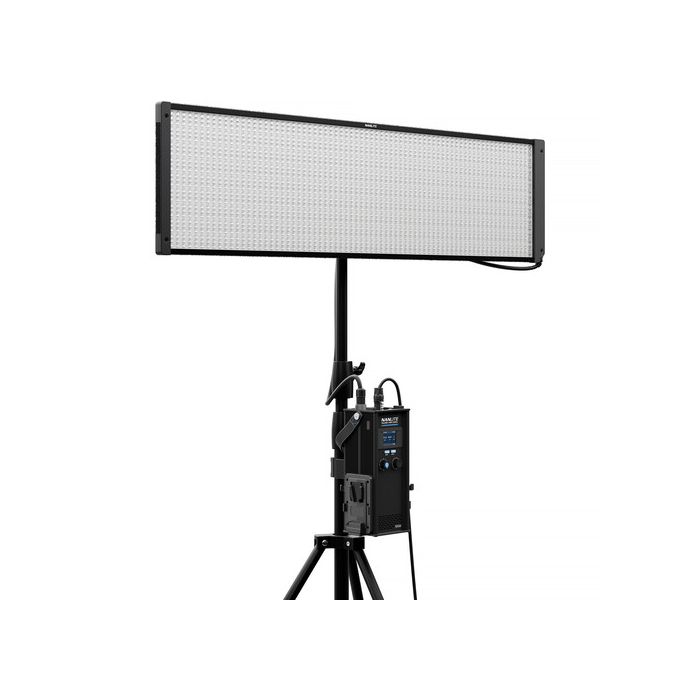

Nanlite PavoSlim 240CL LED RGBWW Panel

by Nanlite
Dostupnost: Isporuka 7-10 dana
SKU
NL-PS240CL

For Studio, Film & TV Production
Output: 21,030 Lux at 3.3' (5600K)

1.690,63 € 1.352,50 €

Sadržaj pakiranja

  • Nanlite PavoSlim 240CL RGB LED Panel with Pop-Up Softbox
  • Control Unit
  • Baby Pin Mount
  • Swivel Holder
  • Quick Release Clamp
  • DC Connection Cable (8.5')
  • AC Power Cable (14.7')
  • Pop-Up Softbox
  • Lite Diffuser
  • Standard Diffuser
  • Egg Crate Grid
  • Padded Carry Case

Experience an efficient and uncomplicated lighting setup with the PavoSlim 240CL RGB LED Panel with Pop-Up Softbox from Nanlite. Like the 240C unit, the 240CL is a full-color RGBWW fixture that remains thin, lightweight, and impressively bright. But this version was thoughtfully designed with a 48 x 12" format to be easily mounted close to the ceiling. Suitable for a variety of users and applications, the 240CL's ultrathin and compact metal body fits the most constrained spaces. Nanlite includes a pop-up softbox to give gaffers, DPs, and creators a fast and easy way to set up the LED panel. This 240W fixture offers a wide 2700 to 7500K color temperature and boasts high color accuracy ratings. It also features green-to-magenta shift by +/- 150, a full-color HSI mode, 151 gel presets, 15 lighting effects, multiple control methods, and AC or optional battery power. Its greatest convenience is the ability to assemble and disassemble it quickly and efficiently. A padded carry case safely holds everything, so you can take it anywhere.

Pop-Up Softbox

Nanlite combines the PavoSlim 240CL with a pop-up softbox that significantly shortens setup time to save you effort when it's time to shoot. An egg crate and 1.5- and 2.5-stop diffusers are also included for modifying and adjusting the panel's output.

Exceptionally Thin & Bright

Offering a wide variable color temperature range of 2700 to 7500K and 0 to 100% dimming, this ultrathin and powerful panel seamlessly integrates into ambient light situations, letting you match the output of most fixtures. Designed for studio, film, and TV productions, this thin and lightweight LED panel provides flicker-free, bright illumination of 21,030 lux at 3.3' (5600K).

Color Accuracy

The panel's high CRI/TLCI ratings of 96/97 provide high color accuracy and rendering. Other scores are SSI (3200K) of 84, SSI (5600K) of 74, TM-30 Rf of 94, and TM-30 Rg of 100.

Lighting Effects

Fifteen built-in special effects: hue loop, CCT loop, intensity loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, firework, explosion, and welding.

Advanced Control Methods

Multiple onboard and wireless control options make for easy creative adjustments. This version comes with built-in LumenRadio CRMX for a convenient connection to wireless DMX. Use the onboard controls located on the included control unit or the Bluetooth Nanlink app control right from your smartphone for intuitive management of settings. Going further, 2.4 GHz provides control through the separately available WS-TB-1 transmitter box for more elaborate setups or with the optional WS-RC-C2 handheld remote. DMX/RDM control is also supported for advanced users.

Item Type
1x LED Array LED Light Panel
Included Light Modifier 1x Softbox
  1x Grid/Louver
Included Storage Case Yes
Photometrics
3200K: 1818 fc / 19,570 Lux

5600K: 1953 fc / 21,030 Lux
Color Temperature 2700 to 7500K
Color Modes RGB, Daylight, Tungsten
Color Accuracy Standard CRI 96
  TLCI 97
  SSI 84 at 3200K
  SSI 74 at 5600K
  Show Less
Dimming
App-Controlled / Controller Included / DMX / RDM
   • 0 to 100%
Front Accessory Mount Proprietary
Wireless Remote Control Type
Bluetooth (Nanlink)

Radio/RF *Remote Not Included

Wireless CRMX (LumenRadio)
Power Source
AC Power (Cable Included)

Battery (Not Included)
Battery Plate Type
2x V-Mount (Built-In)
Battery
2x V-Mount Rechargeable, 14 to 26 VDC (Not Included)
Input Power 48 VDC

100 to 240 VAC, 50 / 60 Hz
Power Consumption 240 W
Fixture Mounting
1x 5/8" Receiver (Via Hardware)
Light Fixture
Item Type
1x LED Array LED Light Panel
Included Light Modifier 1x Softbox
  1x Grid/Louver
Included Filters Diffusion, Soft Diffusion
Included Storage Case Yes
Lumens
24,024 (at 3200K)

25,748 (at 5600K)
Photometrics 3200K:

1818 fc / 19,570 Lux at 3.3' / 1 m

603 fc / 6496 Lux at 6.6' / 2 m

316 fc / 3404 Lux at 9.8' / 3 m
  5600K:

1953 fc / 21,030 Lux at 3.3' / 1 m

648 fc / 6985 Lux at 6.6' / 2 m

316 fc / 3404 Lux at 9.8' / 3 m
Color Temperature 2700 to 7500K
Color Modes
RGB, Daylight, Tungsten
Color Accuracy Standard CRI 96
  TLCI 97
  SSI 84 at 3200K
  SSI 74 at 5600K
Dimming
App-Controlled / Controller Included / DMX / RDM
   • 0 to 100%
Cooling System Passive
Beam Angle 60° Unmodified
Built-In Flash No
Preprogrammed Effects Yes
Umbrella Mount No
Front Accessory Mount Proprietary
Connectivity
Wireless Remote Control Type
Bluetooth (Nanlink)

Radio/RF *Remote Not Included

Wireless CRMX (LumenRadio)
Mobile App Compatible
Yes: Android & iOS

App Name: Nanlink

Functionality: Adjust Settings, Remote Control, Setup
Wireless Frequency 2.4 GHz
Power & I/O
Power Source
AC Power (Cable Included)

Battery (Not Included)
Inputs/Outputs Light Fixture

To Power Supply/Controller: 1x Built-In Cable with Unspecified Power Input
  Light Fixture

To Power Supply/Controller: 1x Unspecified Power Output

1x 1/8" / 3.5 mm DMX Input

*Adapter Required (Not Included)

1x Unspecified AC Power Input

1x Unspecified Power Input (48 VDC)
Battery Plate Type
2x V-Mount (Built-In)
Battery
2x V-Mount Rechargeable, 14 to 26 VDC (Not Included)
Input Power 48 VDC

100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable Yes
Inline Switch No
Power Pass-Thru No
Power Consumption 240 W
Mounting
Fixture Mounting
1x 5/8" Receiver (Via Hardware)
General
Display Yes
Operating Conditions
-4 to 113°F / -20 to 45°C
Dimensions
48 x 12 x 0.93" / 121.9 x 30.5 x 2.36 cm (Fixture)

11.14 x 6 x 4.39" / 28.3 x 15.2 x 11.15 cm (Power Supply/Controller)
Weight
7.98 lb / 3.62 kg (Fixture)

6.08 lb / 2.76 kg (Power Supply/Controller)
Packaging Info
Package Weight 38 lb
Box Dimensions (LxWxH)
52 x 16.5 x 7.75"
