Nanlux Evoke 2400B Spot Light w/ Flight Case & 45 degrees Reflector w/ soft bag

by Nanlux
Dostupnost: Isporuka 7-10 dana

Evoke 2400B Spot Light with Flight Case & 45 degrees Reflector with soft bag

8.400,00 €/63.289,80kn 6.720,00 €/50.631,84kn
Tečaj konverzije: 1 EUR = 7,53450 HRK

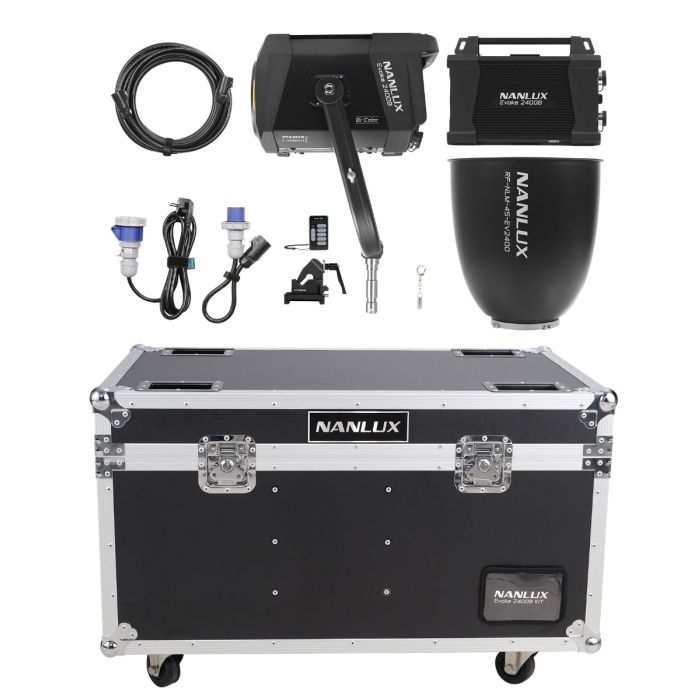

Sadržaj pakiranja

  • 1 x Evoke 2400B
  • 1 x Yoke
  • 1 x Power Supply
  • 1 x USB Drive
  • 1 x AS-CP-QR-EV Quick Release Clamp
  • 1 x CC-EV2400-FT-FO Flight Case
  • 1 x WS-RC-C2 Remote Controller
  • 1 x DC Connection Cable 7.5M
  • 1 x AC Power Cable 3M
  • 1 x RF-NLM-45-EV2400 Reflector 45°
  • 1 x Soft bag for reflector


  1. CCT: 2700K-6500K, fully dimmable 0-100% in 0.1% increment, G/M ±80
  2. EFFECT: 12 built-in practical effects: CCT Loop, INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Firework, Explosion and Welding.
  3. Four fan modes: SMART, FULL SPEED, LOW SPEED, OFF.
    The maximum output is 100% when the fan is in SMART or FULL SPEED state.
    The maximum output is 50% when the fan is in LOW SPEED state.
    The maximum output is 10% when the fan is OFF.
  4. Two output modes: MAX OUTPUT and CONSTANT OUTPUT.
  5. Accessory recognition function: Evoke 2400B has accessory recognition function, for recognizing accessories that with optical contacts, this function can be turn on/off on the menu.
  6. Two language options: English and Chinese.
  7. Support firmware update.
  8. Bluetooth reset function.


  1. Separate design of light fixture and power supply, high power output with ultra-bright output.
  2. 3.5 inch screen, with four buttons and three knobs.
  3. Robust and durable metal material construction, with IP55 rating.
  4. Quick release design of yoke with eye bolt, enable Evoke 2400B to rotate in 360-degree.
  5. Integral disassembly design makes it convenient for maintenance and replacing parts.
  6. Quick release plate & clamp for the power supply, with clamping range of φ15-50mm.
  7. Evoke 2400B is built with NL mount and optical contacts, makes it compatible with NL mount accessories and modifiers that with optical contacts.


  1. On-board control: Evoke 2400B can be operated through the control panel on the fixture.
  2. Bluetooth: Evoke 2400B has built-in bluetooth module for directly controlled by NANLINK APP.
  3. 2.4G: Evoke 2400B has built-in 2.4G receiver, enabling it to be controlled by remote controller or by NANLINK APP via the NANLINK box.
  4. DMX/RDM: Support DMX/RDM control.
  5. LumenRadio: Built-in Lumenradio module for remote control.
  6. Wireless control on/off function.
  7. Reserved wired control function.
  8. Support Art-Net and sACN control protocol.
Description LED Bi-colour Spot Light
Rated Power 2400W
Input Voltage/Current DC48V/26A
AC100V-240V 50/60Hz
Beam Angle 100°
Product Size (mm) Light Fixture(w/o COB protective cap):427.3×316.4×265.1mm/16.8×12.5×10.4″
Power Supply: 389.2×172.2×268.3mm/15.3×6.8×10.6″
Product Weight (kg) Light Fixture(w/o COB protective cap): 15kg/33.1lb
Yoke: 2kg/4.41lb
Power Supply 11.58kg/25.53lb
Control On-board, 2.4G, Bluetooth, DMX/RDM, LumenRadio, Wire Control(reserved), NANLINK APP, Art-Net & sACN
Dimming 0-100%, 0.1% increment
IP Rating IP55
Operating Temperature Range -20℃-45℃
CRI average 96
TLCI average 97
TM-30 Rf:average 95
Rg:average 100
CCT 2700K-6500K (G/M±80)
