Neumann AK 31

by Neumann
Dostupnost: Isporuka 7-10 dana

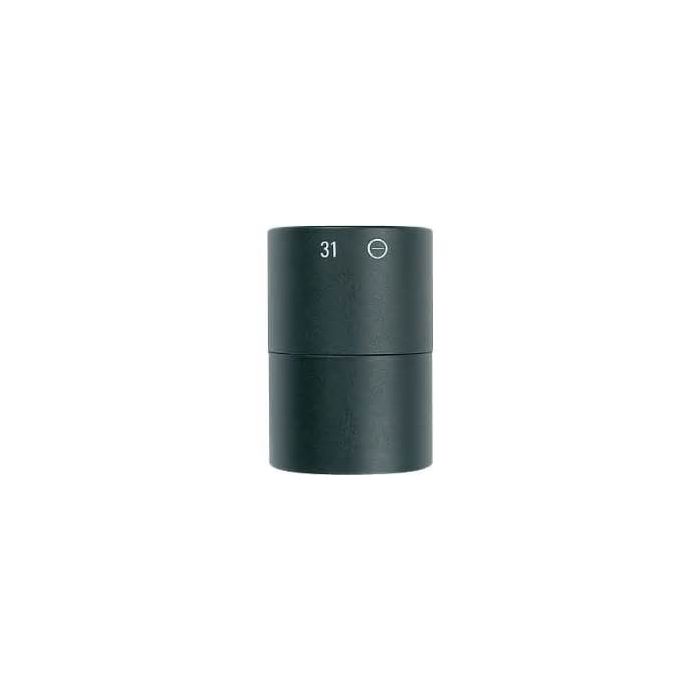

Neumann AK 31 - Omnidirectional Miniature Capsule for KM 100 and KM 100F Power Supplies

919,25 € 735,40 €

Sadržaj pakiranja

  • 1 x Neumann AK 31

The Neumann AK 31 microphone capsule is part of the KM 100 miniature series microphone systems. The AK 31 features a pressure gradient, single diaphragm transducer with an omni-directional polar pattern.

The AK 31 produces a flat frequency response up to 20kHz. In the diffuse field the microphone has a high frequency roll-off above 5kHz. The microphone is best applied as a spot microphone for piano, wind instruments, strings, percussion and drums, room ambiance capturing or stereo recording.

Modular Design
The capsule is developed for use with the KM100 and KM100F modular power supplies.
Omnidirectional Pattern
The pressure gradient element provides an omnidirectional pattern providing even frequency response and output levels.
Transducer Pressure Condenser
Polar Pattern Omnidirectional
Frequency Response 20 Hz - 20 kHz
Dynamic Range (Typical) 124 dB
Signal-to-Noise Ratio 69 dB, Related at 1 Pa at 1 kHz (CCIR dB)
78 dB, Related at 1 Pa at 1 kHz (A-Weighted dB)
Maximum Input Sound Level 140 dB, Less than 0.5% THD (without Preattenuation)
150 dB, Less than 0.5% THD (with Preattenuation)
Power Requirements Phantom +48v (KM 100 Power Supply)
Output Impedance 50 Ohms
Output Connectors XLR-3 Type (KM 100 Power Supply)
Pad Yes, -10 dB Preattenuation
Low Frequency Roll-Off Use KM 100F Power Supply
Dimensions (LxDiameter) 3.68 x 0.88" (92 x 22mm)
Weight 2.82 oz. (80 g)
