Neumann M 147 Tube

by Neumann
Dostupnost: Isporuka 14-20 dana
SKU
SEN-008435

For General Studio Use
Large Diaphragm Condenser
Cardioid Polar Pattern
Vacuum Tube Based
Pressure Gradient DD Capsule
Transformerless Output Circuit
Allows Long Cable Runs
Minimizes Off-Axis Noise
Flat Freq. Response to Midrange
Enhanced Upper Frequency

3.250,00 € 2.600,00 €

Sadržaj pakiranja

  • Neumann M147 Tube Microphone
  • Swivel Stand Mount
  • Universal Power Supply
  • Cable
  • Aluminum Case

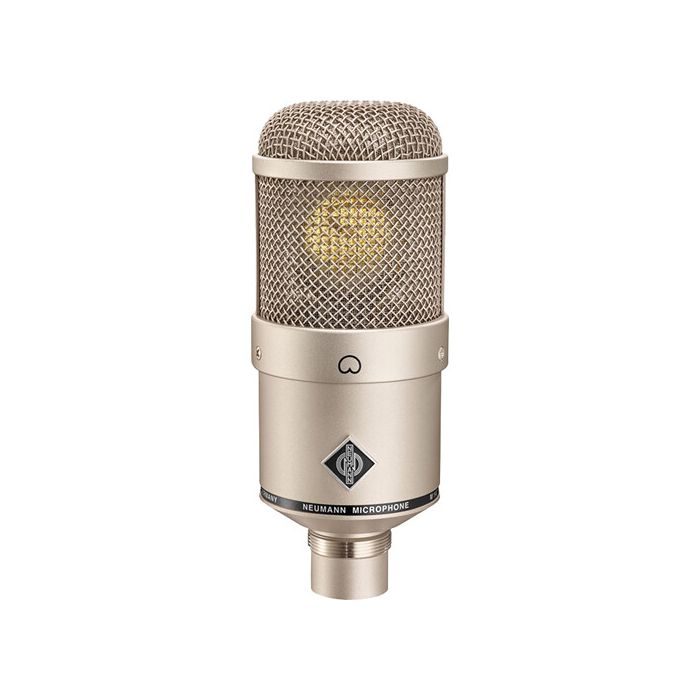

The M 147 Tube Microphone from Neumann is a vacuum tube large diaphragm condenser microphone with a cardioid polar pattern. The pressure gradient, dual diaphragm capsule is the K 47/49, inherited from the legendary U 47 and M 49 microphones. Following the tube is a transformerless output circuit providing low self-noise and high output gain without adding color to the signal.

The M 147 Tube delivers high output levels, allowing the microphone to feed cables up to 984.3' in length without signal degradation. The side address capsule features a cardioid polar pattern, which is effective in minimizing ambiance and noise coming from the off-axis sections of the microphone. The capsule features a flat frequency response to the upper mid-range, and a boost of up to 3 dB above 2 kHz. The M 147 Tube is a suitable microphone for recording vocals and general instruments such as strings, piano and wind instruments.

Tube Circuitry

The M 147 Tube features a combination of solid state and vacuum tube circuitry. The Vacuum tube design provides a type of warmth and definition not often found in solid-state circuitry.

K 47/49 Dual Diaphragm

Featuring the K 47/49 dual diaphragm, adapted from the legendary M 49 and U 47 Tube microphones. The M 147 maintains the level of sonic character at a modest price point.

Quality Output Circuitry

The Transformerless output design provides a low noise floor and output gain high enough to feed cables up to 984.3' in length without degradation in signal.

Cardioid Polar Pattern

The cardioid polar pattern effectively minimizes off-axis noise caused by room ambiance, instruments, monitors etc. The pattern offers a more generous pick up area with lower range frequencies.

N 149 A Power Supply

The Neumann N 149 A power supply effectively powers the microphone and is compatible with both the M 149 and 147 microphones.

Microphone
Operating Principle Pressure Gradient
Capsule Condenser
Polar Pattern Cardioid
Circuitry Tube
Performance
Frequency Range 20 Hz to 20 kHz
Maximum SPL 114 dB SPL
134 dB SPL
Impedance 50 Ohms
Load Impedance 1000 Ohms
Sensitivity 20 mV/Pa at 1 kHz into 1 Kilohms
Signal-to-Noise Ratio 70 dB CCIR
82 dB A-Weighted
Equivalent Noise Level 24 dB CCIR
12 dB A-Weighted
THD 0.5%
Connectivity
Output Connectors (Analog) 1 x XLR 3-Pin
Physical
Dimensions ø: 2.24 x L: 5.59" / ø: 57 x L: 142 mm
Weight 16.23 oz / 460 g
Packaging Info
Package Weight 11.65 lb
Box Dimensions (LxWxH) 16 x 14.1 x 6"
