Neumann M 150 Tube

by Neumann
Dostupnost: Isporuka 14-20 dana
SKU
SEN-008456

For General Studio Use
For Vocal/Instrument Recording
Titanium Diaphragm
Omnidirectional for Low Freq.
Narrow Mid/Upper Freq. Pattern
Warm Audio Character
Transformerless Output Circuit
Very Low Noise Floor

7.793,75 € 6.235,00 €

Sadržaj pakiranja

  • Neumann M 150 Tube Microphone
  • (N 149) Power Supply with Plug-In Mains Unit
  • 8-Core Microphone Connecting Cable
  • EA 170 Full Elastic Microphone Suspension
  • Protective Storage Case

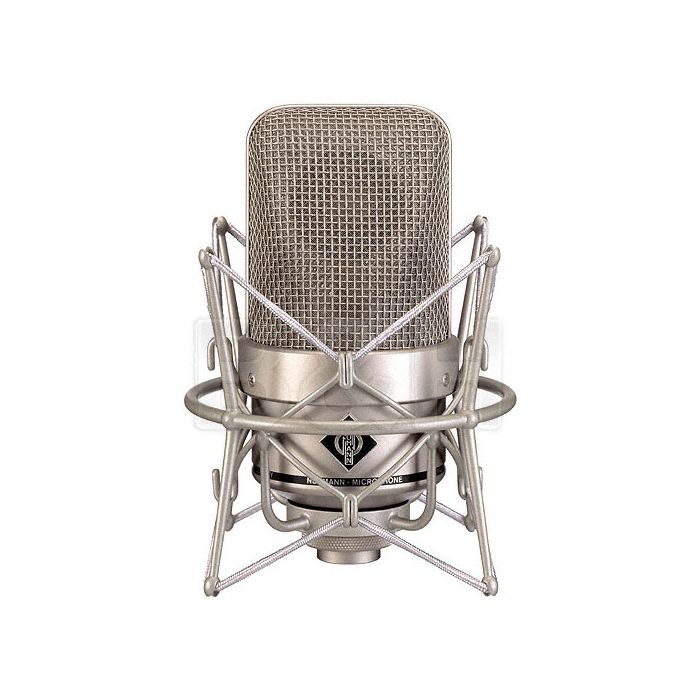

The M 150 Tube Microphone from Neumann is a modified omnidirectional, condenser tube microphone designed for vocal and general instrument recording in the studio. Designed after the classic M 50 tube microphone, the M 150 incorporates many of the features in a modern microphone. The M 150 features a transformerless tube amplifier based on the M 149. This results in warm transparent audio signal character with a very low noise floor.

The titanium diaphragm of the pressure capsule is 12mm in diameter and is exceedingly thin. As requested by top engineers, the head-grille is shaped just like that on the original M 50. The directional characteristic of the M 150 is totally unique; the microphone features a true omnidirectional pattern at low frequencies and becomes more narrow with mid and upper frequencies.

A General Studio Use Reproduction of a Classic


The Neumann M 150 Tube microphone is a specialized tube model for vocal and general instrument recording in the studio, designed after the classic M 50 tube microphone but incorporating many features of modern microphones.

Tube Circuitry

The M 150 tube design results in smooth warm audio character and the transformerless audio retains a high output while maintaining a low noise floor.

Titanium Pressure Diaphragm

The 12 mm titanium pressure diaphragm handles high sound pressure levels and provides detailed sound reproduction.

Modified Omnidirectional

The M 150 is a fully circular, omnidirectional microphone at lower frequencies and has a narrower pick up with mid and upper frequencies.

Microphone
Operating Principle Pressure Gradient
Diaphragm 0.47" / 12 mm
Polar Pattern Omnidirectional
Circuitry Tube
Performance
Frequency Range 20 Hz to 20 kHz
Maximum SPL 114 dB SPL
134 dB SPL
Impedance 50 Ohms
Load Impedance 1000 Ohms
Sensitivity 20 mV/Pa at 1 kHz into 1 Kilohms
Signal-to-Noise Ratio 66 dB CCIR
79 dB A-Weighted
Equivalent Noise Level 28 dB CCIR
15 dB A-Weighted
THD 0.5%
Connectivity
Output Connectors (Analog) 1 x XLR 3-Pin
Physical
Dimensions ø: 3 x L: 6.5" / ø: 76.2 x L: 165.1 mm
Weight 28.22 oz / 800 g
Packaging Info
Package Weight 13.55 lb
