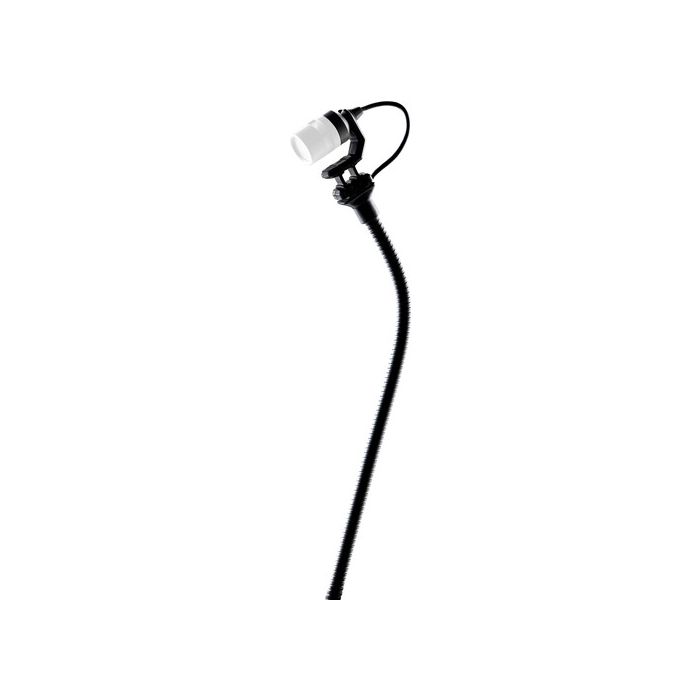

Neumann SH 150

The black Neumann SH 150 is a 6" flexible gooseneck for the MCM microphone system. The KK 14 capsule mounts on the gooseneck using a detachable screw connection. The built-in elastic suspension bracket is made of sophisticated plastic for excellent absorption of structure-born noise.

The SH 150 is wired internally with a cable terminated with a proprietary connector at one end to connect the KK 14 capsule and another proprietary connector at the other to connect one of the MCM output cable (available separately). An instrument-specific MCM clip (available separately) is required to mount the SH 150 on your instrument. The included KC 1 cable brace can be used to keep the cable neat and tidy away from the instrument, while preventing unwanted cable noise.

Required Instrument-Specific Mounts

• MC 1: Clip to mount the gooseneck on the body of a violin, viola, mandolin, and similar instruments.
• MC 2: Clip to mount the gooseneck on the strings of a cello below the bridge.
• MC 3: Clip to mount the gooseneck on the strings of a double bass below the bridge.
• MC 4: Clip to mount the gooseneck on the rib/body of a double bass or similar instrument.
• MC 5: Universal strap clip to mount the gooseneck on an oboe, clarinet, recorder, bassoon, flute, or harp.
• MC 6: Universal clamp to mount the gooseneck on the bell of a trumpet, trombone, saxophone, French horn, or on a percussion instruments or pole stand.
• MC 7: Clip to mount the gooseneck on the rim of a snare, tom, stand tom, or timpani.
• MC 8: Magnetic clip to mount the gooeseneck in an upright piano or grand piano.
• MC 9: Clip to mount the gooseneck to the body of a guitar, ukulele, dobro, acoustic bass, or cello.

Flexible Connectivity for Wired and Wireless Applications

Neumann offers four cables to connect the output of the gooseneck to either the MCM 100 XLR output stage module or to popular wireless transmitters including Sennheiser, Lectrosonics, Shure, Zaxcom, Wisycom, and others.

• AC 31 cable with locking, 3.5mm TRS connector for wireless transmitter and MCM 100 XLR output stage module
• AC 32 cable with LEMO 3-pin connector for wireless transmitter
• AC 33 cable with Microdot connector for wireless transmitter
• AC 34 cable with 4-pin mini-XLR connector for wireless transmitter
