PortKeys LEYE III Viewfinder
by PortKeysCamera EVF with 1440 x 900 Resolution, Integrated Canon LP-6 Battery Plate, Supports up to DCI 4K Input via HDMI, 2.4" LCD, 8-Bit Color, 450 cd/m² Brightness, 1100:1 Contrast, ARRI-Style, 1/4"-20 & NATO Rail Mounts, 3D LUT Support via USB Type-A, Histogram, False Color, Waveform, Image Flip & Image Crop, Eye Sponge, Durable Metal Construction
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder
- Self-Locking 4-Pin to D-Tap Power Cable
- HDMI Right-Angle Adapter
- Sponge Eye Cover
- USB Flash Drive

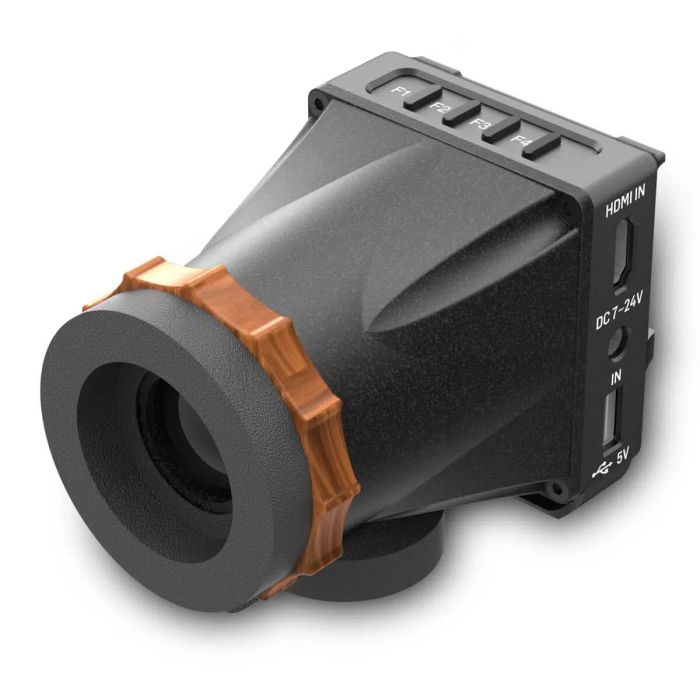

The LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder from PORTKEYS is a compact EVF with an HDMI input that allows you to view up to DCI 4K30 video originating from your camera's HDMI output. A 2.4" LCD screen with 1440 x 900 resolution, a 450 cd/m² brightness, and a 1100:1 contrast ratio provides crisp and vibrant images that can be viewed in bright shooting conditions.
The LEYE III's diopter provides -3 to +8 adjustment parameters, and the software boasts numerous functions such as waveform, histogram, scaling, flip, guides, zoom, and image flip and crop. Import 3D LUTs via its USB Type-A port with waveform optional detect data before or after loading 3D LUT.
A passive heatsink vent ensures adequate heat dissipation and improves overall performance. The rugged metal enclosure gives the electronic viewfinder a sturdy feel, and mounting on a vast variety of rigs is achieved via its ARRI-style anti-twist mount, a NATO accessory rail, or a 1/4"-20 thread. A self-locking 4-pin aviation-grade power connector to D-Tap cable is included for powering the EVF, and an integrated Canon LP-E6 plate gives you the option to power using a separately available battery. Also included are an HDMI right-angle adapter, a USB flash drive for updating firmware, and a soft, flat eye sponge for the viewfinder for viewing while wearing glasses.
- EVF with 1440 x 900 LCD screen; supports up to DCI 4K30 video input
- One HDMI input
- Soft eye sponge to allow viewing with glasses
- 2.4" screen size, 300 cd/m² brightness, 1100:1 contrast ratio, and 8-bit color depth
- 3D LUT import via USB Type-A port
- Waveform optional detect data before or after loading 3D LUT
- Passive heatsink vent for improved heat dissipation and performance
- Numerous software functions such as image flip, false color, histogram, tint, scaling, zebra, underscan, grids,
- image crop, and more
- Peaking no longer grabs guides
- -3 to +8 diopter adjustment
- ARRI-style accessory mount, 1/4"-20 thread, and NATO rail mounting
- Constructed from durable metal to withstand rough environments
- D-Tap to self-locking 4-pin aviation-grade power cable included
Color/Monochrome | Color |
Panel Type | LCD |
Display Size | 2.4" / 6.1 cm |
Screen Resolution | 1440 x 900 |
Aspect Ratio | 16:9 |
Touchscreen | No |
Maximum Brightness | 450 cd/m2 |
Contrast Ratio | 1100:1 |
Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
Pixels Per Inch (ppi) | 707 ppi |
Image Controls | Anamorphic De-Squeeze, Check Field, Color Temperature Selection, False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, OSD Flip, Pixel-to-Pixel Zoom, Scaling, Screen Markers, Underscan, Waveform, Zebra |
I/O
Video I/O | 1 x HDMI 1.4 Input |
Video Format | HDMI (8-Bit) DCI 4K: 30 UHD 4K 1080p 1080i 576p 576i 480p 480i |
Power I/O | 1 x Unspecified 4-Pin (24 VDC) Input |
Other I/O | 1 x USB-A 2.0 Input |
Optics
Diopter Correction | -3.0 to +8.0 |
Power
DC Input Power | 7 to 24 VDC |
Power Consumption | 3 W |
Environmental
Certifications | RoHS, FCC, CE *as per Manufacturer |
General
Mounting | 1 x 1/4"-20 Female 1 x Accessory Rail |
Material of Construction | Aluminum, Plastic |
Dimensions | 4.5 x 3.1 x 2.8" / 11.4 x 7.8 x 7 cm |
Weight | 8.2 oz / 233 g |
