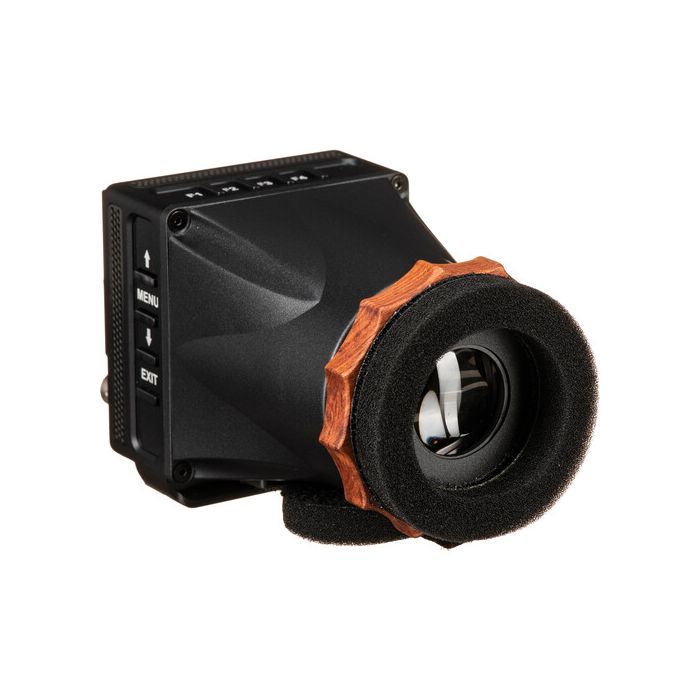

PortKeys LEYE SDI 2.4" LCD Viewfinder
by PortKeysThe Portkeys LEYE SDI electronic viewfinder offers a crisp viewing option for mirrorless cameras, Z CAM, BMPCC, Canon C70 or other camera lacking an integrated viewfinder.
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- PortKeys LEYE SDI 2.4" LCD Viewfinder
The Portkeys LEYE SDI electronic viewfinder offers a crisp viewing option for mirrorless cameras, Z CAM, BMPCC, Canon C70 or other camera lacking an integrated viewfinder.
This viewfinder has an HDMI input that supports up to UHD 4K30 video and an SDI input supporting up to 1080p60 video.
LEYE EVF features include selectable and user-defined LUT support via USB, 3G-SDI input interface,4-pin aviation connector power input, the D-Tap power cable provided, and a battery slot at the back. Image display tools include peaking, zebra, waveform, histogram, and vectorscope functions. The LEYE SDI EVF’s diopter adjusts from -8 to + 4, offering a wide range of eyesight correction that minimizes the need to wear glasses while operating your camera.
LCD Resolution | 1440 x 900 |
Size | 2.4″ |
FOV | 178º |
Diopter range | +8 to -3 |
HDMI | Input video resolution up to UHD 30fps |
SDI | Input video resolution up to 1080p60 |
USB (Type A) | Load user-defined LUTs |
Mounting Option | Metric Rosette with 1/4″-20 screw thread |
Input color depth | 8-bit |
Exposure tools | Zebra, False color, Waveform, Histogram, Vectorscope, Grids |
Other tools | Focus peaking, magnifier, tint, scaling, underscan, grids, and more |
Built-in LUTs | Selectable LUTs & user-defined LUTs |
Power Input | 4-pin aviation connector |
Power Consumption | 6W (maximum) |
LxWxH | 125 x 70 x 78mm (approximately) |
Net weight | 265 gram (approximately) |
