PortKeys LH7H Monitor

by PortKeys

Dostupnost: Isporuka 7-10 dana

SKU

PK-LH7H

7" HDMI 1920 x 1080 Touchscreen
Up to DCI 4K24/UHD 4K30 Video Input

290,00 € 232,00 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

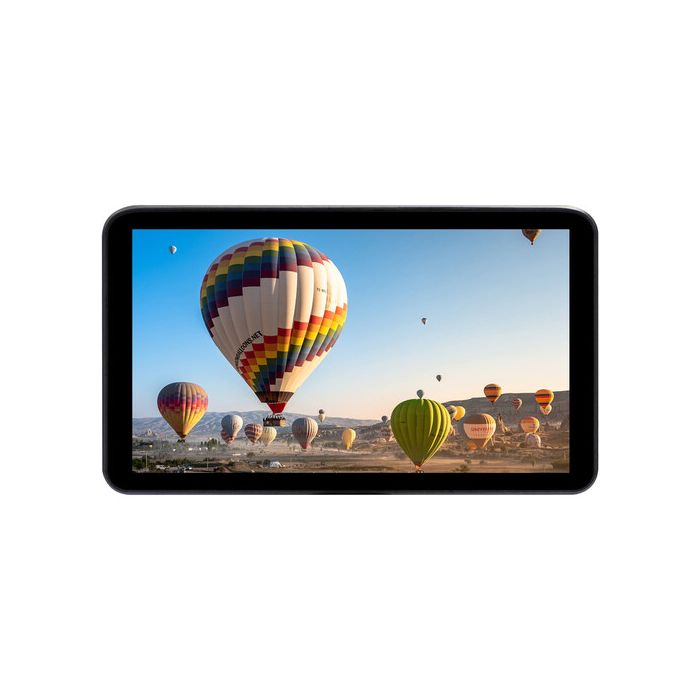

PORTKEYS LH7H 7" High-Bright Touchscreen Monitor
Micro-USB Flash Drive
2 x Screen Protector
HDMI Type-A Cable
MH-2 Monitor Shoe Mount
Cleaning Cloth
Storage Box

Opis

Add pro monitoring tools to your camera rig with the LH7H 7" High-Bright Touchscreen Monitor from PORTKEYS. This bright, 7" on-camera touchscreen display offers 1920 x 1080 resolution, 1000 cd/m² brightness, and the ability to input and output up to DCI 4K24 or UHD 4K30 video via HDMI.

The monitor is powered using the built-in L-series battery plate with a separately available battery, or it can be powered using an optional DC power supply. Other features include 3D LUT support, vertical shooting stretching, anamorphic correction on HDMI output, cropping, and a variety of image monitoring tools, including peaking, color temperature, waveform, histogram, and more.

High-Bright 7" Touchscreen Monitor

This 7" LCD on-camera monitor features 1000 cd/m² and a 1000:1 contrast ratio for daylight visibility.

DCI/UHD 4K Video

Supports HDMI input and output up to DCI 4K24 or UHD 4K30.

Sony L-Series Battery Plate

Power with the built-in L-Series battery plate or power your camera with a separately available dummy battery using the DC output.

Image Tools

3D LUT support with custom LUTs via USB
Peaking
False color
Luma
Waveform
Real-time eye focus
Anamorphic de-squeeze
Anamorphic lens calibration
Frame guides, crosshairs, grids
Color temperature
Brightness
Sharpness
Cropping
Check field
Zebra
Luma histogram
Custom RGB
Audio meters
HDR/HLG support

Specifikacije

Display
Panel Type	LCD
Display Size	7.0" / 17.8 cm
Resolution	1920 x 1080
Aspect Ratio	16:09
Viewing Angle	Horizontal: 170° (85/85)
	Vertical: 170° (85/85)
Touchscreen	Yes
Maximum Brightness	1000 nits / cd/m2
Contrast Ratio	1000:01:00
Bit Depth / Color Support	8-Bit+FRC (1.07 Billion Colors)
HDR Compatibility	Yes
Pixels Per Inch (ppi)	314 ppi
Image Controls	Anamorphic De-Squeeze, Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Image Flip, Waveform, Zebra
Inputs / Outputs
Video I/O	1x HDMI 1.4 Input
	1x HDMI 1.4 Output
Embedded Audio	HDMI
Audio I/O	1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x Barrel (24 VDC) Input
	1x USB-A (2 A / 5 VDC) Input
Other I/O	1x USB-A (Firmware/LUT Upload) [Shared with USB-A Power Input]
Media/Memory Card Slot	No
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No
Format Support
Video Format	HDMI
	DCI 4K: 24
	UHD 4K: 30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576p: 50
	576i: 50
	480p: 60/59.94/50
	480i: 60/59.94/50
Power
DC Input Power	7 to 24 VDC
Battery Type	1x L-Series
Power Consumption	8 W
Mounting
Mounting	2x 1/4"-20 Female
Environmental
Certifications	No
General
Material of Construction	Plastic
Dimensions	6.9 x 4.1 x 0.7" / 176.2 x 103.8 x 18.4 mm
Weight	8.6 oz / 245 g
