Proaim Spin-3

by Proaim
Dostupnost: Isporuka 7-10 dana
SKU
PR-PT-SPIN-3

Supporting Cameras weighing upto 15kg/33lbs

1.722,25 € 1.377,80 €

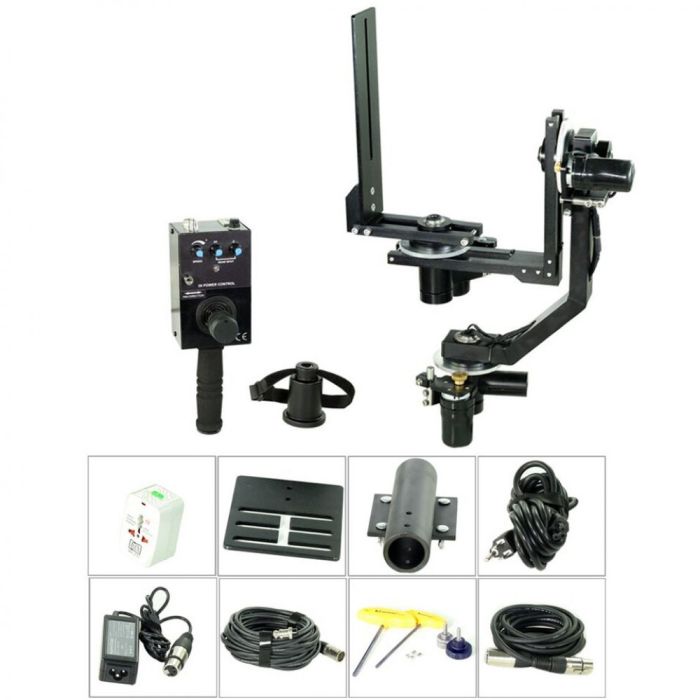

Sadržaj pakiranja

  • Proaim Spin-3 Axis Motorized Camera Pan Tilt Head
  • Joystick Controller
  • 12volt AC Adapter
  • 10 meter/33foot long Control Cable
  • 3 meter long 4pin XLR cable (for using 12VDC Battery Packs)
  • Camera Mounting Screw (1/4")
  • Worldwide Universal Adapter
  • Storage Case With Custom Fit Packing

The PROAIM introduces its Spin-3 (3-Axis) Motorized Camera Pan Tilt & Dutch Roll Head that offers 360-degree panning, tilting, and rolling ability while keeping your camera safe and secure. It is exceptionally engineered crane h ead to support cameras up to 15kg/ 33lb with ease. It features high-torque DC motors and a controller that provides smooth and accurate proportional joystick control. Creative flexibility is a built-in component as the Pan Tilt & Dutch Roll head can also be used with jib crane arms, tripods and in other remote operating situations that dictate increased production value. Basically, anywhere you want to place a camera and operate it from a remote position, Proaim Spin 3-axis Motorized Camera Head will accommodate.

Pan Tilt Head Material High Grade Aluminium
Maximum Camera Package Load Capacity 15kg/33lbs
Pan, Tilt, Roll Movement 360 degrees
Speed
Panning/Rotation Tilting/Rotation
Minimum 20 sec 1 min 33 sec
Maximum 5 sec 8 sec
Motors Three high torque DC motors 12V that rotates (pans), tilts & roll the head 360 degrees
Gears 3- Silver Big Gears (Dia- 100mm)
2- Brass Small Gears (Dia- 14mm),
1- Brass Small Pan Gear (Dia-22mm)
Minimum height of head 23.5 inches
Maximum height of head 25 inches
AC Adapter input AC 100 - 240V ; output - DC 12V -2A
Cable Length 10 meter
Cable Connector 6-Pin XLR
Battery Cable 3 Meter long
Camera Plate Size 12x3 inches, camera mount slot – 8”
Weight of 3-Axis head 5.7kg
Weight of Joystick box 815grm
Box Dimensions 73 X 49 X 21 cm

JOYSTICK CONTROLLER

Joystick Controller 3-Axis
Connectors 1x 4-Pin XLR male connectors
6 Pin XLR
Pan Direction Yes
Tilt Direction Yes
