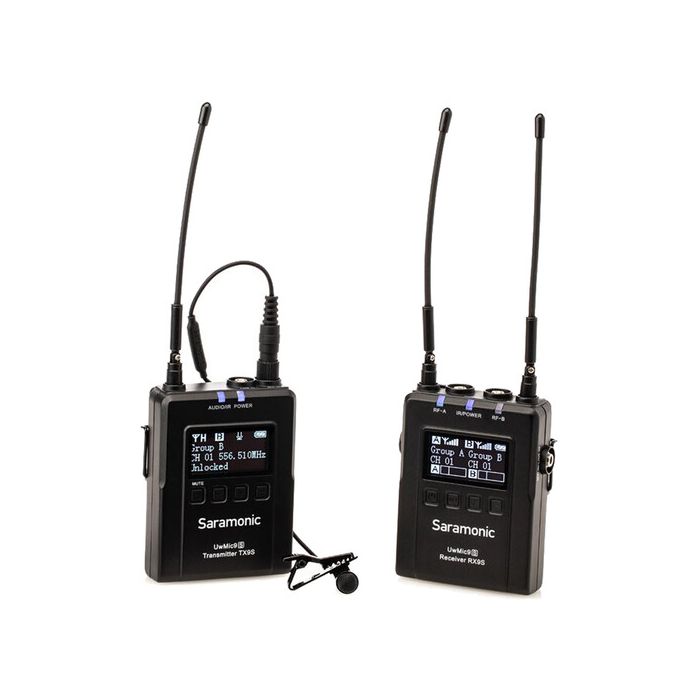

Saramonic UwMic9S Kit1 Mini TX9+RX9 (1x Lavalier)

by Saramonic
Dostupnost: Dostupno
SKU
SAR-UwMic9Mini1

The Saramonic UWMIC9S KIT1 Camera-Mount Wireless Omni Lavalier Microphone System provides video content creators, including YouTube and TikTok personalities, vloggers, wedding and corporate videographers, and mobile journalists with a high-quality-sounding, easy-to-use wireless solution.

395,00 € 316,00 €

Sadržaj pakiranja

  • Saramonic UWMIC9S KIT1 Camera-Mount Wireless Omni Lavalier Microphone System (514 to 596 MHz)
  • RX9S Dual-Channel Receiver
  • TX9S Bodypack Transmitter
  • DK3A Omnidirectional Lavalier Microphone
  • 2 x Alligator-Style Lavalier Microphone Clips
  • Fitted Metal Microphone Windscreen
  • 2 x Foam Windscreens with Fitted Gaskets
  • 2 x High-Wind Furry Windscreens with Elastic Fastening Clasps
  • 3 x Antennas
  • 2 x Belt Clips
  • Shoemount Adapter
  • Reusable Cable Wraps
  • SR-C2004 Dual Locking 3.5mm TRS to 3.5mm TRS Male Y-Cable (12")
  • SR-UM10-C35XLR Locking 3.5mm TRS Male to XLR Male Cable (1.3')
  • SR-UM10-C35 Locking 3.5mm TRS to 3.5mm TRS Coiled Cable (2.6')
  • 2 x USB Type-A to USB Type-C Charging Cables (3.9')
  • SR-C6 Impact-Proof and Watertight Equipment Case

The Saramonic UWMIC9S KIT1 Camera-Mount Wireless Omni Lavalier Microphone System provides video content creators, including YouTube and TikTok personalities, vloggers, wedding and corporate videographers, and mobile journalists with a high-quality-sounding, easy-to-use wireless solution that packs a host of professional features into an all-inclusive and cost-effective kit. Ideal for capturing dialogs, interviews, broadcasts, news, lectures, and speeches, this flexible system allows you to record one person talking directly to your camera or recorder.

The UWMIC9S KIT1 features lightweight, all-metal components built for the rough-and-tumble world of production. It includes one bodypack transmitter and one high-quality, DK3A miniature omnidirectional lavalier mic with a variety of foam and furry windscreens for indoor and outdoor shoots. The bodypack is equipped with dedicated, 3.5mm mic and line inputs that can be used individually or simultaneously to transmit a line and a mic signal combined together.

The two-channel, camera-mount receiver is equipped with two 3.5mm audio outputs. It comes with a variety of cables for connecting to DSLR/mirrorless cameras, professional camcorders, recorders, mixers, and audio interfaces with either 3.5mm or XLR microphone inputs. The receiver features an external mic/line input (with plug-in power), allowing you to mix a wired mic, mixer, or even a second wireless system into the camera with ease. If your camera doesn't have a headphone jack, you can monitor your sound via the receiver's 3.5mm headphone output while recording to ensure that you are capturing a clean signal.

A watertight, impact-proof hard case is provided to keep your system neatly packaged and protected during storage and transport.

Designed with simplicity in mind for both experienced and beginner videographers, the UWMIC9S KIT1 is easy to operate with minimal setup required, so you're ready to shoot right out of the box. The frequency scan function automatically searches two banks of 96 frequencies to find the cleanest frequency at your location for reliable transmission at up to 330'. The transmitter and receiver quickly sync via IR at the press of a button. Vivid and easy-to-read OLED displays on the transmitter and receiver let you make quick adjustments to the intuitive menus—in the brightest or darkest environments.

Both transmitter and receiver feature rechargeable 2000mAh lithium-ion batteries that run for up to 10 and 8 hours respectively. The batteries are recharged through the USB Type-C power ports, which will also power the components even while in use during extended shoots.

The system can be expanded with additional transmitters and receivers to allow up to 16 wireless microphones in use on set at one time.

Versatile and Lightweight TX9S Transmitter Works with Any Audio Source

  • The TX9S transmitter features dedicated locking 3.5mm mic and line-level inputs, allowing you to simultaneously transmit microphones and/or line-level signals wirelessly (both signals are combined).
  • The 9-step input gain control allows you to adjust your levels.
  • Connect the mic-level input to the included DK3A lavalier, a mini-shotgun microphone, headset microphone, or any 3.5mm TRS mic.
  • Connect the line-level input to mixers, music players, or any line-level device output you want to transmit wirelessly to the receiver.
  • Locking 3.5mm input connectors ensures that your lav or line-level device doesn’t detach at a critical moment.
  • The transmitter features a selectable High/Med/Low transmission power output setting, allowing users to conserve batteries and control wireless intermodulation that occurs when several transmitters operate near each other.
  • The On/Off switch can be used to mute the transmitter.
  • The built-in rechargeable battery provides up to 10 hours of operation. Use the USB Type-C port to charge and power the unit, even while in use.

Premium DK3S Omnidirectional Lavalier Mic

  • The DK3A omnidirectional lavalier microphone is designed to greatly enhance the sound quality of your productions with their high-quality sonic performance.
  • Featuring a low-profile, 4mm form factor, the lavalier offers a professional look and is easily concealed on camera.
  • The lavalier is tailored for speech, delivering a natural sound with high vocal intelligibility.
  • The omnidirectional pickup pattern helps to deliver consistent audio levels, even when the subject turns away form the mic.
  • Lavalier accessories include two alligator-style mic clips, a metal mesh windscreen, two fitted foam windscreens, two furry high-wind windscreens, and a cable wrap.

Versatile RX9S Dual Receiver with Advanced Connectivity and Functionality

  • The 3.5mm mic/line input with a 16-step level control and plug-in power enables you to connect and mix in a wired external mic, mixer, or audio source.
  • The 3.5mm headphone output lets you monitor the sound in real time.
  • The receiver features two locking 3.5mm outputs. Cables include a right-angle, locking 3.5mm TRS male to dual 3.5mm TRS male Y-cable, one locking 3.5mm TRS to 3.5mm TRS coiled cable, and two locking 3.5mm TRS to XLR male cables.
  • A selectable 150 Hz low-cut filter eliminates excessive low-frequency rumble and noise.
  • The two detachable whip antennas offer 360° positioning to help optimize wireless reception.
  • Physical group A & B power switches allow users to easily conserve power when using only one transmitter.
  • The rechargeable battery provides up to 8-hour runtime. The USB Type-C power port allows you to charge and power the unit, even while in use.
  • If you need to expand your system with a second microphone, the two-channel receiver allows you to save space on your shooting rig by using a single receiver to simultaneously receive signals from two mic/transmitters.
  • A selectable Mono/Stereo output lets you control how the audio is recorded. In mono, the two mics are mixed together and recorded as an identical mono signal on both the left and right channels in your camera. In stereo, each mic is kept separate and recorded discretely to the left and right channels in your camera.

System

Wireless Technology Analog UHF
Number of RF Channel Frequencies 192
Included Transmitters 1 x Bodypack with Microphone
Diversity Non-Diversity
RF Frequency Band 514 to 596 MHz
RF Channel Scanning Auto-Scan
Max Operating Range 328.1' / 100 m (Line of Sight)
Max Transmitters per Band 16
Built-In Recorder No
Latency 12 ms
Encryption None






Receiver Type Camera-Mount
Mounting Options Shoe-Mount (with Included Hardware)
Antenna 2 x 1/4 Wave Wire, Detachable (Top-Mount)
Number of Audio Channels 2
Audio I/O 2 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Mic/Line Input (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output (Lockable)
Audio Output Level -60 dBV
Frequency Response 40 Hz to 18 kHz ±3 dB
Word Clock I/O None
USB/Lightning Connectivity 1 x USB Type-C (Bus Power, Charging)
Spurious Rejection: -60 dB
Power Requirements Battery, Bus Power (USB)
Battery Type 1 x Built-In Rechargeable (Included)
Internal Battery Capacity 2000 mAh
Approx. Battery Life 8 Hours
Display & Indicators 1 x OLED (AF Level, Battery Status, Channel)
Housing Metal
Operating Temperature 32 to 122°F / 0 to 50°C
Storage Temperature -4 to 131°F / -20 to 55°C
Dimensions 8.7 x 2.5 x 1" / 220 x 64 x 25 mm
Weight 6.8 oz / 193 g

Receiver

Receiver Type Camera-Mount
Mounting Options Shoe-Mount (with Included Hardware)
Antenna 2 x 1/4 Wave Wire, Detachable (Top-Mount)
Number of Audio Channels 2
Audio I/O 2 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Mic/Line Input (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output (Lockable)
Audio Output Level -60 dBV
Frequency Response 40 Hz to 18 kHz ±3 dB
Word Clock I/O None
USB/Lightning Connectivity 1 x USB Type-C (Bus Power, Charging)
Spurious Rejection: -60 dB
Power Requirements Battery, Bus Power (USB)
Battery Type 1 x Built-In Rechargeable (Included)
Internal Battery Capacity 2000 mAh
Approx. Battery Life 8 Hours
Display & Indicators 1 x OLED (AF Level, Battery Status, Channel)
Housing Metal
Operating Temperature 32 to 122°F / 0 to 50°C
Storage Temperature -4 to 131°F / -20 to 55°C
Dimensions 8.7 x 2.5 x 1" / 220 x 64 x 25 mm
Weight 6.8 oz / 193 g

Transmitter

Transmitter Type Bodypack
RF Output Power 6 / 20 / 64 mW
Audio I/O 2 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
Muting Off/On Switch
Audio Input Level -4 to +20 dB (Mic Level)
-14 to +10 dB (Line Level)
Auto-Level Control No
Signal Processing High-Pass Filter:
150 Hz
Sync Method IR
Antenna 1 x 1/4 Wave Wire, Detachable (Beltpack)
Power Requirements Battery, Bus Power (USB)
Battery Type 1 x Rechargeable (Included)
Internal Battery Capacity 2000 mAh
Approx. Battery Life 10 Hours
USB/Lightning Connectivity 1 x USB Type-C (Bus Power, Charging)
Display & Indicators 1 x OLED (Audio Level, Battery Status, Channel, Group, High-Pass Filter)
Operating Temperature 32 to 122°F / 0 to 50°C
Storage Temperature -4 to 131°F / -20 to 55°C
Dimensions 8.7 x 2.5 x 1" / 220 x 64 x 25 mm
Weight 5.5 oz / 157 g

Microphone

Microphone Type Lavalier
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Omnidirectional
Frequency Range 20 Hz to 18 kHz
SNR 58 dB
Sensitivity -40 dB at 1 Hz
Output Connectors 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
Cable Length 5.9' / 180 cm
Operating Temperature -4 to 140°F / -20 to 60°C
