Seetec ATEM156S SDI monitor
by Seetec- 1920 x 1080 Resolution, 200 cd/m²
- 1 x HDMI & 4 x 3G-SDI Inputs
- 4 x 3G-SDI Outputs, 800:1 Contrast Ratio
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- FeelWorld 15.6" Multicamera Broadcast Director Monitor (Desktop Stand)
- Power Adapter
- V-Mount Battery Plate
- Mini-HDMI Cable
- SDI Cable
- Sun Hood
- Desktop Stand

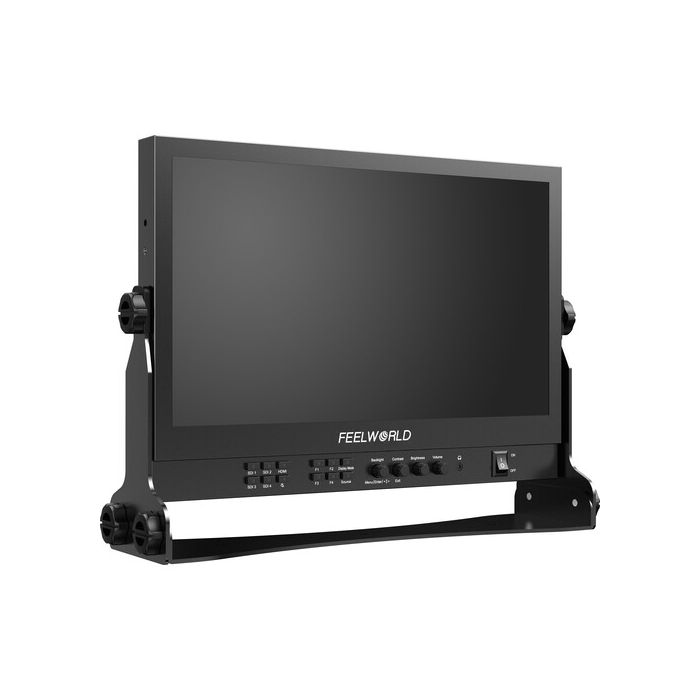

The 15.6" Multicamera Broadcast Director Monitor from FeelWorld features a quad-split display with a maximum resolution of 1920 x 1080 and 200 cd/m2 brightness. The rear panel contains one HDMI input, four 3G-SDI inputs, and four 3G-SDI outputs, and it supports quad-view and PiP display layouts so you can view inputs simultaneously. The included desktop stand allows you to adjust the monitor's tilt angle.
Professional monitoring tools such as focus peaking, markers, monochrome, R/G/B-only, pixel-to-pixel mapping, and image flip are built-in for analyzing your video and ensuring a proper image. A USB input allows you to add custom 3D LUTs and supports GPI and RS-485 control. A V-mount plate is built into the back for powering in the field, away from a mains source, and a VESA mounting pattern is on the back for alternate mounting options.
Key Features
15.6" 1920 x 1080 Full HD screen
Rugged aluminum housing; durable
Flexible and intuitive button operation; easy to use
Multiple display modes (single, PiP, quad)
Supports 3D LUT Log to REC.709 and user 3D LUT upload (up to 36)
Waveform, vectorscope, RGB histogram, focus assist, and monochrome functions; you can accurately expose and focus every shot
Multiple interfaces include four 3G-SDI inputs and outputs, one HDMI input, RS-485, and GPI
Stereo earphone output
VESA-standard mounting points support for bracket or hanging wall installations
Image Features
- Quad-split display (1P, 2P LR, 2P TB, 2P PIP, 4P)
- Peaking focus assist
- False color
- Anamorphic (1.33x, 1.5x, 1.8x, 2.0x)
- Display rotate (0, 90, 180, 270°, H/V mirror)
- Check field (red, green, blue, mono)
- Image freeze
- Zoom
- Pixel-to-pixel
- Center marker
- Screen marker (80, 85, 90, 93, 96%, 4:3, 2.39:1, 2.35:1, 1.85:1)
- Line color (red, green, blue, white)
FeelWorld ATEM156 Specs
Display
Panel Type |
IPS-Type LCD |
Display Size |
15.6" / 39.6 cm |
Resolution |
1920 x 1080 |
Aspect Ratio |
16:9 |
Viewing Angle |
Horizontal: 85° |
Touchscreen |
No |
Maximum Brightness |
200 cd/m2 |
Contrast Ratio |
800:1 |
Dot Pitch |
0.17925 x 0.17925 mm |
Bit Depth / Color Support |
8-Bit (16.7 Million Colors) |
HDR Compatibility |
None |
Pixels Per Inch (ppi) |
141 ppi |
Image Controls |
Anamorphic De-Squeeze, Blue Only, Check Field, False Color, Focus Assist, Focus Peaking, Green Only, Image Rotate, Red Only, Screen Markers, Screen Split - Half, Screen Split - Quarter |
I/O
Video |
4 x BNC (3G-SDI) Input |
Embedded Audio |
HDMI/SDI |
Audio |
1 x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker |
None |
Power I/O |
1 x Barrel (12 VDC) Input |
Other I/O |
1 x USB 2.0 (USB Type-A) Input |
Media/Memory Card Slot |
None |
Wi-Fi |
None |
Format Support
Video Format |
SDI |
Power
DC Input Power |
12 VDC |
Battery Type |
1 x V-Mount |
Power Consumption |
21 W |
Mounting
Mounting-Hole Pattern |
100 x 100 mm, 75 x 75 mm |
Environmental
Operating Temperature |
32 to 122°F / 0 to 50°C |
Storage Temperature |
-4 to 140°F / -20 to 60°C |
General
Dimensions |
14.6 x 10.3 x 1.1" / 372 x 262 x 28.4 mm, Excluding Case, Stand |
Weight |
3.99 lb / 1.81 kg, Excluding Case, Stand |
