Seetec P173-9HSD-CO SDI monitor
by Seetec- Full HD Display, up to 4K30 Input
- Protective Case for Efficient On-Set Use
- Removable from Case, Rack-Mountable
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- FeelWorld 17.3'' 4K Carry-On Broadcast Monitor
- Mini HDMI Cable
- V-Mount Battery Plate (Pre-Installed)
- 3A Power Adapter
- Tally Kit
- Sunshade
- Case

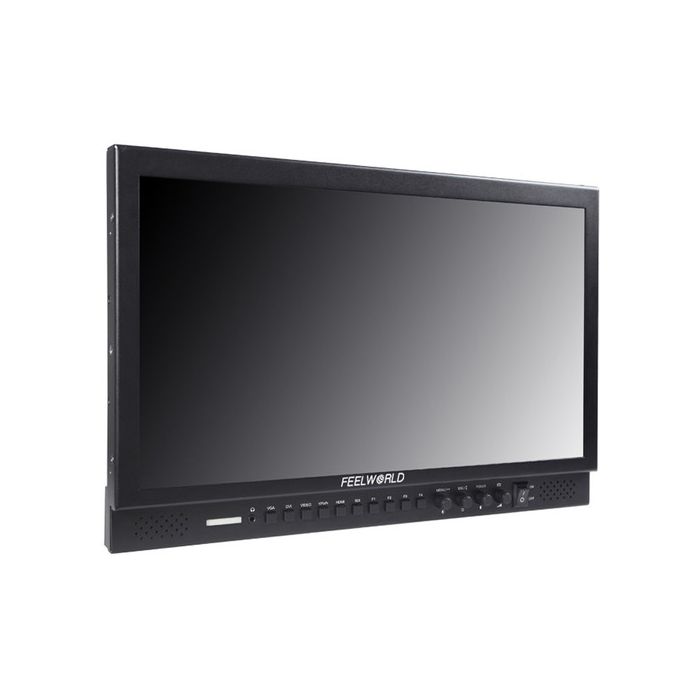

The 17.3" 4K Carry-On Broadcast Monitor from FeelWorld features a 1920 x 1080 display and supports up to UHD 4K30 signals. It comes screwed into a metal case designed to allow for efficient use while ensuring optimal heat dissipation and all-around protection on set. You can set it on the ground, lean it against something, set it down flat on a desktop or similar surface, and carry it from place to place using the top handle. The lid comes off completely when you unlock it at multiple locking points to provide a full view of the screen. Alternatively, the monitor can be unscrewed from the case and installed into a rack via the built-in handles and built-in rack ears.
The monitor offers HDMI, 3G-SDI, and analog inputs and outputs, RCA audio inputs, and a tally port. All these connections, plus an integrated V-mount battery plate and 4-pin XLR and barrel power inputs are accessible via a door on the rear of the case. A headphone jack and built-in speakers are available for audio monitoring, and a 3-color LED tally light is provided on the bottom of the front panel.
Image analysis functions include peaking focus assist, zoom, and pixel-to-pixel, and these are assignable across four function buttons on the front panel. A large collapsible sunshade is included for use outdoors or in bright indoor conditions.
Key Features
- Protective metal case ensures optimal heat dissipation
- Removable from metal case and rack-mountable via built-in rack ears and handles
- 1920 x 1080 resolution display
- Supports up to UHD 4K30 signals
- HDMI, 3G-SDI, component BNC, composite BNC, DVI, and RCA audio inputs
- HDMI, 3G-SDI, component BNC, composite BNC outputs
- 178 / 178° viewing angle
- Color depth: 16.7 million colors
- Tally port
- Built-in red/green/yellow LED tally indicators
- 3.5mm stereo headphone jack
- Built-in speakers
- Integrated V-mount plate
- 300 cd/m² brightness
- Includes collapsible sunshade
- 4-pin XLR and DC barrel power ports
Image Analysis Functions
- Peaking focus assist
- Check field
- Camera mode
- Pixel-to-pixel
- Center marker
- Safe marker (80, 85, 90, 93, 96, 2.35:1)
- Image flip (horizontal, vertical, and horizontal and vertical)
- Image freeze
- Zoom all
- U/D and L/R zoom
FeelWorld P 9HSD Monitor Specs
Panel Type | LCD |
Display Size | 17.3" / 43.9 cm |
Resolution | 1920 x 1080 |
Aspect Ratio | 16:9 |
Viewing Angle | Horizontal: 178° Vertical: 178° |
Touchscreen | No |
Maximum Brightness | 300 cd/m2 |
Contrast Ratio | 700:1 |
Dot Pitch | 0.1989 x 0.1989 mm |
Video | 1 x HDMI Type A (HDMI 1.4) Input 1 x BNC (3G-SDI) Input 1 x 3BNC (Component) Input 1 x BNC (Composite) Input 1 x DVI-I Input 1 x HDMI Type A (HDMI 1.4) Output 1 x BNC (3G-SDI) Output 1 x 3BNC (Component) Output 1 x BNC (Composite) Output |
Embedded Audio | HDMI SDI |
Audio | 1 x 2RCA Input 1 x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker | 2 |
Power I/O | 1 x XLR 4-Pin Input 1 x Barrel Input |
Other I/O | 1 x Tally (DE-9/DB-9) |
Media/Memory Card Slot | None |
Video Format | HDMI DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 1080PsF: 24/23.98 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 480p 576i 480i SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 1080PsF: 24/23.98 720p: 60/59.94/50/30/29.97/25/24/23.98 576i 480i |
DC Input Power | 9 to 24 VDC |
Battery Type | 1 x V-Mount |
Power Consumption | 26 W (Maximum) |
Operating Temperature | 14 to 122°F / -10 to 50°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Dimensions | 16.8 x 11.7 x 1.4" / 42.6 x 29.7 x 3.5 cm 19.7 x 12 x 9.1" / 50 x 30.5 x 23 cm, Including Case |
Weight | 23.59 lb / 10.7 kg, Including Case |
Package Weight | 29.46 lb |
Box Dimensions (LxWxH) | 22.7 x 15.9 x 12.1" |
