Seetec P173-9HSD SDI monitor
by Seetec- 17.3" 1920x1080 IPS LCD
- Supports 4K, HD, and SD Formats
- SDI, HDMI, DVI, YPbPr, Composite Inputs
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- FeelWorld P173-9HSD 17.3" Broadcast LCD Monitor
- Power Supply
- V-Mount Battery Plate
- Mini HDMI Cable
- Tally Kit
- Sunshade
- U-Bracket

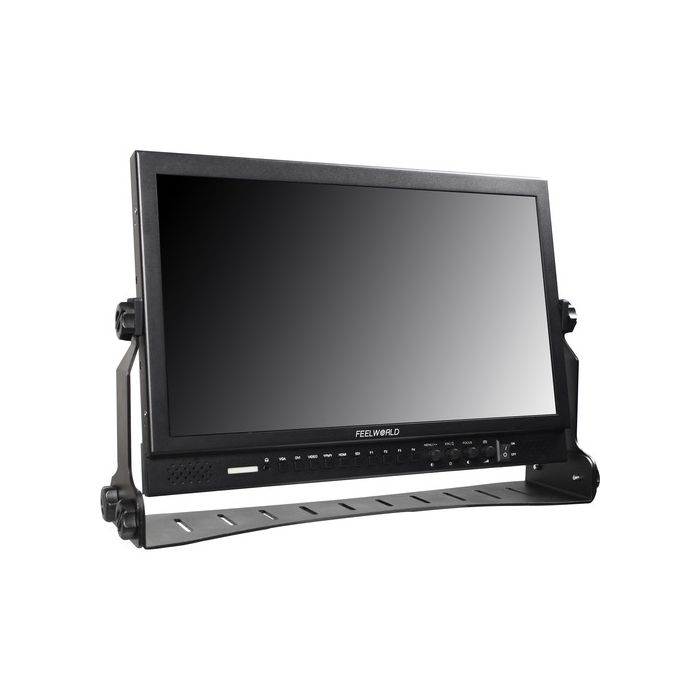

Featuring a full-HD IPS LCD panel, the FeelWorld P173-9HSD 17.3" Broadcast LCD Monitor can be used for 4K, HD, as well as SD workflows in studio, broadcast, and other professional video applications. The rear panel contains SDI, HDMI, DVI, component, and composite inputs, and outputs are available for SDI, HDMI, component and composite. The HDMI input will accept both DCI and UHD 4K signals for high-resolution productions. A separate audio input for analog stereo audio is available via RCA connections. A tally input can be used for studio integration.
Professional monitoring tools such as focus peaking, markers, monochrome, R/G/B-only, pixel-to-pixel mapping, and image flip are built-in for analyzing your video and ensuring a proper image. A V-mount plate is built into the back for powering in the field, away from a mains source. If shooting outdoors attach the included sunhood for optimal contrast. A U-bracket is also included for convenient tabletop mounting.
Monitoring Tools
- Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
- R/G/B-only and monochrome viewing modes
- Camera scaling mode
- Pixel-to-pixel mapping
- Aspect ratio and title-safe markers
- Image flip
- Image freeze
FeelWorld P 9HSD Monitor Specs
Panel Type | TFT LCD |
Display Size | 17.3" / 43.9 cm |
Resolution | 1920 x 1080 |
Aspect Ratio | 16:9 |
Viewing Angle | Horizontal: 160° Vertical: 140° |
Maximum Brightness | 400 cd/m2 |
Contrast Ratio | 600:1 |
Dot Pitch | 0.1989 x 0.1989 mm |
Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
Image Controls | Blue Only, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers |
Video | 1 x BNC (3G-SDI) Output 1 x HDMI Type A Output 1 x 3BNC (Component) Output 1 x BNC (Composite) Output 1 x BNC (3G-SDI) Input 1 x HDMI Type A Input 1 x 3BNC (Component) Input 1 x DVI-I Input 1 x BNC (Composite) Input |
Audio | 1 x RCA Input 1 x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker | 2 |
Media/Memory Card Slot | None |
Video Format | HDMI DCI 4K: 23.98/24 UHD 4K: 23.98/24/25/29.97/30 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080PsF: 23.98/24 1080i: 50/59.94/60 720p: 29.97/30/50/59.94/60 576p 576i 480p 480i SDI 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080PsF: 23.98/24 1080i: 50/59.94/60 720p: 23.98/24/25/29.97/30/50/59.94/60 480i 576i |
DC Input Power | 9 to 24 VDC |
Battery Type | None |
Power Consumption | 26 W (Maximum) |
Mounting-Hole Pattern | 100 x 100 mm |
Operating Temperature | 14 to 122°F / -10 to 50°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Dimensions | 16.3 x 11 x 1.4" / 414 x 280 x 35.1 mm |
Weight | 6.06 lb / 2.75 kg 7.28 lb / 3.3 kg, Including Bracket |
Package Weight | 11.5 lb |
Box Dimensions (LxWxH) | 20.5 x 16.2 x 6.4" |
