Sennheiser ew 100 G4-CI1-B
by SennheiserEM 100 G4 Rackmount Receiver, SK 100 G4 Bodypack Transmitter, Ci 1 Instrument Cable
1680 Tunable Frequencies Across 42 MHz, Auto Frequency Scan Finds Open Bands
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- GA 3 Rackmount Kit for G3 100/300/500 Series
- 2-Year Warranty
- EM 100 G4 Wireless UHF True Diversity Rackmount Receiver
- Power Supply
- 2 x Rod Antennas
- RJ 10 Cable
- GA 3 Rackmount Kit for G3 100/300/500 Series
- Limited 2-Year Warranty
- SK 100 G4 Wireless Bodypack Transmitter
- 2 x AA Batteries
- Limited 2-Year Warranty
- CI1 1/8" Mini to 1/4" Male Jack Guitar Connecting Cable

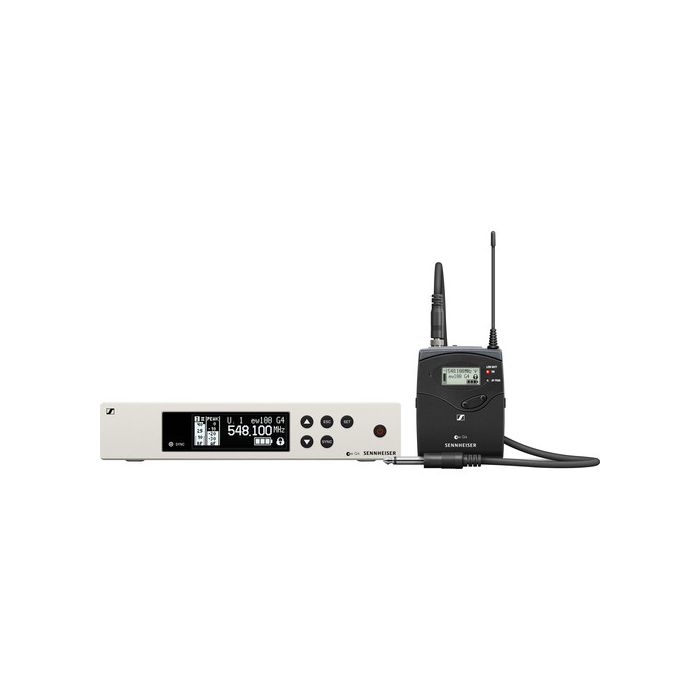

The ew 100 G4 Wireless Instrument System with Ci 1 Guitar Cable from Sennheiser is the latest addition to their evolution family of wireless kits that is fully compatible with all previous series. This system includes an EM 100 G4 UHF diversity rackmount receiver, an SK 100 G4 bodypack transmitter, a Ci 1 instrument cable with 1/4" phone connector, a GA3 rackmount kit, and an RJ10 linking cable. It is designed to provide dependable wireless performance for guitars and other instruments for rehearsals, recording, stage, and other applications.
The transmitter and receiver synchronize channel and frequency at the touch of a button. The bodypack allows you to charge the (optional) rechargeable battery pack while it remains in the transmitter. A high-contrast LCD display allows for easy operation under dimly-lit conditions and its user-friendly menu makes operation quick and easy.
In addition, the ew 100 G4 also includes some handy guitar-specific features. The system's cable emulator feature allows you to adjust virtual cable lengths to get sound-response similar to a cable. Another practical feature for guitarists is the built-in guitar tuner, right on the display. A built-in 5-band EQ allows you to fine tune your sound even further. Bass players, in particular, will be pleased with the enhanced AF frequency response: it starts at 25 Hz, which will especially please players with 5-string bass guitars.
Frequency Band | B: (626 to 668 MHz) |
Type of Receiver | EM 100 G4 half-rack mountable true diversity UHF |
Receiving Frequency | Maximum 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels |
Switching Bandwidth | Up to 42 MHz |
Nominal/Peak Deviation | ±24 kHz / ±48 kHz |
Receiver Type | True diversity |
Sensitivity | < 2.5 μV for 52 dBA (with HDX, peak deviation) |
Adjacent Channel Selectivity | Typically ≥ 65 dB |
Intermodulation Attenuation | Typically ≥ 65 dB |
Blocking | ≥ 70 dB |
Squelch | Low: 5 dB µV Middle: 15 dB µV High: 25 dB μV |
Pilot Tone | Squelch: Can be switched off |
Antenna Inputs | 2 x BNC sockets |
Compander | Sennheiser HDX |
EQ Presets | Switchable, act on line and monitor outputs Preset 1: Flat Preset 2: Low Cut (-3 dB at 180 Hz) Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High Boost (+6 dB at 10 kHz) |
Signal to Noise Ratio | ≥ 110 dBA (1 mV, peak deviation) |
Total Harmonic Distortion (THD) | ≤ 0.9% |
AF Output | 1/4" (6.3 mm) jack socket unbalanced, +12 dBu XLR socket balanced, +18 dBu |
Output Range | AF Out: 48 dB (3 dB steps) |
Temperature Range | 14 to 131°F (-10 to 55°C) |
Power Supply | 12 VDC, 300 mA |
Dimensions (W x L x H) | 7.48 x 8.35 x 1.69" (190 x 212 x 43 mm) |
Weight | 2.16 lb (980 g) |
