Sennheiser EW-DX SK / SKM-S BASE SET (Q1-9)

by Sennheiser
Dostupnost: Isporuka 14-20 dana
SKU
SEN-509462

Up to 12 hours of operation time with rechargeable lithium ion battery BA 70 (included)
 Mode with 300 kHz spacing for up to 293 channels
Up to 88 MHz switching bandwidth
Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)

2.000,00 € 1.600,00 €

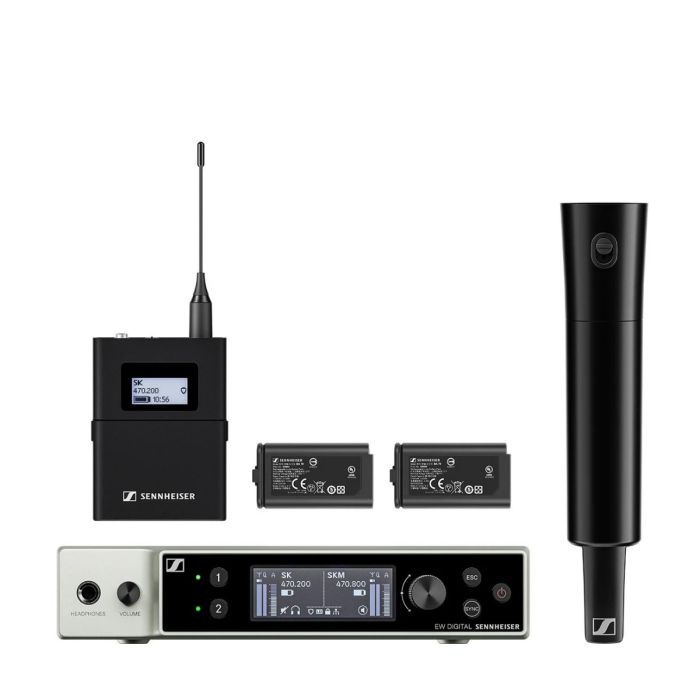

Sadržaj pakiranja

  • EW-DX EM 2 rack receiver
  • EW-DX SKM-S handheld transmitter
  • EW-DX SK bodypack transmitter
  • EW-D Power Supply with country adapters
  • 2 BA 70 rechargeable battery packs
  • MZQ 1 microphone clamp
  • 2 rod antennas
  • GA 3 rack mount Kit
  • 4 rubber feetw

Raising the bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market.

Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing – simpler than it sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems.

Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other.

This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App.

Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies and decades of research to deliver a digital UHF system that can be scaled with ease.

With its advanced feature set and hardware options, classrooms, corporate campuses, and live productions benefit from a network-ready system that is designed to integrate seamlessly.

The system quickly assesses your environment and uses equidistant channel spacing to deploy frequencies while tools like Sennheiser’s Control Cockpit, Wireless Systems Manager, and Smart Assist App allow you to monitor your system remotely.

In-device charging, 12-hour battery operation, and switching bandwidth up to 88 MHz are only a few more of the many features that make EW-DX the right tool for the job.



Audio link frequency ranges Q1-9: 470.2 - 550 MHz
  R1-9: 520 - 607.8 MHz
  S1-10: 606.2 - 693.8 MHz
  S2-10: 614.2 - 693.8 MHz
  S4-10: 630 - 693.8 MHz
  U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
  V3-4: 925.2 - 937.3 MHz
  V5-7: 941.700- 951.800 & 953.050 - 956.050 &
  956.650-959.650 MHz
  Y1-3: 1785.2 - 1799.8 MHz
Bluetooth® Low Energy (BLE) frequency range 2405 - 2480 MHz
Audio frequency response 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Total harmonic distortion (THD) ≤ -60 dB for 1 kHz @ -3 dBfs input level
Dynamic range 134 dB
System Latency

1.9 ms


RF technology Intelligent Switching Diversity
Operating temperature -10 °C - +55 °C (14 °F - 131 °F)
Operating relative humidity 5 - 95 % (non-condensing)
Input voltage range

11 - 13 V ⎓ or PoE IEEE 802.3af Class 0


Input Current

≤ 1A


Transmit power (radiated)

BLE: max. 10 mW EIRP


Audio output power Ethernet
Ethernet RJ-45 socket, IEEE802.3
  100Base-TX (half+full duplex)
  10Base-T (half+full duplex)
  (CAT5e or higher)
Dimensions 212 x 44 x 189 mm
Weight approx. 1000 g (2.2 lbs) (without antennas and power supply)
Input voltage 2.0 - 4.35 V
Input Current ≤ 300 mA
Power supply 2 AA batteries 1.5 V (alkaline manganese)
  BA 70 rechargeable battery pack
Occupied bandwidth 200 kHz
Transmit power (radiated) Audio link: 10 mW ERP
  (Range Y1-3): 12 mW ERP
  LD mode: 10 mw ERP
  BLE: max. 10 mW EIRP
Dimensions 50 x 268 mm (incl. MMD 835 microphone module)
  40 x 200 mm (without microphone module)
Weight w/o batteries approx. 304 g (incl. MMD 835 microphone module)
  approx. 195 g (without microphone module)
Input voltage 2.0 - 4.35 V
Input Current ≤ 300 mA
Power supply 2 AA batteries 1.5 V (alkaline manganese)
  BA 70 rechargeable battery pack
Occupied bandwidth 200 kHz
Transmit power (radiated) Audio link: 10 mW ERP
  (Range Y1-3): 12 mW ERP
  LD mode: 10 mw ERP
  BLE: max. 10 mW EIRP
Dimensions 63 x 80 x 20 mm (without antenna)
Weight approx. 120 g (without batteries)
