Sennheiser EW-DX SK / SKM-S BASE SET (R1-9)
by SennheiserUp to 12 hours of operation time with rechargeable lithium ion battery BA 70 (included)
Mode with 300 kHz spacing for up to 293 channels
Up to 88 MHz switching bandwidth
Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

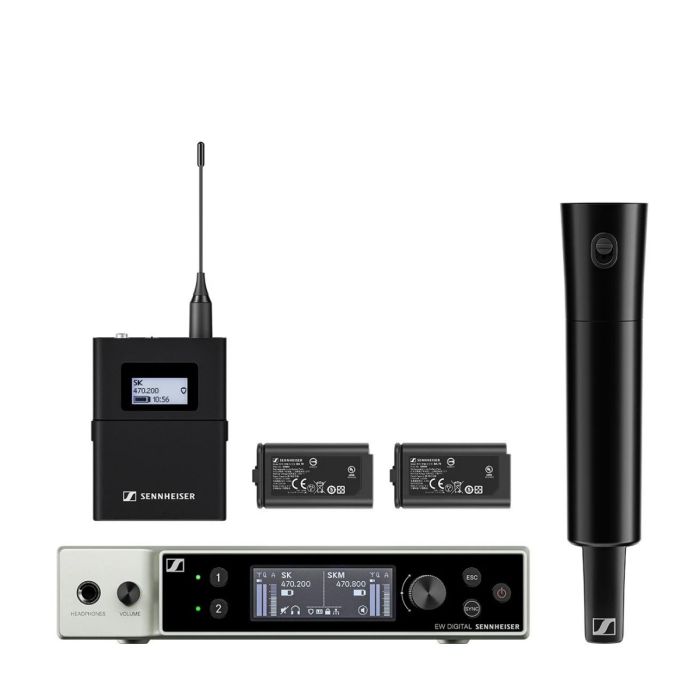

Sadržaj pakiranja
- EW-DX EM 2 rack receiver
- EW-DX SKM-S handheld transmitter
- EW-DX SK bodypack transmitter
- EW-D Power Supply with country adapters
- 2 BA 70 rechargeable battery packs
- MZQ 1 microphone clamp
- 2 rod antennas
- GA 3 rack mount Kit
- 4 rubber feetw
Raising the bar
Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market.
Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.
Equidistant Spacing – simpler than it sounds
Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems.
Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other.
This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.
Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App.
Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies and decades of research to deliver a digital UHF system that can be scaled with ease.
With its advanced feature set and hardware options, classrooms, corporate campuses, and live productions benefit from a network-ready system that is designed to integrate seamlessly.
The system quickly assesses your environment and uses equidistant channel spacing to deploy frequencies while tools like Sennheiser’s Control Cockpit, Wireless Systems Manager, and Smart Assist App allow you to monitor your system remotely.
In-device charging, 12-hour battery operation, and switching bandwidth up to 88 MHz are only a few more of the many features that make EW-DX the right tool for the job.
Flexibility for Those Who Want to Choose the Capsule That Best Meets Their Needs.
Base Set for digital wireless applications featuring 2-channel receiver, handheld and bodypack transmitter for use with a wide range of Evolution Wireless Digital microphone heads.
Audio link frequency ranges | Q1-9: 470.2 - 550 MHz | |||||
R1-9: 520 - 607.8 MHz | ||||||
S1-10: 606.2 - 693.8 MHz | ||||||
S2-10: 614.2 - 693.8 MHz | ||||||
S4-10: 630 - 693.8 MHz | ||||||
U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz | ||||||
V3-4: 925.2 - 937.3 MHz | ||||||
V5-7: 941.700- 951.800 & 953.050 - 956.050 & | ||||||
956.650-959.650 MHz | ||||||
Y1-3: 1785.2 - 1799.8 MHz | ||||||
Bluetooth® Low Energy (BLE) frequency range | 2405 - 2480 MHz | |||||
Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs | |||||
Total harmonic distortion (THD) | ≤ -60 dB for 1 kHz @ -3 dBfs input level | |||||
Dynamic range | 134 dB | |||||
System Latency |
1.9 ms |
|||||
RF technology | Intelligent Switching Diversity | |||||
Operating temperature | -10 °C - +55 °C (14 °F - 131 °F) | |||||
Operating relative humidity | 5 - 95 % (non-condensing) | |||||
Input voltage range |
11 - 13 V ⎓ or PoE IEEE 802.3af Class 0 |
|||||
Input Current |
≤ 1A |
|||||
Transmit power (radiated) |
BLE: max. 10 mW EIRP |
|||||
Audio output power | Ethernet | |||||
Ethernet | RJ-45 socket, IEEE802.3 | |||||
100Base-TX (half+full duplex) | ||||||
10Base-T (half+full duplex) | ||||||
(CAT5e or higher) | ||||||
Dimensions | 212 x 44 x 189 mm | |||||
Weight | approx. 1000 g (2.2 lbs) (without antennas and power supply) | |||||
Input voltage | 2.0 - 4.35 V | |||||
Input Current | ≤ 300 mA | |||||
Power supply | 2 AA batteries 1.5 V (alkaline manganese) | |||||
BA 70 rechargeable battery pack | ||||||
Occupied bandwidth | 200 kHz | |||||
Transmit power (radiated) | Audio link: 10 mW ERP | |||||
(Range Y1-3): 12 mW ERP | ||||||
LD mode: 10 mw ERP | ||||||
BLE: max. 10 mW EIRP | ||||||
Dimensions | 50 x 268 mm (incl. MMD 835 microphone module) | |||||
40 x 200 mm (without microphone module) | ||||||
Weight w/o batteries | approx. 304 g (incl. MMD 835 microphone module) | |||||
approx. 195 g (without microphone module) | ||||||
Input voltage | 2.0 - 4.35 V | |||||
Input Current | ≤ 300 mA | |||||
Power supply | 2 AA batteries 1.5 V (alkaline manganese) | |||||
BA 70 rechargeable battery pack | ||||||
Occupied bandwidth | 200 kHz | |||||
Transmit power (radiated) | Audio link: 10 mW ERP | |||||
(Range Y1-3): 12 mW ERP | ||||||
LD mode: 10 mw ERP | ||||||
BLE: max. 10 mW EIRP | ||||||
Dimensions | 63 x 80 x 20 mm (without antenna) | |||||
Weight | approx. 120 g (without batteries) |
