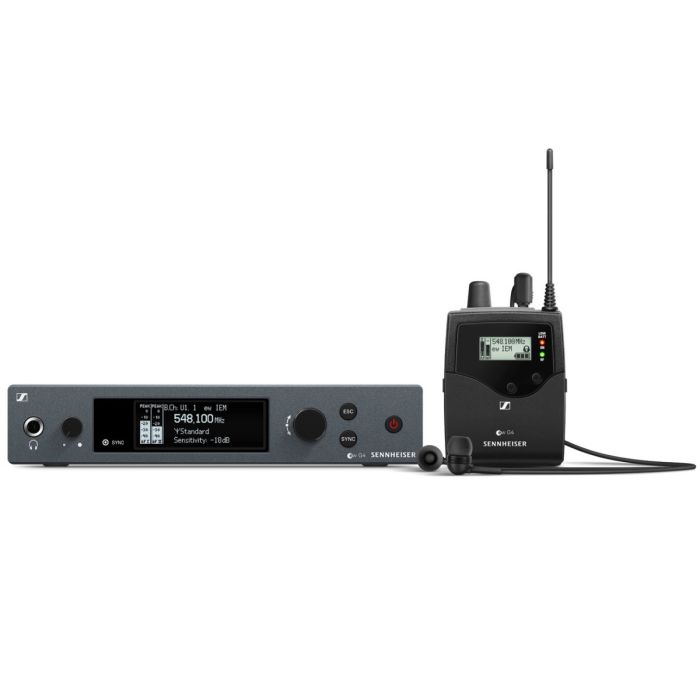

Sennheiser ew IEM G4-B
by Sennheiser- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- SR IEM G4 stereo transmitter
- EK IEM G4 stereo receiver
- IE 4 earphones
- 2 AA batteries
- rod antenna
- GA 3 rackmount set
- quick guide
- safety guide
- manufacturer declaration sheet
Full control over your performance – your direct link, everywhere, everyday. The G4 In-Ear Monitoring Sets make your gig an extraordinary experience – not just for your audience, but also for you.
Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage.
Features
-
Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.
-
Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage
-
Half-rack stereo transmitter in a full-metal housing with OLED display for full control
-
Easy and flexible wireless synchronization between transmitter and receiver via infrared
-
Compatible with Sennheiser WSM control software for flexible frequency allocation
-
Up to 16 compatible channels
-
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
-
Transmission Range: up to 100 meters / 300 feet
-
High RF output power (up to 30 mW) depending on country regulations
SR IEM G4 Stereo Transmitter (G: 626 to 668 MHz)
Modulation | Wideband FM stereo (MPX pilot tone) |
Frequency Band | B: 626 to 668 MHz |
Receiving Frequency | Maximum 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation 6 frequency banks with up to 16 programmable channels |
Switching Bandwidth | up to 42 MHz |
Nominal/Peak Deviation | ±24 kHz / ±48 kHz |
MPX Pilot Tone | 19 kHz/ ±5 kHz (frequency/deviation) |
Frequency Stability | ±10 ppm |
Antenna Output | BNC socket, 50 Ohms |
RF Output Power | @ 50 Ohms Switchable: Low: Typical 10 mW Standard: Typical 30 mW High: Typical 50 mW |
Compander | Sennheiser HDX |
AF Frequency Response | 25 Hz to 15 kHz |
AF Input | Electronically Balanced 2 x XLR-1/4" / 6.3 mm balanced combo jack Balanced AF in L +Mono Balanced AF in R |
Maximum Input Level | +22 dBu |
Total Harmonic Distortion (THD) | ≤ 0.9 % |
Signal to Noise Ratio | Approximately >90 dB (nominal load and peak deviation) |
AF Output | 1/4" / 6.3 mm stereo jack socket balanced Loop out balanced L, loop out balanced R |
Temperature Range | 14 to 131°F / -10 to 55°C |
Power Supply | 12 VDC |
Current Consumption | Maximum 350 mA |
Dimensions (W x L x H) | 8.0 x 8.3 x 1.7" / 202 x 212 x 43 mm |
Weight | 2.2 lb / 980 g |
