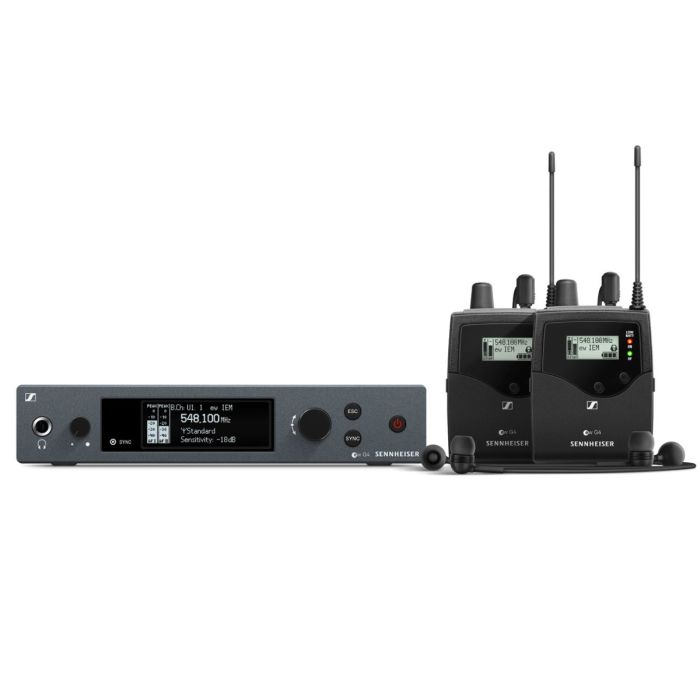

Sennheiser ew IEM G4-TWIN-B

by Sennheiser
Raspoloživost: Isporuka 7-10 dana
SKU
SEN-509616
Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.
10.125,00 kn 8.100,00 kn

Sadržaj pakiranja

  • SR IEM G4 stereo transmitter
  • 2 EK IEM G4 stereo receiver
  • 2 IE 4 earphones
  • 4 AA batteries
  • rod antenna
  • GA 3 rackmount set
  • quick guide
  • safety guide
  • manufacturer declaration sheet

Full control over your performance – your direct link, everywhere, everyday. The G4 In-Ear Monitoring Sets make your gig an extraordinary experience – not just for your audience, but also for you.
Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage.

Features

  • Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.

  • Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage

  • Half-rack stereo transmitter in a full-metal housing with OLED display for full control

  • Easy and flexible wireless synchronization between transmitter and receiver via infrared

  • Compatible with Sennheiser WSM control software for flexible frequency allocation

  • Up to 16 compatible channels

  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range

  • Transmission Range: up to 100 meters / 300 feet

  • High RF output power (up to 30 mW) depending on country regulations

Receiver
Frequency Band A: 626 - 668 MHz
Receiving Frequency Maximum 1680 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 16 factory-preset channels, no intermodulation
6 frequency banks with up to 16 programmable channels
Switching Bandwidth Up to 42 MHz
Nominal/Peak Deviation ±24 kHz / ±48 kHz
Receiver Type Adaptive diversity
Sensitivity < 4 μV, typ. 1.6 μV for 52 dBA (with HDX, peak deviation) rms s/n
Adjacent Channel Selectivity Typically ≥ 65 dB
Intermodulation Attenuation Typically ≥ 70 dB
Blocking ≥ 80 dB
Pilot Tone Squelch: Can be switched off
Squelch 5 to 25 dBµV, adjustable in steps of 2 dB
Compander Sennheiser HDX
Signal to Noise Ratio Approximately 90 dBA (1 mV, peak deviation)
Total Harmonic Distortion (THD) ≤ 0.9 %
Audio Output Power 2 x 100 mW at 32 Ohms (@ 2.4 V, 5 % THD, nominal deviation)
Quality Setting Range +8 dB at 80 kHz
Limiter -18 dB to -6 dB, adjustable in steps of 6 dB, can be switched off
Temperature Range 14 to 131°F / -10 to 55°C
Power Supply 2 x AA batteries, 1.5 V or BA 2015 accupack
Current Consumption At Nominal Voltage: Approximately 140 mA
With Transmitter Switched Off: ≤ 25 µA
Operating Time Approximately 4 to 6 hours (depending on volume level)
Dimensions (W x L x H) 3.2 x 2.5 x 0.9" / 82 x 64 x 24 mm
Weight 4.4 oz / 125 g




SR IEM G4 Stereo Transmitter (B: 626 to 668 MHz)
Modulation Wideband FM stereo (MPX pilot tone)
Frequency Band A: 626 to 668 MHz
Receiving Frequency Maximum 1680 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 16 factory-preset channels, no intermodulation
6 frequency banks with up to 16 programmable channels
Switching Bandwidth up to 42 MHz
Nominal/Peak Deviation ±24 kHz / ±48 kHz
MPX Pilot Tone 19 kHz/ ±5 kHz (frequency/deviation)
Frequency Stability ±10 ppm
Antenna Output BNC socket, 50 Ohms
RF Output Power @ 50 Ohms Switchable:
Low: Typical 10 mW
Standard: Typical 30 mW
High: Typical 50 mW
Compander Sennheiser HDX
AF Frequency Response 25 Hz to 15 kHz
AF Input Electronically Balanced
2 x XLR-1/4" / 6.3 mm balanced combo jack
Balanced AF in L +Mono
Balanced AF in R
Maximum Input Level +22 dBu
Total Harmonic Distortion (THD) ≤ 0.9 %
Signal to Noise Ratio Approximately >90 dB (nominal load and peak deviation)
AF Output 1/4" / 6.3 mm stereo jack socket balanced
Loop out balanced L, loop out balanced R
Temperature Range 14 to 131°F / -10 to 55°C
Power Supply 12 VDC
Current Consumption Maximum 350 mA
Dimensions (W x L x H) 8.0 x 8.3 x 1.7" / 202 x 212 x 43 mm
Weight 2.2 lb / 980 g
