Sennheiser XSW 1-908-E
by SennheiserSK-XSW Bodypack Transmitter
EM-XSW 1 UHF Receiver
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Sennheiser XSW 1-908-A UHF Wireless Brass Set with e908T Gooseneck Mic (E-Band: 821 - 832/ 863 - 865 MHz)
- e908T Cardioid Gooseneck Microphone
- NT12-5 CW Power Supply
- 2 x AA Batteries

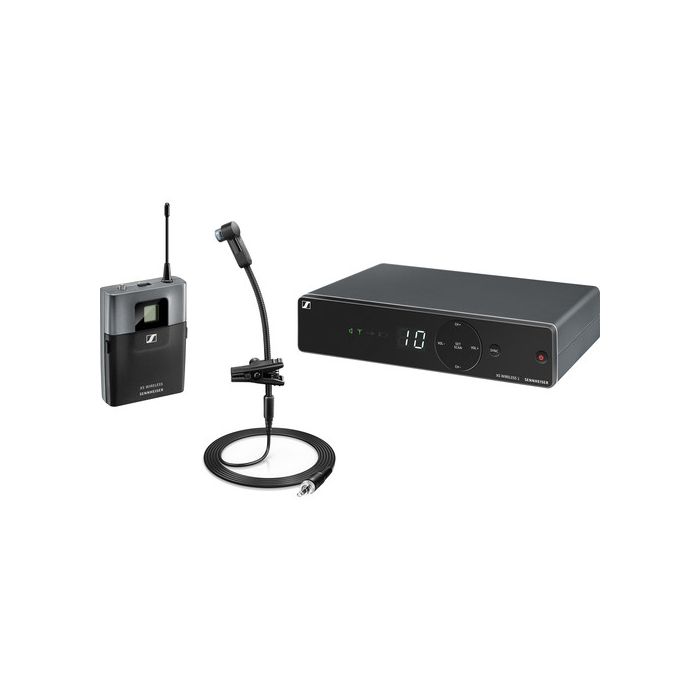

The XSW 1-908-E UHF Wireless Brass Set with e908T Gooseneck Mic from Sennheiser is an easy to use all-in-one wireless system for brass and woodwind instruments. It can be used in live sound applications, allowing freedom of movement for live stage, theater, rehearsals, and more.
The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an e908T cardioid gooseneck microphone. It is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel. Up to 10 compatible channels are available. Additionally, an AC power adapter and two AA batteries are also included.
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
- Diversity reception
| Microphone | |
| Type | Condenser |
| Polar Pattern | Cardioid |
| Total Harmonic Distortion (THD) | ≤ 0.9% |
| System | |
| Modulation | Wideband FM |
| Frequency Range |
E-Band: 821 - 832/ 863 - 865 MHz
|
| Switching Bandwidth | Up to 24 MHz |
| Signal to Noise Ratio | ≥ 103 dBA |
| Total Harmonic Distortion | ≤ 0.9% |
| Temperature Range |
Operation: 32 to 104°F (0 to +40°C)
|
| Storage |
-4 to 158°F (-20 to 70°C)
|
| Transmitter Synchronization |
2.4 GHz, Low Power OQPSK (only active during synchronization)
|
| Receiver | |
| Principle |
Double superheterodyne
|
| Diversity |
Antenna switching diversity via internal antennas
|
| Sensitivity |
< 3 μV at 52 dBA RMS S/N (at peak deviation)
|
| Frequency Response | 50 Hz to 16 kHz (-3 dB) |
| Max Output Voltage |
At Peak Deviation, 1 kHz AF
|
|
1/4" (6.3 mm) Jack Socket (unbalanced): +6 dBu
|
|
|
XLR Socket (balanced): +12 dBu
|
|
| Adjustment Range |
Audio: 45 dB, adjustable in 5-dB steps
|
| Power Supply |
12 VDC nominal/300 mA
|
| Squelch |
Adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
|
| Line/Mic Level | 20 dB, switchable |
| Material of Construction | ABS housing |
| Dimensions |
7.9 x 1.7 x 5.0" (200 x 42 x 127 mm)
|
| Weight | 12 oz (340 g) |
| Bodypack Transmitter | |
| Output Power | 10 mW |
| Frequency Response | Line: 50 Hz to 16 kHz |
| Mic: 50 Hz to 16 kHz | |
| Audio Input |
1/8" (3.5 mm) jack socket
|
| Input Voltage |
Mic/Line at 3% THD: Typ. 1.V RMS mic / typ. 2.6 V RMS line at -30 dB gain
|
| Power Supply | 2 x AA batteries, 1.5 V |
| Operating Time | Approximately 10 hours |
| Adjustment Range |
Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps
|
| Material of Construction | Rugged ABS housing |
| Dimensions |
2.8 x 3.8 x 1.1" (71 x 96 x 28 mm)
|
| Weight | 3.4 oz (95 g) |
| Packaging Info | |
| Package Weight | 2.95 lb |
| Box Dimensions (LxWxH) | 13.6 x 13.5 x 3.5" |
- Novo
