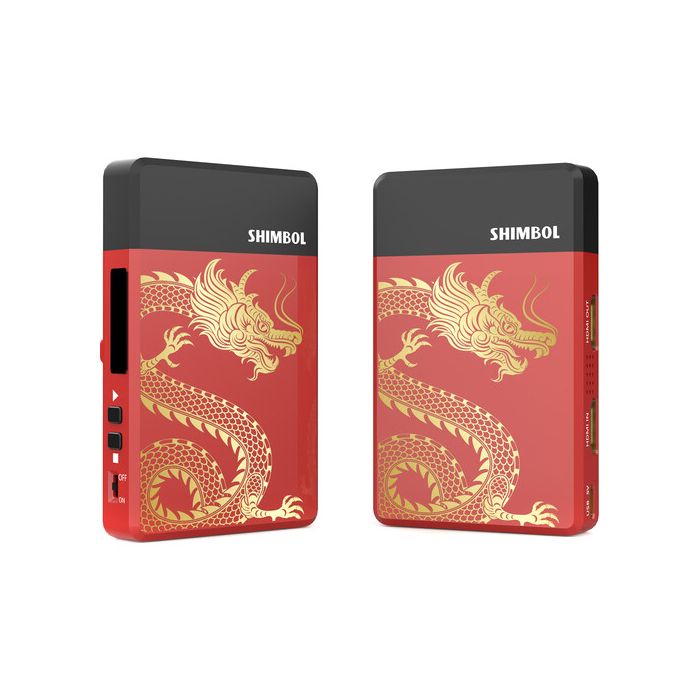

Shimbol TP Mini 600' HDMI Wireless Video Transmission System
by ShimbolTransmitter and Receiver Set
Transmit up to 1080p60 Video
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Shimbol TP Mini 600' HDMI Wireless Video Transmission System
- Transmitter
- Receiver
- USB-C Power Cable
- 2 x Sticker
Add up to 1080p60 wireless video transmission to your gimbal, mirrorless, or DSLR camera rig using the lightweight TP Mini 600' HDMI Wireless Video Transmission System from Shimbol. The transmitter provides HDMI input and features a line-of-sight transmission up to 600' to the receiver using the free 5 GHz wireless band with low 70ms latency, and it features an HDMI loop-through output. The receiver features two HDMI outputs for viewing on a monitor or sending the feed to a switcher.
An OLED display on the side of each unit displays the status of the wireless signal. You can power each unit using an L-series battery, or you can utilize a separately available power source using the 5V USB-C input. The antennas are built into the units, so they are compact and easy to install and transport.
| Video I/O |
Transmitter: 1x HDMI (Unspecified Signal) Input
|
|
Transmitter: 1x HDMI (Unspecified Signal) Output
|
|
|
Receiver: 2x HDMI (Unspecified Signal) Output
|
|
| Embedded Audio | HDMI |
| Latency | 70 ms |
| Video Format | HDMI |
| 1080p: 60/50/30/25/24 | |
| 1080i: 60/50 | |
| 720p: 60/50 | |
| Show Less | |
| Battery Type |
Transmitter/Receiver: 1x L-Series
|
| Power Consumption | Transmitter: 2.5 W |
| Receiver: 2 W | |
| Mounting |
Not Specified by Manufacturer
|
| Inputs/Outputs | |
| Video I/O |
Transmitter: 1x HDMI (Unspecified Signal) Input
|
|
Transmitter: 1x HDMI (Unspecified Signal) Output
|
|
|
Receiver: 2x HDMI (Unspecified Signal) Output
|
|
| Embedded Audio | HDMI |
| Audio I/O | No |
| Power I/O |
Transmitter/Receiver: 1x USB-C (5 VDC) Input
|
|
Transmitter/Receiver: 1x USB-C (5 VDC) Input
|
|
| Encryption | No, |
| Wireless | |
| Wireless Range |
600' / 182.9 m (Line-of-Sight)
|
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | US: 5.1 to 5.8 GHz |
| Latency | 70 ms |
| RF Power | < 17 dBm |
| RF Sensitivity | -85 dBm |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Cellular Support | No |
| Format Support | |
| Video Format | HDMI |
| 1080p: 60/50/30/25/24 | |
| 1080i: 60/50 | |
| 720p: 60/50 | |
| Audio Format |
Not Specified by Manufacturer
|
| Timecode Support | No |
| Power | |
| Battery Type |
Transmitter/Receiver: 1x L-Series
|
| Power Consumption | Transmitter: 2.5 W |
| Receiver: 2 W | |
| Mounting | |
| Mounting |
Not Specified by Manufacturer
|
| General | |
| Environmental Resistance | No |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Material of Construction | Aluminum |
| Dimensions |
Transmitter/Receiver: 4.1 x 2.5 x 0.6" / 103 x 63.5 x 15 mm
|
| Weight |
Transmitter/Receiver: 4.23 oz / 120.00 g
|
| Packaging Info | |
| Package Weight | 0.815 lb |
| Box Dimensions (LxWxH) | 6 x 4.2 x 3.7" |
