Shimbol ZO1000

by Shimbol
Dostupnost: Dostupno

1 x Transmitter and 1 x Receiver Set
Transmits up to 1080p60 Video
SDI and HDMI In/Out, USB-C UVC Output
Up to 300 m Line-of-Sight Transmission
Low 80ms Latency

Akcija traje do 30. 09. 2023. ili do isteka zaliha!
Regularna cijena 589,00 €/4.437,82kn * Najniža cijena u zadnjih 30 dana Akcijska cijena 500,00 €/3.767,25kn 400,00 €/3.013,80kn
Tečaj konverzije: 1 EUR = 7,53450 HRK

Sadržaj pakiranja

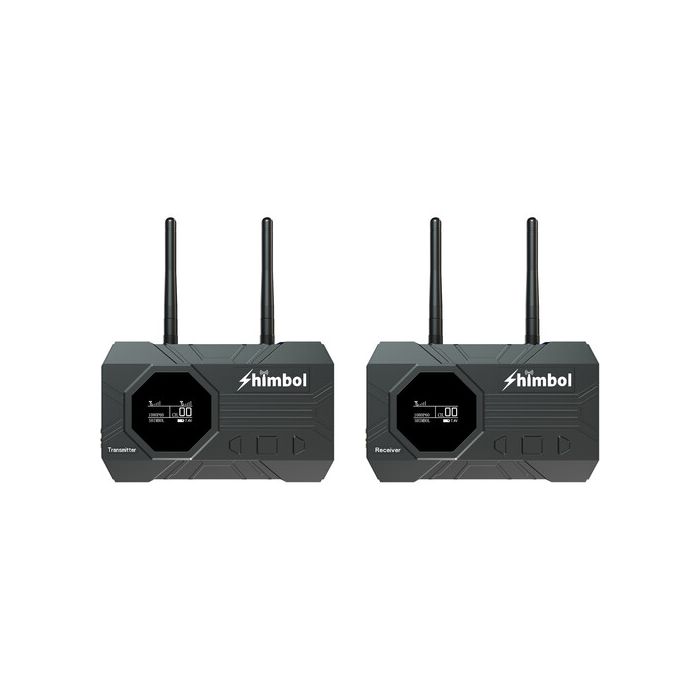

  • Shimbol ZO1000 SDI/HDMI Wireless Video Transmitter and Receiver Kit
  • ZO1000 Transmitter
  • ZO1000 Receiver
  • 5 x Antenna
  • USB-C Power Cable

Shimbol ZO1000 Overview

Access up to 1080p60 wireless video transmission using your gimbal, mirrorless, or DSLR camera rig and the ZO1000 SDI/HDMI Wireless Video System from Shimbol. The transmitter provides both HDMI and SDI inputs and the receiver offers SDI, HDMI, and USB-C UVC outputs. This one transmitter and one receiver kit features low 80ms latency with line-of-sight transmission up to 1000', embedded audio, and AES encryption. The transmitter can be used with a 2nd, optional receiver or your iOS device and the receiver's USB-C port can linked to your computer for live streaming using a third-party platform.

The compact transmitter and receiver each feature a bright OLED display, 1/4"-20 mounting threads, and detachable antennas. Each unit can be powered using a USB Type-C source or by using a separately available Sony NP-F (L-series type) battery using the integrated battery plates.

1000' Range
Provides an impressive line-of-sight transmission range of up to 1000'.

HD Video Transmission
Transmits up to 1080p60 SDI or HDMI video to a maximum of two receivers.

iOS Compatibility
Transmit to your iPhone or iPad using the Shimbol app.

USB-C UVC Capture
Connect the receiver to your computer via its USB-C port to stream video using a third-party platform.

  • WPA-128-Bit AES encryption for keeping your transmission secure.
  • 2-channel, 48KHz embedded audio transmission.
  • Low 80ms latency.
Versatile Power
Power the transmitter and receiver units using a Sony NP-F (L-Series type) battery or via the USB-C port.
Panel Type Transmitter/Receiver: OLED
Resolution Not Specified by Manufacturer
Aspect Ratio Not Specified by Manufacturer
Touchscreen No
Inputs / Outputs
Video I/O Transmitter: 1 x HDMI Input
  Transmitter: 1 x BNC Input
  Receiver: 1 x HDMI Output
  Receiver: 1 x BNC Output
Audio I/O None
Power Transmitter: 1 x USB-C (2 A / 5 VDC) Input
  Receiver: 1 x USB-C (2 A / 5 VDC) Input
Encryption 128-Bit AES
Wireless Range 1000' / 304.8 m
Frequency Range 5.1 to 5.8 GHz
Latency 80 ms
RF Power 17 dBm
RF Sensitivity -80 dBm
Wi-Fi None
Bluetooth None
Mobile App Compatible Yes: iOS Only
  App Name: Shimbol
*As of February, 2023: Check with manufacturer for the most up-to-date compatibility
Format Support
Video Format HDMI
  1080p: 60/50/30/25/24
  1080i: 60/50
  720p: 60/50
  1080p: 60/59.94/50/30/29.97/25/24/23.98
  1080PsF: 30/29.97/25/24/23.98
  1080i: 60/59.94/50
  720p: 60/50
  1080p: 60/50/30/25/24
Audio Format 2-Channel 48 kHz
Timecode Support No
DC Input Power 5 VDC at 2 A
Battery Type Transmitter/Receiver: 1 x L-Series
Power Consumption Transmitter/Receiver: 4 W (Maximum)
Mounting 1 x 1/4"-20 Female
IP Rating None
Certifications FCC, CE, UKCA, RoHS
  *as per Manufacturer
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 80%
Storage Temperature -4 to 140°F / -20 to 60°C
Material of Construction Aluminum
Dimensions Transmitter/Receiver: 4.3 x 2.6 x 1.2" / 110 x 66.5 x 29.5 mm
Weight 5.9 oz / 168 g
Weight Transmitter/Receiver: 5.9 oz / 168 g
