SKAARHOJ ATEM GPI & Tally Interface Breakout Board

SKAARHOJ ATEM GPI & Tally Interface Breakout Board

by Skaarhoj

Dostupnost: Isporuka 14-20 dana

SKU

ATEM-GPITally-BO-Board

For Use with ATEM GPI & Tally Interface
8 x GPI Phoenix Inputs
8 x GPO Phoenix Outputs
DC Plug for External Power

312,00 € 249,60 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

SKAARHOJ ATEM GPI and Tally Interface Breakout Board

Opis

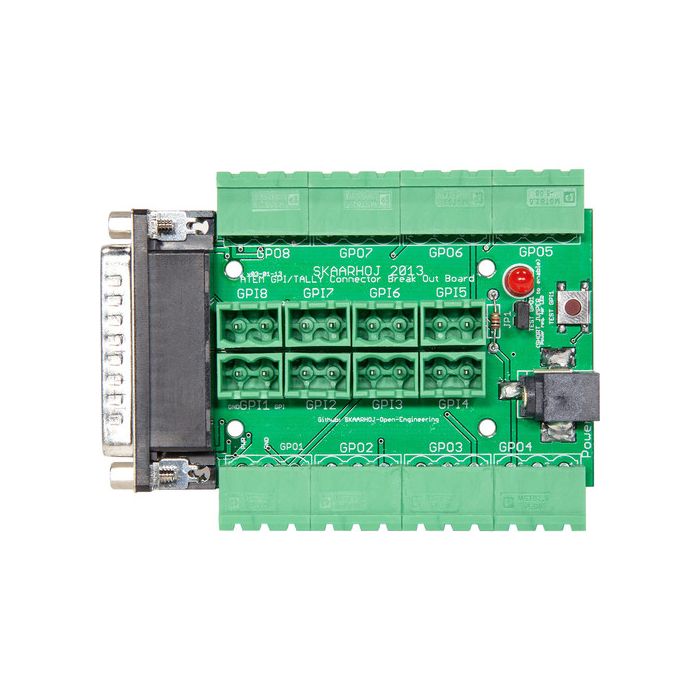

The ATEM GPI and Tally Interface Breakout Board from SKAARHOJ connects through the 25-pin D-Sub connector port to ATEM GPI and tally interfaces, ETH-GPI Link series, and Blackmagic Design GPI/tally boxes. The ATEM GPI and tally interface provides an easy interface for individual tally lamp control to your ATEM. It features eight sturdy onboard GPI Phoenix input connectors and eight GPO Phoenix output connectors, plus a DC plug for external power. The board features a confirmation LED which lights up when tally is on input 1, and a push button which lets you test the GPI of input 1.

Specifikacije

SKAARHOJ ATEM-GPITALLY-BO-BOARD Specs
Compatibility	ATEM GPI and Tally Interface
	ETH-GPI Link Series
	Blackmagic Design GPI/Tally Boxes
Connectors	1 x 25-Pin D-Sub Male, I/O Interface
	8 x 2-Pin Male Phoenix, GPI Input
	8 x 3-Pin Male Phoenix, GPO Output
	1 x 5.5 mm DC Barrel, Power Input
Indicators	1 x LED, Tally GPO Output 1
Control	1 x Button, Test GPI Input 1
Packaging Info
Package Weight	0.35 lb
Box Dimensions (LxWxH)	7.7 x 4.7 x 2.4"
