SKAARHOJ PTZ Fly w/Hall Effect Joystick and SDI option

by Skaarhoj
Dostupnost: Isporuka 14-20 dana
SKU
PTZ-Fly-JS-V1
  • High-Quality backlit encoders with widescreen OLED displays
  • 3-Axis joystick
  • Programmable four-way buttons with bright OLED displays
2.302,75 € 1.842,20 €

Sadržaj pakiranja

  • PTZ Fly-js-v1
  • 12V power supply
  • USB programming cable
  • Networking cable
  • UniSketch OS
  • Manual

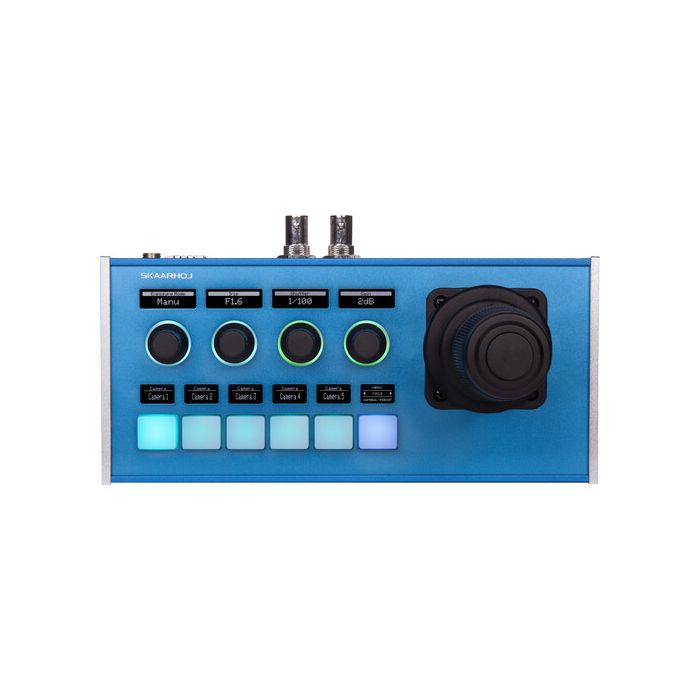

PTZ Fly - a compact controller featuring a full size three-axis joystick
Pan, tilt and rotate the handle to control your cameras. The superb OLED displays clearly show what camera settings you control and which preset you recall. With UniSketch OS, everything is possible. Customize it with a hall effect joystick or an SDI output for Blackmagic Micro Studio Camera control on a pan-tilt head.

Hall effect joystick
Upgrade to an industrial precision Hall effect joystick for increased ergonomic comfort and motion precision

SDI option
The SDI option adds a Blackmagic Arduino shield to the controller for reading and writing Camera Control Data

Compatibility
AIDA PTZ3 X20L
Lumens VC A50P
NewTek NDIHX-PTZ1
Pana AW-HEx
PTZOptics PT20X
Sony BRC-H900/BRC-X1000/SRG-300
VISCA Generic

Controls and Indicators
4x Backlit Encoder Knobs with OLED Displays
6x Programmable 4-Way Multifunction Keys with OLED Displays
Full-Size 3-Axis Hall Effect Joystick
SDI Input
SDI Output

Connectors
RJ45, Ethernet
Micro-USB, Programming
DC Power Input

Power Source
PoE IEEE802.3af, DC

Operating System
UniSketch

Dimensions
17.7 x 5.5 x 5.9" (45 x 14 x 15cm)
Weight
3.6 lbs (1.632kg)
