SKAARHOJ PTZ Fly

by Skaarhoj
Dostupnost: Isporuka 14-20 dana
SKU
PTZ-Fly-V1
  • PTZ Camera Control
  • Full-Size 3-Axis Joystick
  • 4 x Encoder Knobs with OLED Displays
  • 6 x Programmable Keys with OLED Displays
1.556,25 € 1.245,00 €

Sadržaj pakiranja

  • SKAARHOJ PTZ Fly Controller with SDI In/Out
  • 12V Power Supply
  • Micro-USB Programming Cable
  • Networking Cable

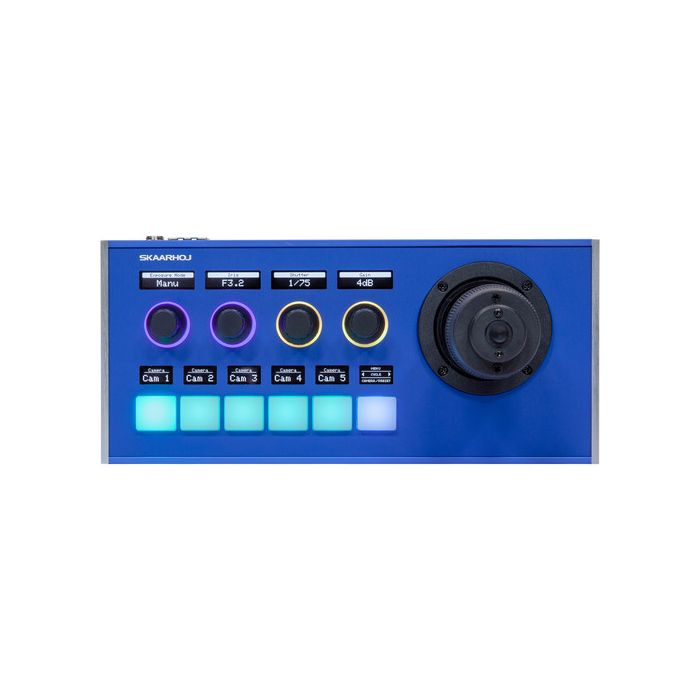

Get fingertip control of PTZ camera movement with the PTZ Fly with SDI I/O from SKAARHOJ. Featuring a full-size three-axis joystick, this compact controller makes it easy to pan, tilt, and rotate your cameras. Also featured are four backlit encoder knobs with wide-screen OLED displays and six programmable four-way multifunction keys for presets and camera selection. Additionally, this version of the PTZ Fly comes equipped with SDI input and output ports for Blackmagic Design camera control.

The PTZ Fly runs the SKAARHOJ-developed open-source UniSketch OS, which is user-programmable to fit specific workflows. PoE technology simplifies setup by enabling signals and power to travel via a single cable.

  • Four backlit encoder knobs with wide-screen OLED displays
  • Three-axis joystick
  • Six programmable four-way multifunction keys with bright OLED displays for presets and camera selection
  • SDI in/out ports for Blackmagic Design camera control
  • Slim, ergonomic console form factor
  • Ethernet with PoE (IEEE802.3af)
  • UniSketch OS
  • Works with a wide range of devices an systems including AIDA Imaging PTZ3-X2OL, Lumens VC-A50P, NewTek NDIHX-PTZ1, Panasonic AW-HEx, PTZOptics PT20X, and Sony BRC-Z700, BRC-H900, BRC-X1000 & SRG-300
SKAARHOJ PTZ Fly Specs
General

Control Interface 1 x RJ45 (LAN)
Other I/O 1 x USB Micro-B
Controls 4 x Backlit Knobs
6 x Programmable, Multifunction Keys
1 x 3-Axis Joystick
Power
PoE Support PoE 802.3af
Power Connectors 1 x Barrel / Coaxial
Physical
Dimensions 17.7 x 5.9 x 5.5" / 45 x 15 x 14 cm
Weight 3.6 lb / 1650 g
Packaging Info
Package Weight 2.84 lb
Box Dimensions (LxWxH) 9.1 x 5.9 x 5.7"
