SmallHD Ultra 10 Bolt 6 RX 750 V-Mount Kit
by SmallHD
Dostupnost:
Isporuka 7-10 dana
SKU
16-1002-VM

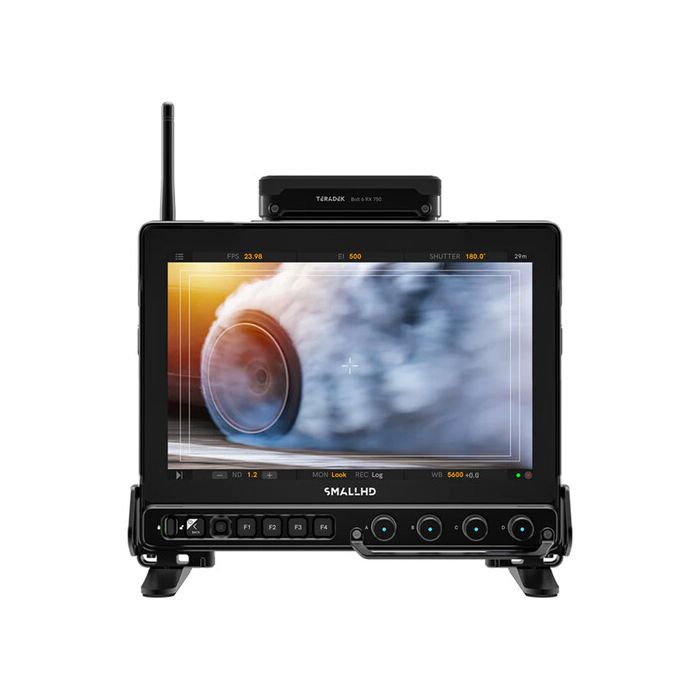

Integrate a large, ultra-bright monitor into your production with this ULTRA 10 Bolt 6 RX 750 Monitor from SmallHD.
7.245,00 €
5.796,00 €
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- SmallHD ULTRA 10 Bolt 6 RX 750 Monitor (V-Mount)
- SmallHD D-Tap to 2-Pin Power Cable (36")
- SmallHD Monitor Handles and Neck Strap
- SmallHD Ultra Clear Screen Protector for Ultra 10
- SmallHD Color Band Kit for Ultra 7 Bolt 6 RX (Multiple Colors)
- SmallHD Microfiber Cleaning Cloth
- V-Mount Battery Plate
- SD Card (8GB)
Integrate a large, ultra-bright monitor into your production with this ULTRA 10 Bolt 6 RX 750 Monitor from SmallHD. Boasting a 2000 cd/m² display for viewing in just about any indoor or outdoor environment, the 10" monitor features a 1920 x 1200 touchscreen QD-LCD, an integrated Bolt 6 receiver with a wireless range up to 750', HDMI 2.0, and 6G-SDI inputs/outputs supporting up to 4K30 resolutions. Easily control ARRI, Sony, and RED cinema cameras from the monitor thanks to the 5-pin USB and Ethernet control ports (requires separately available licenses and cables). The device powers via 2-pin LEMO ports using an optional battery attached to the integrated V-mount battery plate.
QD-LED Edge-Lit LCD Panel
The ULTRA 10 features an edge-lit QD-LED panel stack that diffuses and focuses the light through a quantum-dot film, ensuring high brightness, excellent image fidelity, color accuracy, and color uniformity. It's perfect for focus pullers, pursuit vehicles, director's cages, DITs, multicamera studios, and anyone who desires maximum flexibility from their monitor.
All-Weather Design
Built into a rugged, shock-resistant aluminum chassis designed to withstand production rigors, the ULTRA 10 is designated with an IP54 rating, protecting the display against harmful dust and water spray from all directions. All components and ports are fully sealed, it is impact resistant, and it can operate in extreme temperatures.
PageOS
PageOS is an advanced, page-based software toolset with an intuitive UI/UX that gives you full control over color, exposure, camera, LUTs, and more.
Built-In Wireless Support
The monitor features built-in wireless receiver technology compatible with the integrated Teradek Bolt 6 receiver.
Multifunction Controls
Simultaneously view and adjust crucial camera-control functions and PageOS tools with a camera-control interface anchored to every page. Four customizable encoder knobs let you change PageOS tools and settings on the fly with capacitive-touch, long-push, short-push, and rotary functionality. Assign workflow shortcuts to the custom-function buttons for software tools, switch inputs, adjust display brightness, and more.
Lens Control Overlays
With Teradek RT integration, view critical lens data on your monitor. Quickly create, edit, and delete visual marks on the focus scale, set on-screen limits, and even pinch-zoom the scale.
Multiview Functionality
View two camera feeds and use multiple tools pages all on screen at the same time, side by side.
Long-Range Signal Transmission
The ULTRA 10 Bolt 6 RX 750 integrates a Bolt 6 Series receiver, allowing you to wirelessly send the image from your camera up to 750' away.
| Display | |
| Panel Type | IPS-Type LCD |
| Display Size | 10.1" / 25.7 cm |
| Native Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Touchscreen | Yes |
| Maximum Brightness | 2000 nits / cd/m2 |
| Contrast Ratio | 1000:01:00 |
| Color Support | 16.7 Million Colors (8-Bit) |
| HDR Support | Yes |
| LUT Support | Yes |
| Image Controls | False Color, Focus Assist, Focus Peaking, Histogram, Vectorscope, Waveform, Zebra |
| Inputs/Outputs | |
| Video I/O | 1x BNC (6G-SDI) Input/Output |
| 1x BNC (6G-SDI) Input | |
| 1x HDMI 1.4 Output | |
| 1x HDMI 1.4 Output | |
| Embedded Audio | HDMI/SDI |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x LEMO 2-Pin Input |
| 1x LEMO 2-Pin Output | |
| Other I/O | 1x RJ45 (GPI) |
| 1x RJ45 (10/100 Mb/s Ethernet) | |
| 1x LEMO 5-Pin USB (Camera Control) | |
| Media/Memory Card Slot | Single Slot: SD (Unspecified Type) [LUT/Firmware Update Only] |
| Encryption | Yes |
| Wireless | |
| Wireless Range | 750' / 228.6 m |
| Wi-Fi | Unspecified Version |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | SDI |
| UHD 4K: 30/29.97/25/24/23.98 | |
| DCI 2K: 60/59.94/50/48/47.95 | |
| 1080p: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 720p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 576p: 50 | |
| 576i: 50 | |
| 480p: 60/59.94 | |
| 480i: 60/59.94 | |
| HDMI | |
| UHD 4K: 30/29.97/25/24/23.98 | |
| 1080p: 200/120/100/60/59.94/50/48/47.95/30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 200/120/100/60/59.94/50/30/29.97/25/24/23.98 | |
| 576p: 50 | |
| 576i: 50 | |
| 480p: 60/59.94 | |
| 480i: 60/59.94 | |
| Video Signal Conversion | HDMI to SDI |
| HDMI to SDI | |
| Power | |
| Input Power | 10 to 34 VDC at 2.5 |
| Battery | 1x V-Mount on Fixed Plate |
| Mounting | |
| Tripod/Accessory Mounting | Left |
| 1x Anti-Twist 1/4"-20 Female | |
| Right | |
| 1x Anti-Twist 1/4"-20 Female | |
| General | |
| Environmental Resistance | Weather-Resistant (IP54) |
