SmallRig Cage for Canon EOS R5 Mark II with Cooling Fan CF-R20EP 5092

by SmallRig
Dostupnost: Dostupno
SKU
SR-5092

Formfitting Camera Cage
Integrated Arca-Type Base, NATO Rail

145,00 € 116,00 €

Sadržaj pakiranja

  • SmallRig Cage for Canon EOS R5 Mark II with CF-R20EP Battery Grip

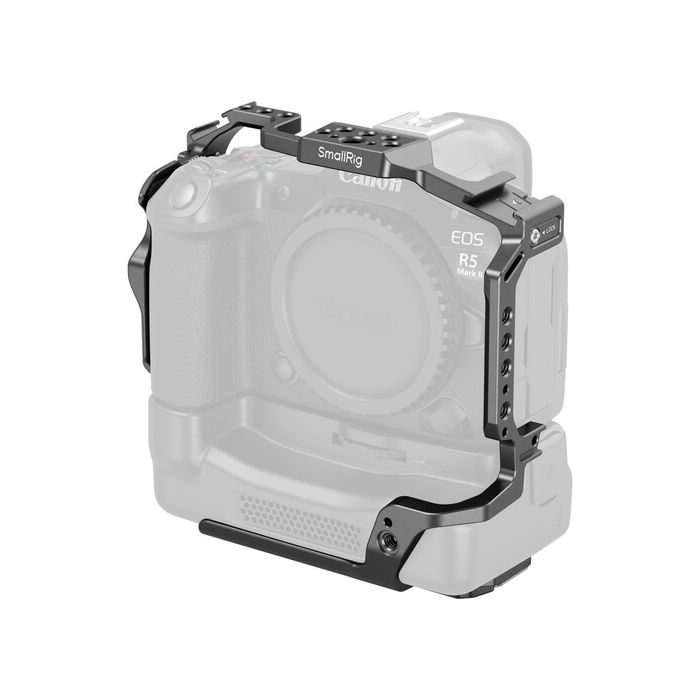

This lightweight aluminum Camera Cage from SmallRig protects and provides accessory mounting for your Canon EOS R5 Mark II camera with an attached CF-R20EP battery grip. This formfitting cage maintains access to all the camera's controls, battery, and SD card slots, and it features a variety of mounting options. The camera secures onto the cage via a three-point locking system that utilizes one 1/4"-20 screw at the bottom and two M3 screws on both sides, providing anti-twist stability. A screen protector is included for your rear display.

In addition to an integrated shoe mount, a side NATO rail, and multiple 1/4"-20 and 3/8"-16 accessory threads, the cage incorporates ARRI-style locating holes for preventing accessories from twisting when mounted, a QD (Quick Detach) socket, and three cold shoe mounts for even more options. The cage also has a built-in Arca-type quick release plate on the bottom for tripod mounting.

Compatibility and Mounting
  • Top handles
  • Side handles
  • Monitor mounts
  • Magic arm
  • Cold shoe mounts for microphones and LED lights
  • Compatible with DJI RS 2, RSC 2, RS 3, RS 3 Pro, RS 4, and RS 4 Pro stabilizers
  • Front 1/4"-20 thread compatible with the single-rod clamp
  • Slot for wrist straps
  • QD socket for shoulder straps
Support Type Cage
Grip Type No
Camera Compatibility Canon EOS R5 Mark II
Mounting
Battery Plate Type No
Accessory Mounting Top

1x Anti-Twist 3/8"-16 Female Thread

8x 1/4"-20 Female Thread
  Sides

6x 1/4"-20 Female Thread

2x Anti-Twist 1/4"-20 Female Thread
  Front

1x Anti-Twist 1/4"-20 Female Thread
Camera Mounting 1/4"-20 Male Screw
Tripod Mounting
1/4"-20 Female Thread, 3/8"-16 Female Thread, Built-In Arca-Type Plate
Shoe Mounting 3x Cold Shoe
Rosettes No
Cable Clamp No
Materials Aluminum Alloy
Dimensions
6.4 x 6 x 2.8" / 163 x 153.5 x 72 mm
Weight 0.4 lb / 183 g
Packaging Info
Package Weight 0.71 lb
Box Dimensions (LxWxH) 8.3 x 7.2 x 3.2"
