SmallRig x Caleb Pike VB212 mini V Mount Battery 4293
by SmallRig212Wh Lithium-Ion V-Mount Battery
Supports up to 10A Draw
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- SmallRig x Caleb Pike VB212 Mini V-Mount Battery
- USB-C Charging Cable (240W)

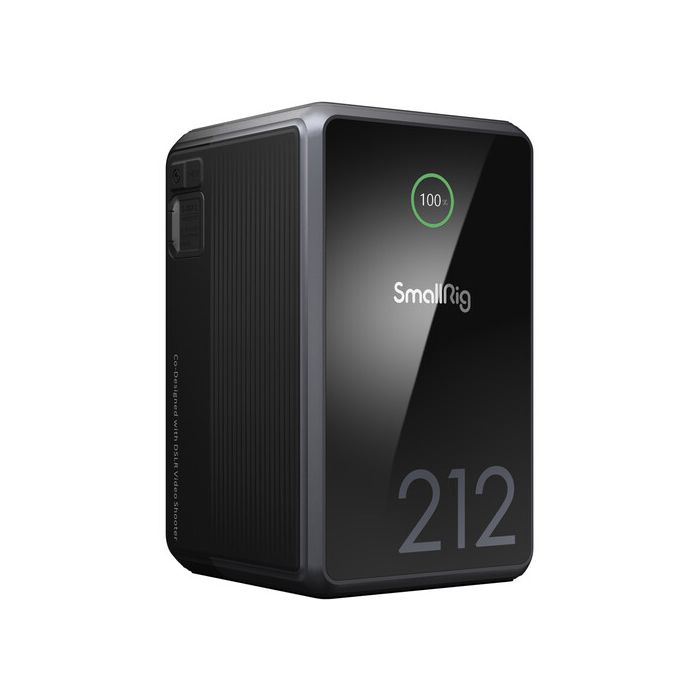

The x Caleb Pike VB212 Mini V-Mount Battery from SmallRig is an ultracompact, lightweight 212Wh capacity battery that can support up to a 10A draw with a nominal 14.76V output. This travel-friendly battery is suitable for powering handheld cameras, drones, and gimbals.
The VB212 provides multiple accessory ports, including one 14.8V D-Tap output, one 8 VDC barrel output, one 12 VDC barrel output, one USB-C output, and one USB-A output for powering various accessories, cameras, or mobile devices. The battery can be charged using a standard V-mount charger, an optional D-Tap charger, or via the USB-C input/output with a PD fast charger. A built-in bright OLED display shows the remaining battery capacity and status.
Features
- Intelligent BMS chip supports 140W (max) fast charging; fully charged in 2.5 hours
- High-capacity LG battery cell endures repeated charging and discharging; safe and stable
- Highly integrated design, ultracompact, and travel friendly
- Multiple interfaces: Two USB-C ports, two D-Tap ports, a USB-A port, an 8 VDC barrel output, and a 12 VDC barrel output
- Each interface adopts a parallel circuit to allow simultaneous USB-C and USB-A fast charging
- Aluminum, silicone, TPU, and PC V0 materials; four layers of aluminum frames on the inside with silicone coating on the outside make the battery robust, drop proof, heat resistant, and flame retardant
- Durable, scratch-resistant plastic and acrylic front cover
- TFT display shows battery status clearly and accurately
Charging Protocols
- V-mount: 14.76V, 19A (max.)
- D-Tap 1 : 14.76V, 10A (max.)
- D-Tap 2: 14.76V, 6A (max.)
- 8V output: 8V, 3A (max.)
- 12V output: 12V, 3A (max.)
- USB-C1 / USB-C2 PD3.1 / QC2.0 / QC3.0 / PPS / AFC / DCP-1.5A / APPLE-2.4A
- USB-A QC2.0 / QC3.0 / AFC/ DCP-1.5A / APPLE-2.4A
| Mount / Series Type | V-Mount |
| Chemistry | Lithium-Ion |
| Battery Capacity | 212.54 Wh |
| Output Voltage | 14.76 VDC |
| Maximum Load | 212 W, 10 A |
| Accessory I/O |
2x USB-C Input/Output 140 W Regulated
|
|
1x USB-A Input/Output 5 V / 3 A, 9 V / 3 A, 12V / 3A, 15V / 3A, 20 V / 5 A, 28 V / 5 A Regulated
|
|
|
2x D-Tap / P-Tap Output 14.76 V, 6 A Regulated
|
|
|
1x Barrel 2.1 mm Output 8 V, 3 A Regulated
|
|
|
1x Barrel 2.5 mm Output 12 V, 3 A Regulated
|
|
| USB Output | 5 V, 3 A |
| 9 V, 3 A | |
| 12 V, 3 A | |
| 15 V, 3 A | |
| 20 V, 5 A | |
| 28 V, 5 A | |
| Charging Voltage | 11.2 VDC |
| Operating Temperature | 5 to 140°F / -15 to 60°C |
| Charging Temperature | 32 to 122°F / 0 to 50°C |
| Certifications | FCC, CE, RoHS, PSE, RCM |
| Environmental Protection | No |
| Dimensions (W x H x D) | 5.1 x 3.3 x 3.1" / 130 x 83 x 80 mm |
| Weight | 2.89 lb / 1.31 kg |
| Packaging Info | |
| Package Weight | 3.585 lb |
| Box Dimensions (LxWxH) | 6.8 x 5.1 x 4.6" |
