SmartSystem Matrix One Chimera Bundle Vlock

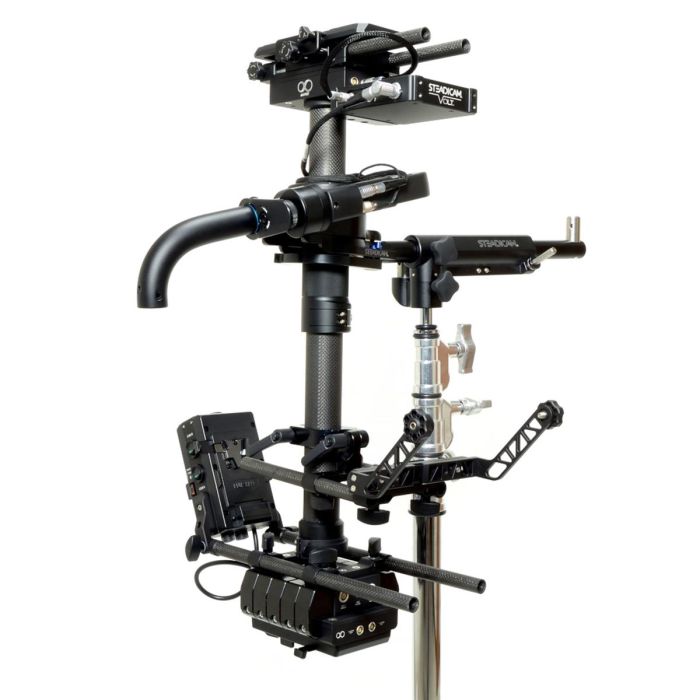

- Matrix Sled Chimera -
Various mounting options for Volt brain
• Under top stage junction box with optional bracket and top stage rods for additional use
• Directly on top stage with in bundle bracket to be extremely close to camera
• Directly on top stage as close as possible to camera with optional brackets and carbon fiber rods for a safe and decoupled connection for your low mode monitor


It is a fact that the best performance can only be obtained on gimbals designed to natively integrate the Volt system.

To grant the most integrated experience and best stabilization, Matrix Sled CHIMERA is genetically equipped with M2 gimbal designed by Steadicam.

Dedicated or shared power solutions
Every brushless gimbal user knows that motors are power hungry and if underpowered, vibrations or unwanted glitches are just behind the corner.

Thanks to the dedicated power line present on every Matrix Sleds the vibrations perceived on the gimbal due to insufficient power are
an ancient memory.

SmartSystem recommends, whenever possible, to prefer the dedicated power path via C-battery.

The CHIMERA version is the ultimate tool for Cinema cameras.

The perfect fusion between all the specs of Matrix Sled EXTREME and the technology offered by Volt system from STEADICAM

As for the EXTREME sled, it can be possible to balance the heavier cameras thanks to additional counterbalance weights included.

The Micrometric non floating head backlash compensated topstage give to you a super stable Camera mount.

Thanks to the Monitor LCD holder on separate rods it is possible to achieve maximum stiffness and flexibility.

The Innovative Battery management based on V-Lock Batteries slots let you choose to operate +12V or 24V with an extra C-Battery Slots.

A 1.575" / 40mm Carbon fiber Telescopic center post grants the ultimate rigidity of the system defining a total weight of 5.5kgs without counterbalance weights.


- Arm X1 -
Designed, engineered, manufactured and hand built exclusively in Italy.

Every single part of Arm X1 is CNC milled inside our facility from the starting stock to the end shape. There are various Aluminum alloys out there but only AL7075 Ergal alloy, the most performing one, was used for Arm X1. Ergal 7075 aluminum guarantees performance similar to that offered by carbon steel at a fraction of the weight. For this reason it is used on high performance automotive, aerospace and robotics industry. Special alloys can lead to special dimensions. Arm X1 is currently the slimmest arm on the market with an outstanding load capabilities.

Tons of Features within an Unique Design
Different design, different approach to problems... like the Arm post system, thought to be reliable and rigid with plenty of options available.

Mathematically speaking, the best answer that a system can give to an external stimulus is what is called "Critically damped" one. The tricky part is this answer is strictly connected to the load applied and to the "force" of the springs used to counterbalance that load. So the question is: How can I get that?

The patented design of XTune, let you tune your ArmX1 to answer exactly as you prefer interacting as a "selective multiplier" of the force of the springs installed.

From super smooth to very responsive... you have the control!

The set life is frantic and setting up an arm for a new load could be time consuming, especially when the new setup is dramatically different respect to the previous shot...

The use of compression springs and the unique leverism obtained with XTune led us to embrace the power of the springs inside the canisters...The result is a design that give to you plenty of space be canisters so no more accidentally stuck clothes, cables and you know.... fingers!

Based on industry standard mating block with a specific attention to right-handed or left-handed operators as well as front mount and backmount vest.

Despite the tiny dimensions, Arm X1 can lift 32kg (70.4 lbs) with an ultimate maximum payload of 34kg (74.9 lbs). The maximum boom range is 728mm (28.5"). Ranging from 6kg (13.2lbs) up to 34kg (74.9lbs), you can definitely fly your current or future setup.

Since March 2021, all the ArmX1 will be equipped with DYNASPRING exclusive Patent Pending Technology that dynamically change and adapt the overall elastic response of the installed spring all over the boom range ensuring an extremely soft operation.

The Suitable Protection for a Valuable Product
A custom resin case with Military specs like DEF STAN 81-41 / STANAG 4280, ATA300 and IP67 is included to carry safely, on your next adventure, your brand new Arm X1.


- Vest Lite -
Engineered around a proven design and based on top quality materials.

Especially for female operators, the possibility to move the thoracic plate on the fly means the ability of the vest to perfectly adapt itself to the female body. Every single plate can be moved independently ensuring the the maximum comfort for operators. The shape of the hip pad and hip support ensures maximum leg freedom and, at the same time, stability for the vest.

The thoracic pads can be stacked in order to give to the operator the best possible comfort. Based on Industry Standard Mating block made from solid Ergal T7075 Aluminum. The ratchet system let you increase the tightening force progressively. The passage from Regular to Goofy operation is fast and straightforward.

The Black/Yellow handle on the back was designed not only to ensure a safe grab for the operator assistant, but it can be used as safety handle in emergency cases. Every textile part can be detached from the Vest and can be easily washed. The 100% cotton lining ensures strengths and durability.

Every component of Vest lite is not molded but milled from solid aluminum, shoot peened and hard anodized to ensure the maximum durability. Extensive tests and studies were made to grant strength to every component but above all to ensure the maximum lightness.

With only 2.9kg (6.4lbs) of weight, Vest lite is most probably the lightest Vest on the market today. A padded backpack is included in the package to carry safely your new vest.


- Hard Case -
Trolley based on Explorer Cases 7745 modified in order to allow the protection for a SMARTCAM ARM (X-LITE or X1) and for a SMARTCAM SLED (MATRIX series).

SmartSystem Matrix One Chimera Bundle Features

• Arm X1 Features
• Double section articulated stabilization arm with an ultimate payload of 74.9 lbs (34kg) based on an exclusive Patented Design
• Extremely light and compact: it's one of the smallest and lightest stabilizer arm in the market (only 1.77" (45mm) of width)
• Exclusive X-Tune system allows the operator to set up Arm X1 to obtain the correct dynamic response for its needs
• Completely milled from highest quality Ergal 7075 aluminum, shot peened and hard anodized for ultimate strength and lightness (only 9.92 lbs (4.5kg) in its heavier configuration)
• Equipped with Patent Pending DynaSpring Technology that dynamically adapt the answer of the springs all over the boom range
• Perfectly compatible with every type of professional stabilizer Vest or Sled on the market
• Matrix Sled Chimera Features
• As for the EXTREME sled, it can be possible to balance the heavier cameras thanks to additional counterbalance weights included
• The Micrometric non floating head backlash compensated topstage give to you a super stable Camera mount
• Thanks to the Monitor LCD holder on separate rods it is possible to achieve maximum stiffness and flexibility
• The Innovative Battery management based on Double V-lock Batteries slots let you choose to operate +12V or 24V with an extra C-Battery Slots
• A 1.575" Carbon fiber Telescopic center post grants the ultimate rigidity of the system defining a total weight of 5.5kgs without counterbalance weights
• Vest Lite Features
• Great comfort and perfect fit for operators of any height or weight, male or female
• Ergonomic and flexible design. Reduced weight: just 6 lbs (2.7kg)
• Buckle system for quick tighten and release operation
• Memory foam padding
• Balanced weight distribution
• Removable and washable textile parts
• Standard Arm connector. Compatible with all Professional Arms in the market
• Transport Bag included
• Hard Case Features
• Polypropylene outer case
• Foam rubber inner padding
• Transport handle
