SmartSystem Matrix One Extreme Bundle Vlock

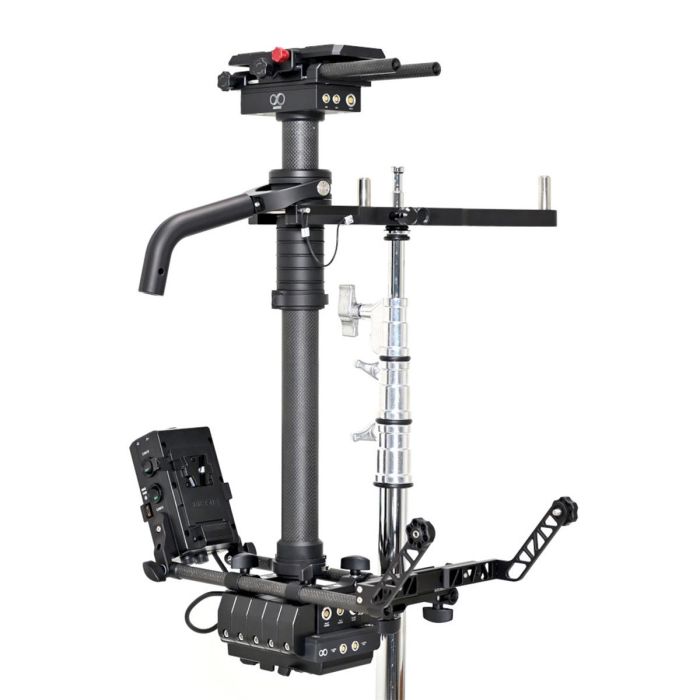

- Matrix Sled Extreme -
Matrix Sled Extreme turns Static Balancing and Dynamic Balancing into child's play. The EXTREME version is perfect for Cinema cameras, even heavier models, thanks to the additional counterbalance weights included. Its ultra fluid gimbal and micrometric non-floating head are backlash compensated. Its Monitor LCD holder is on separate rods for maximum strength and flexibility. Matrix Sled Extreme has an innovative battery management system based on Double Vlock Batteries slots for +12V or 24V operation with additional C-Battery Slots. Its 40mm Carbon fiber Telescopic center post has a total weight of 12.13 lbs (5.5kg) without counterbalance weights. Matrix Sled Extreme is convenient to transport with its included hard case.

Matrix is Tool Free
• You won't need to use keys any longer to set up your Matrix Sled
• Has the operating speed you require
• The ability to make slight movements is essential. The use of an exclusive locking levers system and knobs with an ergonomic handle guarantee speed, accuracy and reliability.

1.5" Carbon Telescopic Post (40mm) - Tool-Free
First rate carbon telescopic post with a 40mm diameter to ensure great strength while remaining lightweight.

Ultra-Fluid and Tool-Free Professional Gimbal
The gimbal, as well as being surprisingly fluid, has an innovative locking clamp, minimizing the force necessary for fastening.

Smarthead
Solutions arise from needs. The Matrix Sled's smarthead allows the operator to disconnect integrally the sled's head and create new configurations. Thanks to this technology, you can keep your sled up to date and prepared to accommodate future releases by SmartSystem. You can also customize the head according to your specific needs.

Monitor Rods Kit
• First rate carbon rods kit. Apart from adjusting the distance between the monitor and the post and its position, you can also tilt it on
• To guarantee a sold level of support at any angle, an INDExED articulation system is provided. There won't be the slightest rotation of the monitor holder even in the most challenging working conditions

Smartpack. Innovative Floating Battery Pack
You choose what you want to power and how. For cinema as well as for broadcast, how to power the different components, according to their specific function, has been a problem for many operators who must combine lightness and efficiency. SmartPack let you choose what you want to power and how.

The two installed batteries have separate circuits and thanks to their easy hemispheric buttons provided with a LED signal you can choose:
• To power the camera from battery A or B or from both the batteries for a longer duration
• To power the additional accessories from battery A or B or from both of them
• To power the camera with 24V (either battery A or B must be installed). The XLR connector, thanks to its high-brightness LED, will notify when the system has reached 24V

SMARTPACK also has an indexed system for adjusting the battery pack inclination. Extreme strength and safety is guaranteed, even when using the heaviest batteries.

Dedicated Wiring
Each component of your equipment could potentially require a particular voltage in order to work properly. Most commercial sleds have only one wiring in order to connect your battery pack from the lower side of the sled to the upper one. Matrix Sled makes it possible to connect up to three different voltages from your batteries to the component that needs to be powered up. This translates into complete freedom and versatility.

C Battery Included
MATRIX SLED EXTREME is equipped with an additional C Battery plate giving more power and flexibility to your setup.

High Quality Connectors
From the original Neutrik XLR to the BNC connector with gold plated contacts, the power and the video signal (Full-HD-HD-SDI) are guaranteed with the absence of any insertion loss.


- Arm X1 -
Designed, engineered, manufactured and hand built exclusively in Italy.

Every single part of Arm X1 is CNC milled inside our facility from the starting stock to the end shape. There are various Aluminum alloys out there but only AL7075 Ergal alloy, the most performing one, was used for Arm X1. Ergal 7075 aluminum guarantees performance similar to that offered by carbon steel at a fraction of the weight. For this reason it is used on high performance automotive, aerospace and robotics industry. Special alloys can lead to special dimensions. Arm X1 is currently the slimmest arm on the market with an outstanding load capabilities.

Tons of Features within an Unique Design
Different design, different approach to problems... like the Arm post system, thought to be reliable and rigid with plenty of options available.

Mathematically speaking, the best answer that a system can give to an external stimulus is what is called "Critically damped" one. The tricky part is this answer is strictly connected to the load applied and to the "force" of the springs used to counterbalance that load. So the question is: How can I get that?

The patented design of XTune, let you tune your ArmX1 to answer exactly as you prefer interacting as a "selective multiplier" of the force of the springs installed.

From super smooth to very responsive... you have the control!

The set life is frantic and setting up an arm for a new load could be time consuming, especially when the new setup is dramatically different respect to the previous shot...

The use of compression springs and the unique leverism obtained with XTune led us to embrace the power of the springs inside the canisters...The result is a design that give to you plenty of space be canisters so no more accidentally stuck clothes, cables and you know.... fingers!

Based on industry standard mating block with a specific attention to right-handed or left-handed operators as well as front mount and backmount vest.

Despite the tiny dimensions, Arm X1 can lift 32kg (70.4 lbs) with an ultimate maximum payload of 34kg (74.9 lbs). The maximum boom range is 728mm (28.5"). Ranging from 6kg (13.2lbs) up to 34kg (74.9lbs), you can definitely fly your current or future setup.

Since March 2021, all the ArmX1 will be equipped with DYNASPRING exclusive Patent Pending Technology that dynamically change and adapt the overall elastic response of the installed spring all over the boom range ensuring an extremely soft operation.

The Suitable Protection for a Valuable Product
A custom resin case with Military specs like DEF STAN 81-41 / STANAG 4280, ATA300 and IP67 is included to carry safely, on your next adventure, your brand new Arm X1.


- Vest Lite -
Engineered around a proven design and based on top quality materials.

Especially for female operators, the possibility to move the thoracic plate on the fly means the ability of the vest to perfectly adapt itself to the female body. Every single plate can be moved independently ensuring the the maximum comfort for operators. The shape of the hip pad and hip support ensures maximum leg freedom and, at the same time, stability for the vest.

The thoracic pads can be stacked in order to give to the operator the best possible comfort. Based on Industry Standard Mating block made from solid Ergal T7075 Aluminum. The ratchet system let you increase the tightening force progressively. The passage from Regular to Goofy operation is fast and straightforward.

The Black/Yellow handle on the back was designed not only to ensure a safe grab for the operator assistant, but it can be used as safety handle in emergency cases. Every textile part can be detached from the Vest and can be easily washed. The 100% cotton lining ensures strengths and durability.

Every component of Vest lite is not molded but milled from solid aluminum, shoot peened and hard anodized to ensure the maximum durability. Extensive tests and studies were made to grant strength to every component but above all to ensure the maximum lightness.

With only 2.9kg (6.4lbs) of weight, Vest lite is most probably the lightest Vest on the market today. A padded backpack is included in the package to carry safely your new vest.


- Hard Case -
Trolley based on Explorer Cases 7745 modified in order to allow the protection for a SMARTCAM ARM (X-LITE or X1) and for a SMARTCAM SLED (MATRIX series).

This product can only be shipped to U.S. addresses.

SmartSystem Matrix One Extreme Bundle Features

• Arm X1 Features
• Double section articulated stabilization arm with an ultimate payload of 34kg (74.9lbs) based on an exclusive Patented Design
• Extremely light and compact: it's one of the smallest and lightest stabilizer arm in the market (only 45mm of width)
• Exclusive X-Tune system allows the operator to set up Arm X1 to obtain the correct dynamic response for its needs
• Completely milled from highest quality Ergal 7075 aluminum, shot peened and hard anodized for ultimate strength and lightness (only 4.5kg in its heavier configuration)
• Equipped with Patent Pending DynaSpring Technology that dynamically adapt the answer of the springs all over the boom range
• Perfectly compatible with every type of professional stabilizer Vest or Sled on the market
• Matrix Sled Extreme Features
• The EXTREME version is perfect for Cinema cameras, even the heavier ones thanks to additional counterbalance weights included
• Ultra fluid Gimbal, Micrometric non floating head backlash compensated. Monitor LCD holder on separate rods for maximum stiffness and flexibility
• Innovative Battery management based on Double V-lock Batteries slots for +12V or 24V operation with an extra C-Battery Slots
• 575" (40mm) Carbon fiber Telescopic center post for a total weight of 5.5kgs without counterbalance weights
• Vest Lite Features
• Great comfort and Perfect fit to any operator height and weight, male or female
• Most probably, the lightest vest on the market: just 2.9kgs (6.4 lbs)
• Buckle system for quick tighten and release operation
• Memory foam padding
• Balanced weight distribution
• Removable and washable textile parts
• Standard Arm connector. Compatible with all Professional Arms on the market
• Hard Case Features
• Polypropylene outer case
• Foam rubber inner padding
• Transport handle
